Electric fan missing, need help!!!
#1
Newbie
Thread Starter
Join Date: Feb 2012
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Electric fan missing, need help!!!
Hi all,
I have a 1988 Jeep Comanche 4x4 with the 4.0L in it. Auto trans with A/C (not working). I bought this thing back in december and have done a LOT of work to fix it up. When I got this thing it came with no electric fan and a bunch of goofy wiring from the previous owners. I have sorted through a lot of that but I still need to locate the wires for my electric fan. I haven't bought one yet, but there appears to be no wires hangin out anywhere that would be used for this. There is a 2 post female plug on the thermostat housing that is not connected to anything, but this has no power to it so it can't be for the fan can it? If anyone can give me location, wired colors a picture or 2, anything would help. I appreciate your help and look forward to hearing back.
Thanks
-Paul-
I have a 1988 Jeep Comanche 4x4 with the 4.0L in it. Auto trans with A/C (not working). I bought this thing back in december and have done a LOT of work to fix it up. When I got this thing it came with no electric fan and a bunch of goofy wiring from the previous owners. I have sorted through a lot of that but I still need to locate the wires for my electric fan. I haven't bought one yet, but there appears to be no wires hangin out anywhere that would be used for this. There is a 2 post female plug on the thermostat housing that is not connected to anything, but this has no power to it so it can't be for the fan can it? If anyone can give me location, wired colors a picture or 2, anything would help. I appreciate your help and look forward to hearing back.
Thanks
-Paul-
#2
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
FWIW, factory standard cooling on non-a/c equipped XJs consisted of the belt driven mechanical fan only. If all cooling system components are in top notch condition, the 1 fan should be adequate. When u get the efan wiring figured out, u'll have factory HD cooling.
#3
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,525 Likes
on
1,237 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
2 post female plug on the t/stat housing tells me it's a later model housing. Does your radiator have a cap on it?
#4
Newbie
Thread Starter
Join Date: Feb 2012
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Originally Posted by cruiser54
2 post female plug on the t/stat housing tells me it's a later model housing. Does your radiator have a cap on it?
#5
Newbie
Thread Starter
Join Date: Feb 2012
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Originally Posted by djb383
FWIW, factory standard cooling on non-a/c equipped XJs consisted of the belt driven mechanical fan only. If all cooling system components are in top notch condition, the 1 fan should be adequate. When u get the efan wiring figured out, u'll have factory HD cooling.
#6
CF Veteran
Join Date: Dec 2011
Location: Pasadena, MD
Posts: 4,006
Likes: 0
Received 1 Like
on
1 Post
Year: 1987
Model: Wagoneer
Engine: Renix 4.0
the relay that controls the electric fan (which is triggered by the A/C being on max, or the sensor in the radiator (in front of the airbox) is to the right of the airbox. if need be i can take a pic of where it is.
Trending Topics
#8
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,525 Likes
on
1,237 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#9
Newbie
Thread Starter
Join Date: Feb 2012
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Originally Posted by cruiser54
My thoughts exactly.
Is there a sensor in the radiator in front of the airbox with a wiring pigtail on it?
#10
Newbie
Thread Starter
Join Date: Feb 2012
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Originally Posted by 'Manche

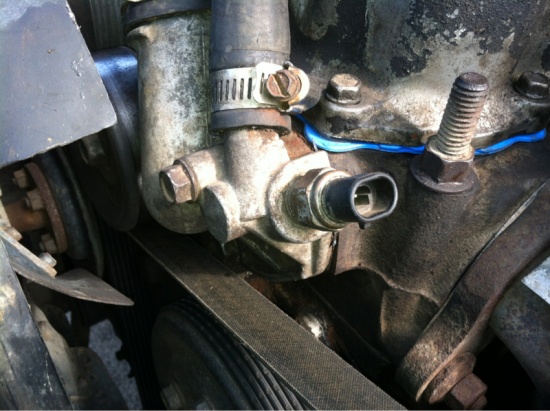

There is no sensor or wires that I can see in front of the air box. Here are a couple pictures of what I'm working with
#14
Newbie
Join Date: Feb 2012
Location: Vancover Island
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989 Laredo
Model: Cherokee
Engine: 4L High Output
I have a 89 and on mine there was a black plug under my air box it was super melted and I looked into it and it was for my electrical fan and only the electrical fan, just rewired it to a switch much nicer
#15
Newbie
Thread Starter
Join Date: Feb 2012
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Originally Posted by jakbob
there should be a relay on the drivers side of the engine bay, between the air box and fender.
