DRL Trigger?
#1
Member
Thread Starter
Join Date: Jan 2012
Location: WA
Posts: 204
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
DRL Trigger?
Does anyone know what/where the Daytime Running Light module is triggered by? I'd like to re-wire my fog lights to act as DRL's, but since my '99 was not factory equipped with DRL's or fog lights I'm essentially starting from scratch but I'd like to use any/all OEM wiring that may exist... Thanks for any info!
#3
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II

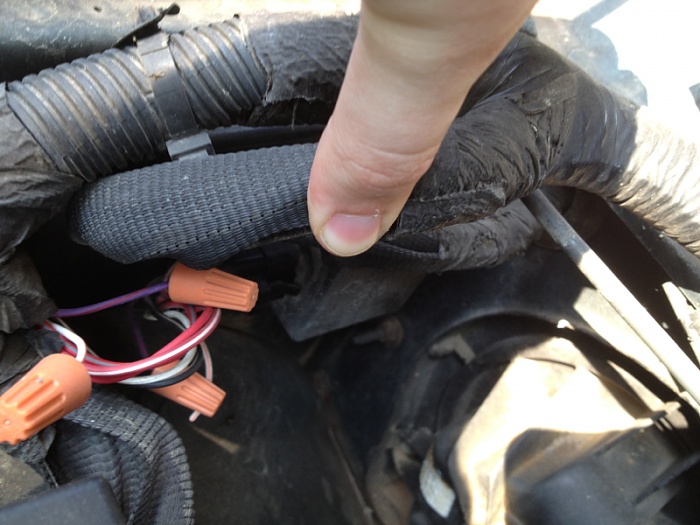

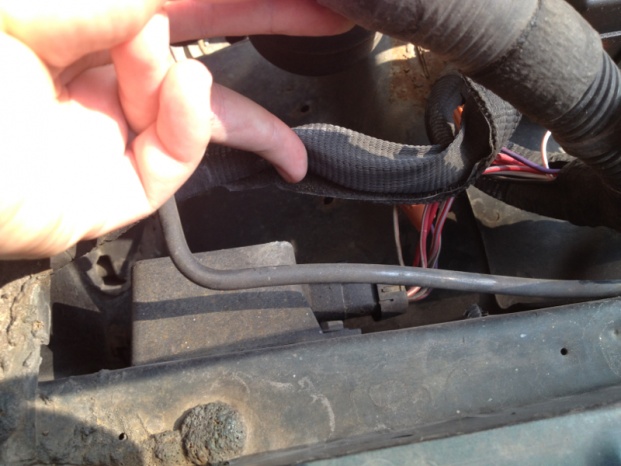

Nope. Those are parking lights. Daytime running lights are run by a separate module that sits on the passenger side fender. They send juice to the headlights based on input from the Vehicle Speed Sensor (speedo). Standard equipment up here in Canadiana and elsewhere. Not surprising if a WA Jeep has em.
The way the module works is to send low voltage to the lowbeam filament in the headlamps, when the vehicle is in motion, and the high beams are NOT selected. Selecting the high beams will turn em off. The fog relay involvement is that the factory fogs also get killed when high beams are on. I disabled mine when I upgraded my headlight harness as the low voltage was pissing off the Putco relays, but there's no reason you couldn't just use the module to run DRLs with some other light.
The way the module works is to send low voltage to the lowbeam filament in the headlamps, when the vehicle is in motion, and the high beams are NOT selected. Selecting the high beams will turn em off. The fog relay involvement is that the factory fogs also get killed when high beams are on. I disabled mine when I upgraded my headlight harness as the low voltage was pissing off the Putco relays, but there's no reason you couldn't just use the module to run DRLs with some other light.
#5
Member
Thread Starter
Join Date: Jan 2012
Location: WA
Posts: 204
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
VSS signal... That's what I was after!! Thank you! So now I need to dive in and verify if any of that wiring exists in mine, since it was not factory equipped with DRL's. If I can simply plop in the module and then make my own harness from the module output, I'll be set!!
#6
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
I don't think the harness was on models that were not equipped from the factory. Big reason being that Highbeam Indicator light in the dash. If you unplug the DRL module on mine that little blue light doesn't work anymore, and neither does the fog cut-off. lol
#7
Moderator of Jeeps
Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
So, I don't know the wiring, but there is probably a ground preventing the DRLs and Highs from being active at the same time.
Trending Topics
#8
Member
Thread Starter
Join Date: Jan 2012
Location: WA
Posts: 204
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
OK so this module/harness... where should it be physically located? I had originally assumed it was just a relay type module that plugged into a slot in the PDC, but after some very brief research is sounds like it may be an actual stand-alone harness and connector somewhere in the engine compartment??
#9
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Vehicles with DRLs or factory fogs often have an added ground for functionality. I tried to install an upgraded light harness (like Putco) in my Camaro, but it wouldn't work properly because of my factory fogs.
So, I don't know the wiring, but there is probably a ground preventing the DRLs and Highs from being active at the same time.
So, I don't know the wiring, but there is probably a ground preventing the DRLs and Highs from being active at the same time.
OK so this module/harness... where should it be physically located? I had originally assumed it was just a relay type module that plugged into a slot in the PDC, but after some very brief research is sounds like it may be an actual stand-alone harness and connector somewhere in the engine compartment??
#11
CF Veteran
Join Date: Dec 2012
Location: York, PA
Posts: 4,169
Likes: 0
Received 6 Likes
on
6 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Vehicles with DRLs or factory fogs often have an added ground for functionality. I tried to install an upgraded light harness (like Putco) in my Camaro, but it wouldn't work properly because of my factory fogs.
So, I don't know the wiring, but there is probably a ground preventing the DRLs and Highs from being active at the same time.
So, I don't know the wiring, but there is probably a ground preventing the DRLs and Highs from being active at the same time.
Since I hate the factory fog setup and didn't feel like dealing with that mess, I decided to just pull that fog relay and be done with it. Put my fogs on my car instead--shooting for a light bar w/ dedicated harness/relay in the future for the Jeep.
#12
Member
Thread Starter
Join Date: Jan 2012
Location: WA
Posts: 204
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L

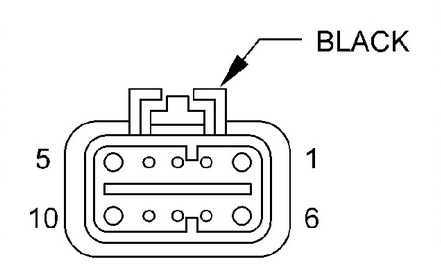

I would greatly appreciate that! I have found a pigtail harness next to the PDC, and it's got a "plug" in it to keep the terminals clean. It's only got 3-wires on it though, but one of them is white/orange, which may be the VSS signal wire according to the diagrame above... Fingers crossed on that, as I can use that to trigger a relay and turn on my fogs
#14
Senior Member
Join Date: Jul 2012
Location: middleburg fl
Posts: 860
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
I would greatly appreciate that! I have found a pigtail harness next to the PDC, and it's got a "plug" in it to keep the terminals clean. It's only got 3-wires on it though, but one of them is white/orange, which may be the VSS signal wire according to the diagrame above... Fingers crossed on that, as I can use that to trigger a relay and turn on my fogs
http://www.parts-express.com/pe/show...pla:sweatdrop:
#15
Junior Member
Join Date: Jul 2013
Location: Great White North
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
noisy relays and blue high beam indicator
Props to the fella that runs jeep-xj.info
