Drilling holes under air box
03-31-2010, 08:07 PM
#1
Junior Member
Thread Starter
Join Date: Mar 2010
Location: San Antonio, TX
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Drilling holes under air box

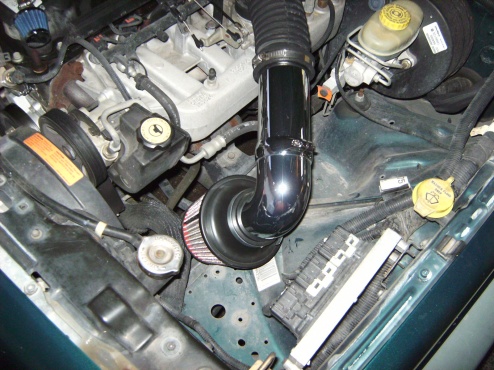

Hey all! Do you think If I was to make more holes in the area of where the stock airbox was, I'd get better airflow. Or maybe cut out a lot of that area?
03-31-2010, 08:11 PM
#2
Member
Join Date: Jan 2010
Location: St Augustine, Fl
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 Power Tech
Hot Air
You need a shield between the engine and the air filter, these actually get more hot air than the original air box.
03-31-2010, 08:13 PM
#3
Member
Join Date: Mar 2010
Location: Oak Hills
Posts: 177
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 I6 K&N, Flowmaster, accel yellow, 703 injectors, SS fuel lines routed through CAI
Buy a heat shield.
Or make one from sheet metal/thick plexi/etc.
Trick is to keep the hot exhaust gasses from entering the IAT or CAI.
Or make one from sheet metal/thick plexi/etc.
Trick is to keep the hot exhaust gasses from entering the IAT or CAI.
03-31-2010, 08:14 PM
#5
Junior Member
Thread Starter
Join Date: Mar 2010
Location: San Antonio, TX
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
yeah im going to picking up some sheet metal and making one soon. But you think I should still open up that area some what?
thnx!
thnx!
03-31-2010, 08:16 PM
#6
Junior Member
Thread Starter
Join Date: Mar 2010
Location: San Antonio, TX
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
yeah maybe water being splashed up wouldnt be so good. Ill make the heat shield and leave the body alone. thanx all!
03-31-2010, 08:20 PM
#7
Member
Join Date: Mar 2010
Location: Oak Hills
Posts: 177
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 I6 K&N, Flowmaster, accel yellow, 703 injectors, SS fuel lines routed through CAI
Yea. Your not gonna be able to build a ram air by drilling holes.
and the intake doesn't suck in enough air to cause a pressure drop in that area.
Just keep that hot air out!
and the intake doesn't suck in enough air to cause a pressure drop in that area.
Just keep that hot air out!
Trending Topics
03-31-2010, 09:06 PM
#9
CF Veteran
03-31-2010, 09:23 PM
#10
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
03-31-2010, 09:35 PM
#11
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Any sheet metal or metal tube in or close to the air intake will become a heat sink which absorbs heat which raises the intake air temp. Not good for performance and main reason the factory unit is all plastic - less heat transferred to the intake air.
03-31-2010, 10:08 PM
#12
Seasoned Member
Join Date: Feb 2010
Posts: 278
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I think you might want to read that again...
04-01-2010, 05:41 AM
#15
Junior Member
Join Date: Oct 2009
Posts: 74
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 I6
Might want to consider cutting some of the metal away that is between the headlight and the radiator. Going from the edge closest to the rad you can cut maybe 1.5" or more of metal away to open up the front a little bit. If you don't go bumper deep in water/mud, the plastic surrounding the headlight provides a good bit of splash protection.
