Door Check Woes
Good morning Cherokeeforum!

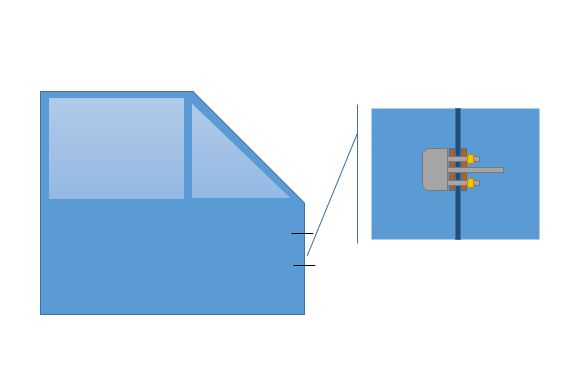

I'm hoping someone can help me get to the bottom of my door check woes. When I purchased my fun little money pit Wagoneer, the driver's side door check was non-functional. I didn't think much of it because of all the other issues at the time. But after awhile, that swinging door got to me. That said, I did some investigating and noticed that not only was the original door check mechanism broken, but the actual mount itself had torn itself free. Rather than pull the whole door off and weld it up, I elected to just hammer the piece back into alignment and then sandwich the mounting bolts of the new Dorman door check with a couple of pieces of drilled aluminum flat bar stock on either side of the door panel for added strength and stress distribution (top and bottom to maintain alignment of the check arm, see the orange in the picture to better describe). Anyway, long story short, this solution provided me with a working door check for about three months until last night when the door got stuck and the door check mechanism broken again. I'm reaching out to Dorman for a warranty replacement, but I just can't understand why I'm having such a rough go of it with the door checks in this truck. The door swings fine, isn't loose on the hinges, and is properly aligned with the body/frame. Can anyone offer some advice? Do I need to grease or oil the door check before installation? I'm really quite perplexed by what I thought was a pretty easy to fix issue.
I'm hoping someone can help me get to the bottom of my door check woes. When I purchased my fun little money pit Wagoneer, the driver's side door check was non-functional. I didn't think much of it because of all the other issues at the time. But after awhile, that swinging door got to me. That said, I did some investigating and noticed that not only was the original door check mechanism broken, but the actual mount itself had torn itself free. Rather than pull the whole door off and weld it up, I elected to just hammer the piece back into alignment and then sandwich the mounting bolts of the new Dorman door check with a couple of pieces of drilled aluminum flat bar stock on either side of the door panel for added strength and stress distribution (top and bottom to maintain alignment of the check arm, see the orange in the picture to better describe). Anyway, long story short, this solution provided me with a working door check for about three months until last night when the door got stuck and the door check mechanism broken again. I'm reaching out to Dorman for a warranty replacement, but I just can't understand why I'm having such a rough go of it with the door checks in this truck. The door swings fine, isn't loose on the hinges, and is properly aligned with the body/frame. Can anyone offer some advice? Do I need to grease or oil the door check before installation? I'm really quite perplexed by what I thought was a pretty easy to fix issue.
#2
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Yep. Quite common when door check issues are ignored.
I cut the metal section out of an old rear door and make it so it fits in the door from the outside. Install the door check sandwiching the damaged part of the door between the new reinforcement plate and the door check.
I cut the metal section out of an old rear door and make it so it fits in the door from the outside. Install the door check sandwiching the damaged part of the door between the new reinforcement plate and the door check.
#3
Seasoned Member
Thread Starter
Yep. Quite common when door check issues are ignored.
I cut the metal section out of an old rear door and make it so it fits in the door from the outside. Install the door check sandwiching the damaged part of the door between the new reinforcement plate and the door check.
I cut the metal section out of an old rear door and make it so it fits in the door from the outside. Install the door check sandwiching the damaged part of the door between the new reinforcement plate and the door check.
#4
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Not installing it upside down?
Did you lube it up good?
Did you lube it up good?
#5
Seasoned Member
Thread Starter
Well definitely didn't install upside down, but I also definitely *didn't* lube it up good...oooooorrrr lube it up at all for that matter.
I looked at the old one and saw no grease residue and just assumed that it wasn't meant to have any.
I shall rectify it on my next go 'round...ugh
Thanks Cruiser!
S/F,
-Matt
I looked at the old one and saw no grease residue and just assumed that it wasn't meant to have any.
I shall rectify it on my next go 'round...ugh
Thanks Cruiser!
S/F,
-Matt
#6
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
LOL.
