Door alignment and door jamb cracking?!? Help

Thread Tools

Search this Thread

Old 04-09-2012, 11:45 PM
  #1
Senior Member
Thread Starter

goneboating06's Avatar

Join Date: Aug 2009
Location: St. George Utah
Posts: 683
Likes: 0
Received 1 Like on 1 Post
Year: 1989
Model: Cherokee
Engine: 4.0L Rebuilt Renix "Low Output" haha
Default Door alignment and door jamb cracking?!? Help

I've spent the last 30 minutes researching threads, however i am in desperate need of some direct answers. Ever since I've bought my jeep my drivers side door has been hard to shut, and by hard I mean you have to really slam it, sometimes a few times to get it shut. It's not only annoying, I fear of the damage it's doing to my jeep. I did the doorless mod and i was able to align the door the best I could, and it shuts much better then before, but still it's ridiculous. It's obvious the door is sagging and I need to know how I can address this issue. I also might mention I have a 2 door. I'm sure those long heavy doors weren't very good on those hinges over the past 23 years.

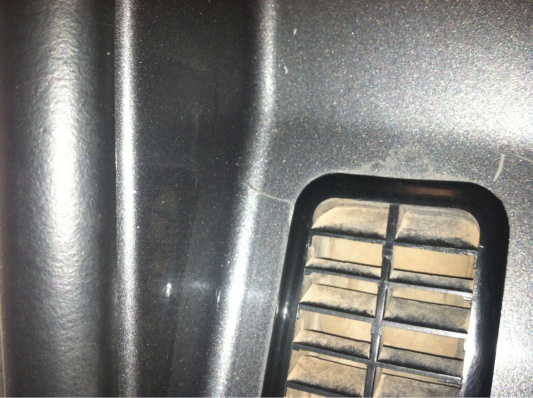

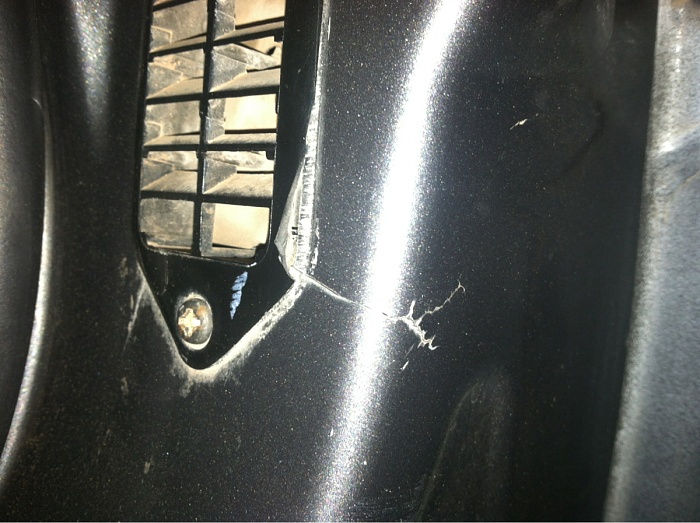

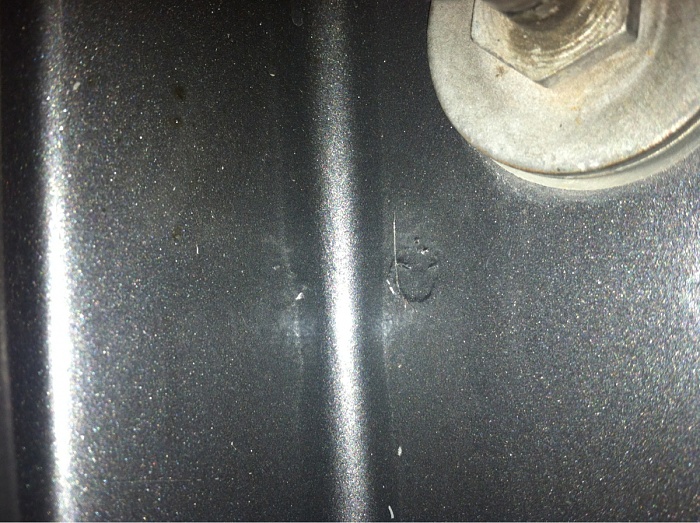

Now can body shops usually align doors? As you can see in the pictures I'm getting some fractures in the door jamb that worry me on the drivers side. It's not from going doorless, I've only done that twice, the cracks were there before. Im just at a loss of what to do. All help is very much appreciated! Thanks
Attached Thumbnails Door alignment and door jamb cracking?!? Help-image-2115211168.jpg   Door alignment and door jamb cracking?!? Help-image-983081494.jpg   Door alignment and door jamb cracking?!? Help-image-455467531.jpg
Old 04-09-2012, 11:57 PM
  #2
CF Veteran

Bustedback's Avatar

Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes on 18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
Default

You sure it's not a scratch from the seatbelt buckle getting slammed in the door? That is a crazy place for a crack.
Old 04-10-2012, 12:01 AM
  #3
Senior Member
Thread Starter

goneboating06's Avatar

Join Date: Aug 2009
Location: St. George Utah
Posts: 683
Likes: 0
Received 1 Like on 1 Post
Year: 1989
Model: Cherokee
Engine: 4.0L Rebuilt Renix "Low Output" haha
Default

Originally Posted by Bustedback
You sure it's not a scratch from the seatbelt buckle getting slammed in the door? That is a crazy place for a crack.
Yeah im positive, The seatbelt always retracts. it's without a doubt a crack.
Old 04-10-2012, 03:03 AM
  #4
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes on 22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

weld it up fix hinges back to factory if you altered for doorless running...stress cracking
Old 04-10-2012, 01:20 PM
  #5
Senior Member
Thread Starter

goneboating06's Avatar

Join Date: Aug 2009
Location: St. George Utah
Posts: 683
Likes: 0
Received 1 Like on 1 Post
Year: 1989
Model: Cherokee
Engine: 4.0L Rebuilt Renix "Low Output" haha
Default

Originally Posted by freegdr
weld it up fix hinges back to factory if you altered for doorless running...stress cracking
I just don't understand how it could be stress cracking due to being doorless? I mildly wheeled only twice doorless. Besides the cracks were there before I even cut the hinges last month. The door actually shuts better now since I modified the hinges. The upper hinge has a crack in the weld. Does it simply just need to be re welded?
Old 04-10-2012, 01:36 PM
  #6
CF Veteran

RTorrez1's Avatar

Join Date: Sep 2011
Location: Riviera, Texas
Posts: 4,172
Likes: 0
Received 4 Likes on 4 Posts
Year: 1998 Sport
Model: Cherokee
Engine: 4.0
Default

You can get the stress fractures because the doors make the body more ridged and without the door it give a the body more flex. Although I have never seen it on a 2 door. I have seen it on a four door not a two. I guess you ( I ) learn something new everyday
Old 04-10-2012, 01:46 PM
  #7
CF Veteran

Gee oh Dee's Avatar

Join Date: Sep 2010
Location: Milwaukee, WI
Posts: 21,168
Likes: 0
Received 5 Likes on 5 Posts
Year: 1987
Engine: Check
Default

Originally Posted by RTorrez1
You can get the stress fractures because the doors make the body more ridged and without the door it give a the body more flex. Although I have never seen it on a 2 door. I have seen it on a four door not a two. I guess you ( I ) learn something new everyday
There has been HUGE debates about wheeling doorless.

Evidence says that wheeling with doors is the same as wheeling without.

I found it hard to believe. But facts are facts.
Old 04-10-2012, 01:54 PM
  #8
CF Veteran

RTorrez1's Avatar

Join Date: Sep 2011
Location: Riviera, Texas
Posts: 4,172
Likes: 0
Received 4 Likes on 4 Posts
Year: 1998 Sport
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Gee oh Dee
There has been HUGE debates about wheeling doorless.

Evidence says that wheeling with doors is the same as wheeling without.

I found it hard to believe. But facts are facts.
Really!
Which category do you fall in? Not trying to argue just curious. I fall in the category that no door can cause stress fractures as you can probably tell from my earlier post.
Old 04-10-2012, 02:15 PM
  #9
CF Veteran

TheJerm's Avatar

Join Date: Jun 2010
Location: Flint/Asheville
Posts: 2,501
Likes: 0
Received 4 Likes on 4 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
Default

Ive owned two 2-doors and had to weld the hinges 3 times between the 2. But I bet those cracks you see are just from wheeling your XJ. I was shocked at the amount of cracks I had when i clean the frame rails to weld in stiffeners. like more than a dozen and I only cleaned around where I was welding
Old 04-10-2012, 02:20 PM
  #10
Senior Member

radio flyer's Avatar

Join Date: Feb 2009
Location: Highlands Ranch Co.
Posts: 717
Likes: 0
Received 0 Likes on 0 Posts
Year: 1985 shell
Model: Cherokee
Engine: 1996 6 cylinder Briggs & Stratton
Default

Adjust your striker out a bit, my 2 door cracked in the same spots- before i went door-less almost 10 years ago.

Old 04-10-2012, 02:24 PM
  #11
CF Veteran

TheJerm's Avatar

Join Date: Jun 2010
Location: Flint/Asheville
Posts: 2,501
Likes: 0
Received 4 Likes on 4 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
Default

I dont mean this towards you radio flyer but XJ's just look ugly without doors, its like when you first realize she has a padded bra on lol
Old 04-10-2012, 02:28 PM
  #12
Senior Member

radio flyer's Avatar

Join Date: Feb 2009
Location: Highlands Ranch Co.
Posts: 717
Likes: 0
Received 0 Likes on 0 Posts
Year: 1985 shell
Model: Cherokee
Engine: 1996 6 cylinder Briggs & Stratton
Default

I agree--- FUGLY----, but i used my ac compressor for on board air and summer time heat sucks.....
Old 04-10-2012, 02:37 PM
  #13
CF Veteran

TheJerm's Avatar

Join Date: Jun 2010
Location: Flint/Asheville
Posts: 2,501
Likes: 0
Received 4 Likes on 4 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
Default

Yea i know, i drive a black 2 door with no A/C but have an extra set to make half doors. Just ran out of time between finals and work.
Old 04-10-2012, 02:46 PM
  #14
CF Veteran

RTorrez1's Avatar

Join Date: Sep 2011
Location: Riviera, Texas
Posts: 4,172
Likes: 0
Received 4 Likes on 4 Posts
Year: 1998 Sport
Model: Cherokee
Engine: 4.0
Default

Hey radio flyer. I'm not a big fan of the door less XJ. But I do have to admit that you do have a pretty clean looking rig. Even without the doors. LOL
Old 04-10-2012, 02:49 PM
  #15
Senior Member

radio flyer's Avatar

Join Date: Feb 2009
Location: Highlands Ranch Co.
Posts: 717
Likes: 0
Received 0 Likes on 0 Posts
Year: 1985 shell
Model: Cherokee
Engine: 1996 6 cylinder Briggs & Stratton
Default

Originally Posted by RTorrez1
Hey radio flyer. I'm not a big fan of the door less XJ. But I do have to admit that you do have a pretty clean looking rig. Even without the doors. LOL
Thanks, iv'e owned it since 1987 and can't get myself to part with it.
