Does this cat look factory original?

Reply Subscribe

Thread Tools

Search this Thread

Nov 17, 2014 | 06:48 AM

#16

CCKen

CF Veteran

Joined: Aug 2010

Posts: 8,357

Likes: 103

From: Canton, MI

Year: 1999

Model: Cherokee

Engine: 4.0

If his Heep was a late production '98 it may have received a '99 CAT, part number 52019480 AF (This "AF" part number CAT was introduced in '99).

Quote:

Originally Posted by salad

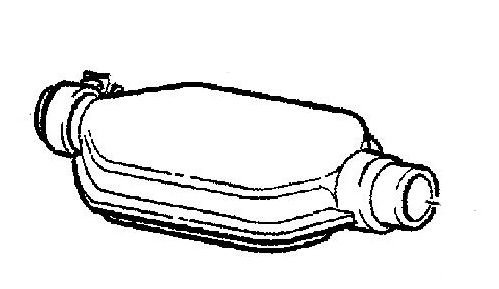

Aftermarket. The stock cat originally had a heat shield like this:

Mopar P/N 52019480AD for "Federal" emissions behind the 4.0L

Nov 17, 2014 | 07:21 AM

#17

salad

Herp Derp Jerp

Joined: Nov 2011

Posts: 18,251

Likes: 17

From: Parham, ON

Year: 1999

Model: Cherokee

Engine: 4.0L OBD-II

Quote:

Originally Posted by Radi

"someone run to Pep Boys and get 1,500 cats"

Nov 17, 2014 | 07:36 AM

#18

Crash_Course

Seasoned Member

Joined: Mar 2014

Posts: 498

Likes: 1

From: Central Texas

Year: 1996

Model: Cherokee

Engine: 4.0

Quote:

Originally Posted by salad

"THAT GUY from the Chrysler plant is on the phone again... Thinks he's funny..." Pep Boys employee, probably.

Nov 17, 2014 | 12:25 PM

#19

djb383

CF Veteran

Joined: Nov 2009

Posts: 8,172

Likes: 17

From: The Republic of TEXAS

Year: 1998

Model: Cherokee

Engine: 4.0L HO

Quote:

Originally Posted by CCKen

If his Heep was a late production '98 it may have received a '99 CAT, part number 52019480 AF (This "AF" part number CAT was introduced in '99).

FWIW, our '98 XJ has a May '98 build date.....very late for a '98 model build.

Nov 17, 2014 | 12:36 PM

#20

IJM

Thread Starter

CF Veteran

Joined: Jan 2014

Posts: 1,533

Likes: 349

From: District of Columbia

Year: 1998

Model: Cherokee (XJ)

Engine: 4.0

Quote:

Originally Posted by CCKen

Does this thing have an O2S? I don't see one in the pic.

It almost looks like a resonator.

Is your Heep an "Export" version?

Yeah, it has the secondary O2 sensor on the far side of the downstream pipe. You just can't see it in the picture since it's on the completely opposite side. The build date is 6-98.

Nov 17, 2014 | 01:12 PM

#21

Muddz

Seasoned Member

Joined: Nov 2013

Posts: 290

Likes: 1

From: USA

Year: 1995

Model: Grand Cherokee (ZJ)

Engine: 4.0L

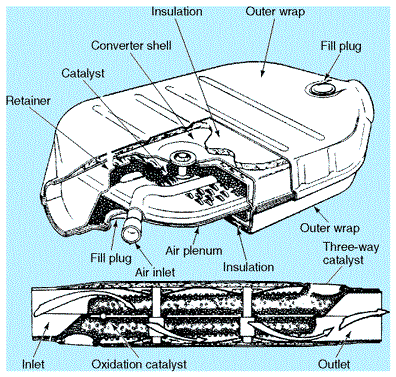

My factory cat was a pellet type.

http://davisconverters.com/Pellet-Converter.shtml

Used cats for scrap - Jeep $50-$58 ea.

http://catalyticcontrol.rockawayrecy...ist/#jeep-cats

52018128 1 1994-95, Federal
52018128 1 1994-95, Calif., Man. Trans.
52018141 1 1994-95, Calif., Auto Trans.
52019484 1 1996, Federal
52019481 1 1996, Calif.

52019480 1 ER0 Federal, 1997 XJ
52019480AD 1 ER0 Federal, 1998 XJ
52019 480AF 1 EP0 & ER0, 1999 XJ
52019480AG (2000) ER0 Federal,Europe II,Up to 1/20/00

Pellet Catalytic Converter

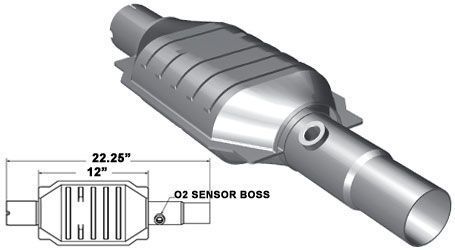

Newer type OE Fit (Magnaflow) for 98 - 99 (come with an O2 sensor bung)

Last edited by Muddz; Nov 17, 2014 at 03:23 PM.

Nov 17, 2014 | 01:15 PM

#22

djb383

CF Veteran

Joined: Nov 2009

Posts: 8,172

Likes: 17

From: The Republic of TEXAS

Year: 1998

Model: Cherokee

Engine: 4.0L HO

A June '98 build date (possibly the last month of '98 production)......that could very well be a reason for the difference.

Nov 17, 2014 | 01:24 PM

#23

djb383

CF Veteran

Joined: Nov 2009

Posts: 8,172

Likes: 17

From: The Republic of TEXAS

Year: 1998

Model: Cherokee

Engine: 4.0L HO

Quote:

Originally Posted by Crash_Course

This is precisely what they do, it's known as JIT, or "just in time" replenishment. It keeps assembly operations lean and on-hand inventory low. It depends on a big chain of logistics, and when one link fails, there has to be an immediately viable backup, as is probably the case with these converters. They probably had at least two or three backup components lined up requiring no other process changes in order to keep production rolling.

Thank you......couldn't remember the "JIT" name/phrase. Lots of things I use to do I don't remember so well anymore.

Nov 17, 2014 | 02:40 PM

#24

Crash_Course

Seasoned Member

Joined: Mar 2014

Posts: 498

Likes: 1

From: Central Texas

Year: 1996

Model: Cherokee

Engine: 4.0

Quote:

Originally Posted by djb383

Thank you......couldn't remember the "JIT" name/phrase. Lots of things I use to do I don't remember so well anymore.

That's not necessarily a bad thing. There's a lot of things about production and retail that I'm all too happy to realize that I've forgotten.

Nov 23, 2014 | 06:57 AM

#25

CCKen

CF Veteran

Joined: Aug 2010

Posts: 8,357

Likes: 103

From: Canton, MI

Year: 1999

Model: Cherokee

Engine: 4.0

The closer I look at that Cat I see where the outer heat shield used to be attached. You can see the three dark spots along the centerline of the Cat where the heat shield was welded on. Looks like someone tore it off puposely.

Quote:

Originally Posted by IJM

What do you guys think? Does this look like the original cat or an aftermarket replacement? Note the slip-on/ clamp joints on either end.
