differential parts
the hose leaving the front differential is a vacuum tube? and i cant find the part in a diagram.
thanks
thanks
#2
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
What year? Some early years have a vacuum disconnect front axle. That vacuum hose would be off to the side of the differential. There is also a breather tube located nearly center-top.
#4
CF Veteran
Join Date: May 2008
Posts: 3,018
Likes: 0
Received 13 Likes
on
13 Posts
Year: 1988
Model: Cherokee
Engine: AMC242
If it's leaving from near the top of the centre section, and looks to be about 5/16" ID, then it's a vent line that goes up into the engine bay. It's there to allow air to move in and out of housing as it heats up and cools - or you'd blow seals.
If it's (more probably "they're") leaving from the passenger-side tube, is a small diameter Nylon line, and is probably three lines in three different colours, it would likely be the axle shift motor on the earlier (thru 1992?) XJ/MJ, used as the CAD (Central Axle Disconnect) in an effort to improve fuel economy in 2WD by reducing parasitic driveline drag. (This was eliminated later, simply because it was shown to not make that much of a difference.)
But, vehicle information and a picture would be a huge help here!
#5
Newbie
Thread Starter
Join Date: Oct 2012
Location: Ga.
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6

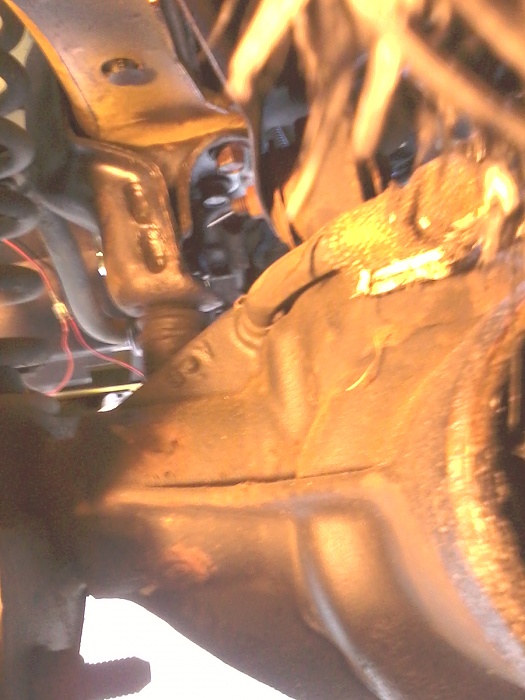

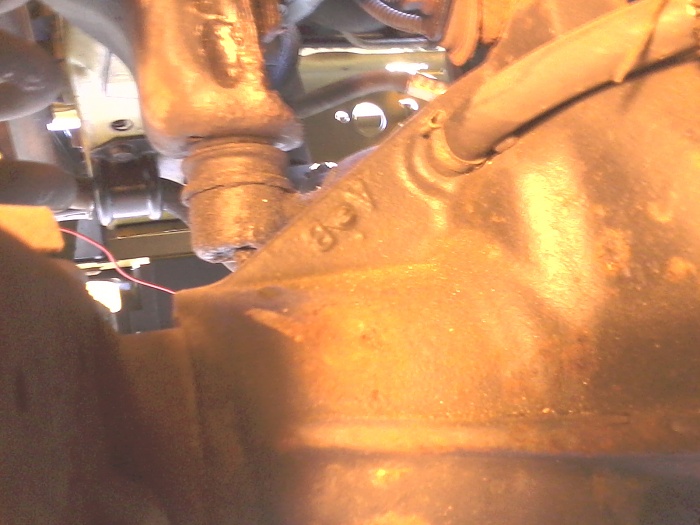

2001 the hose does go up in to the engine bay,it is connected to the upper part of differential on the driver side, the lower half was hanging on something cause it has just about melted in half
Trending Topics
#8
Junior Member
Join Date: Nov 2008
Location: Central Virginia
Posts: 76
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I just noticed the same thing on my '01 Limited XJ when I was under it day before t-giving. I had no idea what this tube was for but my front drive shaft joint wore a hole in it. May sound like a dumb question but why does the front differential need a breather tube? I cannot find one on the rear, nor on my other two 4x4s.
#9
Seasoned Member
Join Date: Feb 2012
Location: Oxford, OH
Posts: 369
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Originally Posted by 8lugnuts
I just noticed the same thing on my '01 Limited XJ when I was under it day before t-giving. I had no idea what this tube was for but my front drive shaft joint wore a hole in it. May sound like a dumb question but why does the front differential need a breather tube? I cannot find one on the rear, nor on my other two 4x4s.
The tube itself moves the venting location higher off the ground, so crap doesn't get in the hole and get stopped up. It's very important if you drive in water to make sure the tube is there, and in good shape. Otherwise, you get milky diff fluid, which is bad.
Edit: The rear diff has one, but it is on the axle tube, IIRC. Since the seals are at the wheel end of the tubes in the back, they can move the vent away from the diff, to simplify the casting
#10
CF Veteran
Join Date: May 2008
Posts: 3,018
Likes: 0
Received 13 Likes
on
13 Posts
Year: 1988
Model: Cherokee
Engine: AMC242
To account for pressure differences between the outside and inside of the differential. The moving gears, and altitude changes create a pressure differential, and if there was not a vent, the axle seals would leak.
The tube itself moves the venting location higher off the ground, so crap doesn't get in the hole and get stopped up. It's very important if you drive in water to make sure the tube is there, and in good shape. Otherwise, you get milky diff fluid, which is bad.
Edit: The rear diff has one, but it is on the axle tube, IIRC. Since the seals are at the wheel end of the tubes in the back, they can move the vent away from the diff, to simplify the casting
The tube itself moves the venting location higher off the ground, so crap doesn't get in the hole and get stopped up. It's very important if you drive in water to make sure the tube is there, and in good shape. Otherwise, you get milky diff fluid, which is bad.
Edit: The rear diff has one, but it is on the axle tube, IIRC. Since the seals are at the wheel end of the tubes in the back, they can move the vent away from the diff, to simplify the casting
The only thing I really don't like about the PRV fitting on the case is that it's Nylon and breaks easily - sooner or later, I'll D&T for a small pipe thread (probably 1/8" NPT) and do a brass fitting there so it doesn't pop loose.
