Developed a coolant leak
#1
Member
Thread Starter
Join Date: Feb 2017
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
Developed a coolant leak

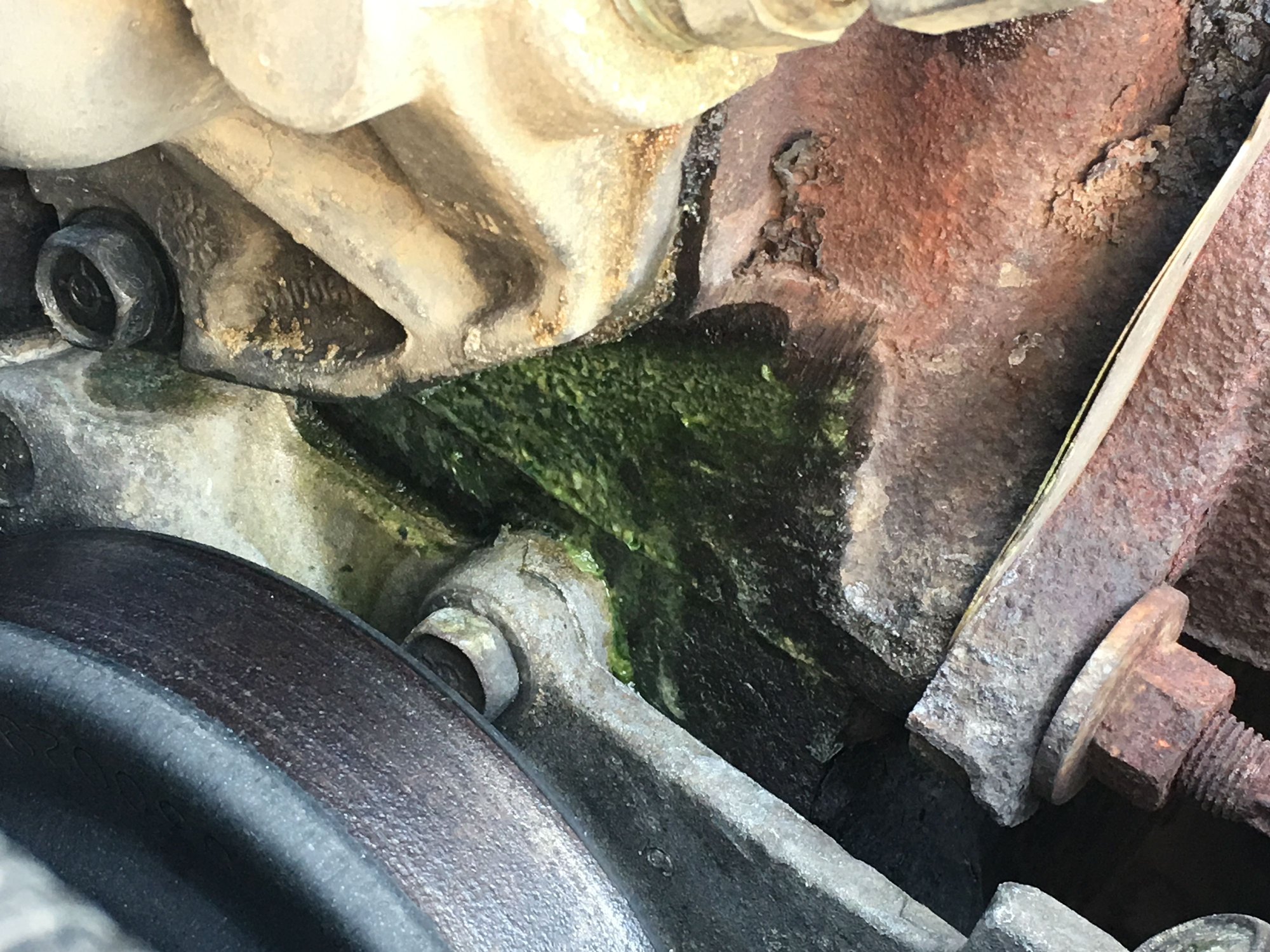

Hey guys, so I recently developed a coolant leak in my 2000 xj. I believe it is coming from the thermostat/thermostat housing but I wanted to get some advice. I was planning on re doing all my cooking system over the summer, but I need to get this taken care of now it looks. I am not sure whether I need a new housing or just a gasket, and I figured I might as well replace the thermostat while I am in there. From what I've read, it best to go with mopar, but any other guidance on the housing? Here are a few pictures, and thank you!
#2
The housing doesn't really leak. It's most likely the gasket. It's pretty simple. 2 bolts remove the housing. Clean up the old gasket junk. Replace the thermostat. Make sure the thermostat is seated properly. I typically use a little hi tack gasket sealer to hold the thermostat in place. They have a tendency to slip down out of the groove. Put the gasket on and then replace the housing. I always use antiseize on that top long bolt. It's a pretty simple job and can be done prior to overhauling the entire cooling system.
#3
CF Veteran
Join Date: Jan 2012
Location: Ocean County, NJ
Posts: 2,208
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
If you're truly planning on updating your entire cooling system with new parts, I would just replace the housing and t-stat. It's cheap enough. The housing also comes with a gasket which is a plus.
#4
Member
Thread Starter
Join Date: Feb 2017
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
I'm going to go ahead and do the housing and the thermostat, and recommendations on a good place to order from for the mopar thermostat?
#6
CF Veteran
Join Date: Dec 2015
Location: PA
Posts: 3,038
Likes: 0
Received 333 Likes
on
277 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
You can get the Mopar (195*) thermostat and gasket from Rockauto. They are not listed under Cherokee tho. You have to use the part number search to bring them up, seperately. The thermostat is part #52028186 and the gasket is part #53020547AC.
Try a local dealer, they should have them. It will cost a bit more than Rockauto. A parts store might have them listed. Never tried them tho.
Try a local dealer, they should have them. It will cost a bit more than Rockauto. A parts store might have them listed. Never tried them tho.
#7
CF Veteran
Join Date: Dec 2015
Location: PA
Posts: 3,038
Likes: 0
Received 333 Likes
on
277 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
When replacing the housing, make sure both surfaces are clean (no old gasket at all), and that the thermostat doesnt slip as the housing can distort and crack once tightened. A little sealant holding the thermostat to the housing helps.
Trending Topics
#8
CF Veteran
Join Date: Jun 2016
Location: York PA
Posts: 2,929
Likes: 0
Received 5 Likes
on
5 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 Litre I6
I used wermopar.com (We Are Mopar)
Their shipping costs blow! However, when I added everything to my cart on both wermopar.com and rock auto. wermopar.com ended up being cheaper by about 10-15 dollars. Basically, wermopar parts were cheaper but the shipping was more and rock auto's parts were more expensive and shipping was cheaper. wermopar won out.
Their shipping costs blow! However, when I added everything to my cart on both wermopar.com and rock auto. wermopar.com ended up being cheaper by about 10-15 dollars. Basically, wermopar parts were cheaper but the shipping was more and rock auto's parts were more expensive and shipping was cheaper. wermopar won out.
#10
CF Veteran
Join Date: Jun 2016
Location: York PA
Posts: 2,929
Likes: 0
Received 5 Likes
on
5 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 Litre I6
Here are some part numbers, if your considering rebuilding the system.
OEM Water Pump
PN- 4626215AF
Apparently this is discontiued PN and replaced by the following:
http://www.wermopar.com/jeep/cheroke...ame=water-pump
OEM Upper Radiator Hose
PN-52006301
OEM Lower Radiator Hose
PN-52028286AE
OEM Thermostat 195F
PN- 52028186AC
OEM Water Pump
PN- 4626215AF
Apparently this is discontiued PN and replaced by the following:
http://www.wermopar.com/jeep/cheroke...ame=water-pump
OEM Upper Radiator Hose
PN-52006301
OEM Lower Radiator Hose
PN-52028286AE
OEM Thermostat 195F
PN- 52028186AC
#11
Member
Thread Starter
Join Date: Feb 2017
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
Do I need to drain the whole system, or can I just pop off the hoses and refill it? Also for those of you who have replaced your thermostat, do I need to be concerned with burping the system afterwords?
#12
CF Veteran
Join Date: Jan 2012
Location: Ocean County, NJ
Posts: 2,208
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
http://www.toolpan.com/Lisle-24680--...po_hoCuyjw_wcB
This funnel system makes burping the cooling system on almost any vehicle a piece o' cake
Last edited by Jeepin'_Aint_EZ; 04-11-2017 at 08:48 AM.
#13
Member
Thread Starter
Join Date: Feb 2017
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
Well the burping went well, the leak not so much. I went to replace the old housing, but I couldn't quite get the sensor off the right side, so I just cleaned it off and put a thin coat of rtv on it and set the gasket in place. I imagine I didn't let the rtv set well enough, because it is still leaking. I'm planning on buying a new sensor and giving it another go on Monday with the new housing and gasket. That's what I get for not following the instructions I suppose haha.
#14
CF Veteran
Join Date: Feb 2016
Location: Northern New Mexico
Posts: 3,683
Likes: 0
Received 7 Likes
on
6 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Well the burping went well, the leak not so much. I went to replace the old housing, but I couldn't quite get the sensor off the right side, so I just cleaned it off and put a thin coat of rtv on it and set the gasket in place. I imagine I didn't let the rtv set well enough, because it is still leaking. I'm planning on buying a new sensor and giving it another go on Monday with the new housing and gasket. That's what I get for not following the instructions I suppose haha.
#15
Member
Thread Starter
Join Date: Feb 2017
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
That's what I was thinking maybe I have a pin hole crack or a seam somewhere. It's only leaking from the bottom bolt hole, and it on there pretty good. I gave the original housing a good cleaning, and didn't see any noticeable cracks or holes. I just put a think coat of rtv on, mainly to help hold the gasket in place, which isn't really necessary from what I've read. I didn't let it really dry however, I just got impatient and wanted to get it buttoned up before the rain came
