Dana 35 to Chrysler 8.25 Swap
07-06-2012, 11:25 PM
#1
Seasoned Member
Thread Starter
Join Date: Jun 2012
Location: Sacramento, CA
Posts: 362
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Dana 35 to Chrysler 8.25 Swap
Somebody is selling a Chrysler 8.25 rear axle and I was wondering if it would be worth the swap? Not sure what the spline count is.
07-06-2012, 11:40 PM
#4
Senior Member
Join Date: Jul 2011
Location: Red Lion, PA
Posts: 675
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee(XJ)
Engine: 4.0
basically a direct swap and worth the time and effort. just make sure you get the larger u bolts and be sure to get the driveshaft too
07-06-2012, 11:43 PM
#5
Seasoned Member
Thread Starter
Join Date: Jun 2012
Location: Sacramento, CA
Posts: 362
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
07-06-2012, 11:51 PM
#6
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
97 and up have 29 spline axles 96 down 27 there not really worth the work drive shaft gonn be about two inchs to long auto 355 stick shiftv307 unless its 4cyl then its 410 assumeing theree stock gear sets
Trending Topics
07-07-2012, 07:15 AM
#8
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
07-07-2012, 07:34 AM
#9
CF Veteran
Join Date: Jul 2011
Location: Warren, Pa
Posts: 2,164
Likes: 0
Received 1 Like
on
1 Post
Year: 97
Model: Cherokee
Engine: 4.0L
Originally Posted by cruiser54
True. But with a 3" lift, the stock shaft works great.
And the added bonus with the 8.25 is it's easy to convert to ZJ rear discs. There are a coupla real nice write-ups on it.
07-07-2012, 08:11 AM
#10
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
07-07-2012, 09:07 AM
#12
Seasoned Member
Thread Starter
Join Date: Jun 2012
Location: Sacramento, CA
Posts: 362
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Ended up getting the rear axel for $100 and it came with a truss welded on so overall if it doesn't work out I still got a good deal out of it.
It's a 3.55 27 spline cnt.
It's a 3.55 27 spline cnt.
Last edited by SacXJguy; 07-07-2012 at 09:21 AM.
07-09-2012, 02:07 AM
#13
Seasoned Member
Thread Starter
Join Date: Jun 2012
Location: Sacramento, CA
Posts: 362
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0

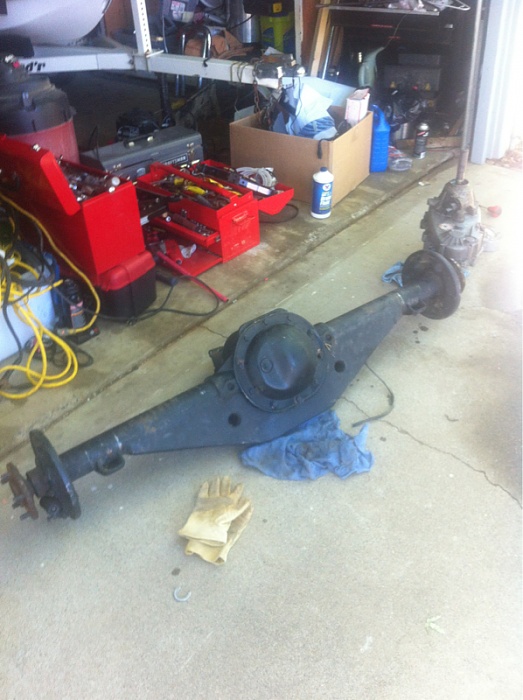

Alright so me and my brother opened it up to see what it's like inside, And I noticed a "C" shaped metal piece inside the axle. Any ideas? It's In the picture below under the gloves.
