Dana 30 carrier bearing races, can they be replaced on their own?
Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go hereXJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.
Dana 30 carrier bearing races, can they be replaced on their own?
Hey all,

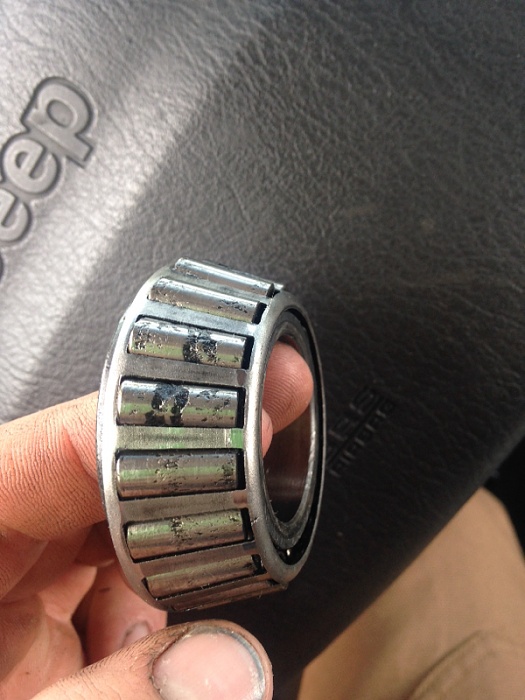

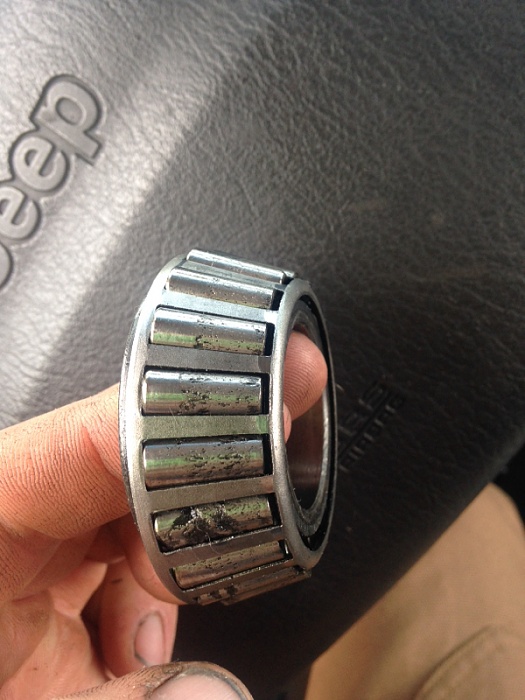

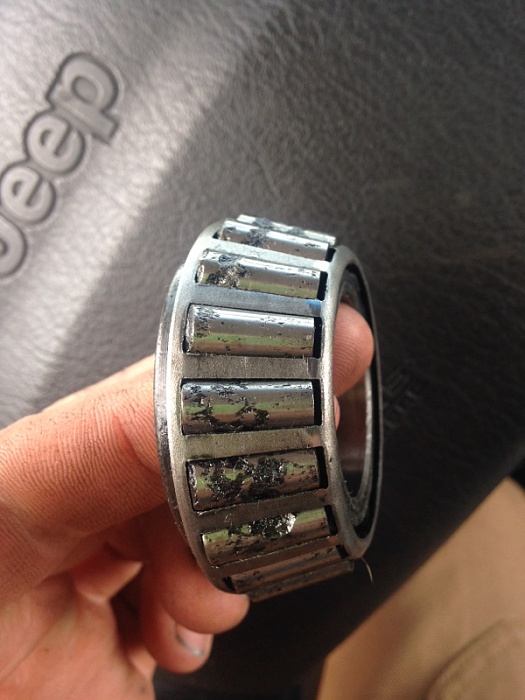

I replaced the center pin in my D30/Aussie Locker and am about to re-install the carrier. Before I got into re-installing it, I noticed that the condition of the races for the carrier bearings is not so great. The rollers in the bearings look ok.
Can I just replace the races, or does it need a bearing job? Also, will either require resetting the backlash/other specs?
A bit out of my league. No scoring or discoloration? (blue). Will that "staining" clean up? I was taught to not only change both B & R's together, but to not mix them up. They wear in together as a pair.
Besides others here, you might bounce the question off seriousoffroad. Myself, with just minor pitting I might just run it...Idk though.
Last edited by DFlintstone; 05-30-2015 at 12:22 AM.
Reason: others here, (comma)
A bit out of my league. No scoring or discoloration? (blue). Will that "staining" clean up? I was taught to not only change both B & R's together, but to not mix them up. They wear in together as a pair.
Besides others here you might bounce the question off seriousoffroad. Myself, with just minor pitting I might just run it...Idk though.
Cool, thanks. I am with you on the wearing together thought process. No scoring, and the discoloration that you see is oil that will clean up. I do know which side they are each for, so if I do put them back in, they'll be on the same side they came from.
I stopped to ask the question, but I am very tempted to put it all back together and ride on.
Your carrier bearings do allot more work than mine, but if those races clean up OK I'd be very likely to reinstall them. Mating the ring to the pinion after a rebuild is REALLY a job for pros. I've been wrenching since other kids on my bolck brought there bikes to me to get their training wheels off! 1970?. Anyway I only got one right of the two I tried.....Likely better to put it to bed, as undisturbed as possible.
You really want it to feel butter smooth. (any bearing). If you feel any grunchy/bumpy, when it's clean clean, it's days are numbered.
Last edited by DFlintstone; 05-30-2015 at 12:26 AM.
Reason: , it's days
Your carrier bearings do allot more work than mine, but if those races clean up OK I'd be very likely to reinstall them. Mating the ring to the pinion after a rebuild is REALLY a job for pros. I've been wrenching since other kids on my bolck brought there bikes to me to get their training wheels off! 1970?. Anyway I only got one right of the two I tried.....Likely better to put it to bed, as undisturbed as possible. You really want it to feel butter smooth. (any bearing). If you feel any grunchy/bumpy, when it's clean clean, days are numbered.
indeed. When bearings look like this, it's never a good thing, haha
Your carrier bearings do allot more work than mine, but if those races clean up OK I'd be very likely to reinstall them. Mating the ring to the pinion after a rebuild is REALLY a job for pros. I've been wrenching since other kids on my bolck brought there bikes to me to get their training wheels off! 1970?. Anyway I only got one right of the two I tried.....Likely better to put it to bed, as undisturbed as possible.
You really want it to feel butter smooth. (any bearing). If you feel any grunchy/bumpy, when it's clean clean, it's days are numbered.
Gotta start somewhere, right? lol If there is one thing that I've picked up on while researching this stuff is that an out of spec diff will soon be in several pieces. Taking the carrier/locker out is about as far as I'm willing to go without some more equipment.
Well, after consulting with you guys, and doing some looking and nodding, they passed the jipcherkee QC check (Or maybe I just decided that I didn't have much in the way of other options). In they went. Tomorrow I test drive and see if anything splodes.
Originally Posted by XJwonders
indeed. When bearings look like this, it's never a good thing, haha
If you've ever driven with shot carrier bearings and driven with good bearings the difference is night and day. No vibes, can feel like floating down the road.
For Dana 30 you can buy the cup and cone separate, together, or as a kit.
Timken part numbers LM501349, LM501314
NAPA part numbers have a "VP" at the end or BRG72 for the set.
Most stores will interchange or use Timken part numbers.
Don't get hung up on the Timken brand name. Koyo and SKF are excellent bearings. They just don't have the Timken brand recognition in the U.S.
