Crap, what did I break?

Old 06-22-2013, 05:30 PM
  #1
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 93
Default Crap, what did I break?

First off, thank you to Mr. Lube for tightening the ***** out of my oil filter. This is the exact reason I usually do my own changes....and the results that happen when I don't.

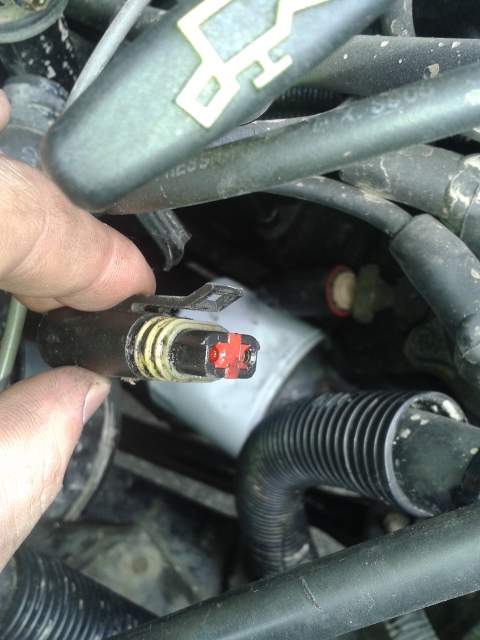

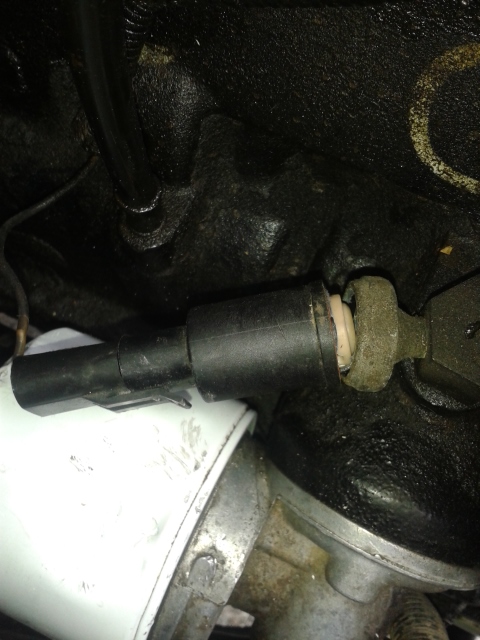

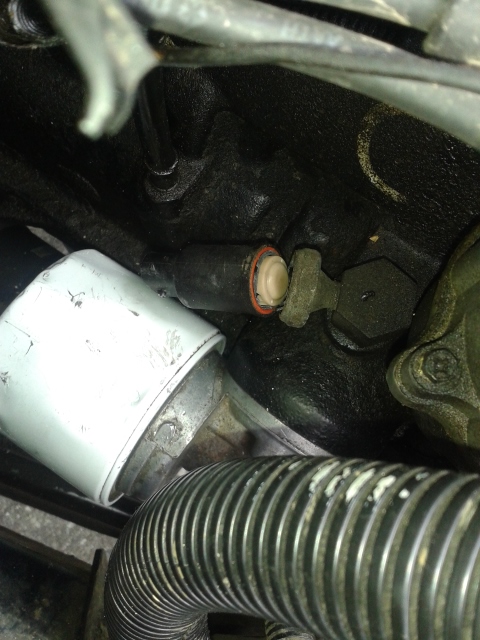

Can someone tell me what this plug is I broke? Some type of sensor /thermostat? If you're looking in the engine bay, this is right above the oil filter attached to the left side of the block. It is hanging on by a thread and I need to know what I'm looking for when I head over to buy it.

1996 - 4.0L - I6 - Automatic - XJ

Thank you!!
Attached Thumbnails Crap, what did I break?-20130622_135701.jpg   Crap, what did I break?-20130622_135715.jpg   Crap, what did I break?-20130622_135747.jpg   Crap, what did I break?-20130622_135755.jpg
TheMiddleMan is offline
Old 06-22-2013, 05:34 PM
  #2
Senior Member

Join Date: Nov 2012
Location: Harrisburg, Pennsylvania
Posts: 915
Year: 1995
Model: Cherokee
Engine: 4.0L HO
Default

That's the oil-pressure sending unit. I think they run about $45 at the dealer, I would recommend getting one from the dealer if you can since aftermarket ones tend to be hit and miss and the "better" aftermarket ones cost nearly as much as the OE part from a dealer. It is an easy fix, just unplug the connector (looks like you already did this), remove what's left of the old sensor with a 1" wrench, screw in the new sensor, plug the connector back in.

Last edited by dmill89; 06-22-2013 at 05:38 PM.
dmill89 is offline
Old 06-22-2013, 05:35 PM
  #3
CF Veteran

Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Model: Cherokee
Default

Oil pressure sender. Don't start the motor with it broken, you could lose your oil rather quickly. They're pretty cheap.

eta: I see D"speedy"mill89 beat me to it. Agreed on the dealer part being better although I've used the cheaper ones from Autozone and Rock Auto without trouble. Oil pressure sender is pretty benign, unlike a CPS or something that can leave you walking. (Standard Motor Products part is about $19)

Last edited by Radi; 06-22-2013 at 05:39 PM.
Radi is offline
Old 06-22-2013, 05:44 PM
  #4
Senior Member

Join Date: Mar 2013
Location: Texas
Posts: 691
Year: 1993
Model: Cherokee
Engine: 4.0L
Default

Just be sure and get a sender for a gauge if you have one or for the light otherwise. Sometimes this can be problematic at AutoZone.
Pelican is offline
Old 06-22-2013, 05:46 PM
  #5
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,911
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Take old one with ya there to versions.
freegdr is offline
Old 06-22-2013, 05:49 PM
  #6
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 93
Default

So what are the chances of me making it to the NAPA with it broken? I have one vehicle or a long walk

Thanks for the help guys.
TheMiddleMan is offline
Old 06-22-2013, 05:56 PM
  #7
Seasoned Member

Join Date: May 2012
Location: Ware Shoals, SC
Posts: 436
Year: 1993
Model: Cherokee
Engine: 4.0L
Default

You won't. If you can find a plug or bolt to fit hole, you can plug it temporarily.
bulrid8 is offline
Old 06-22-2013, 05:58 PM
  #8
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,911
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Originally Posted by TheMiddleMan View Post
So what are the chances of me making it to the NAPA with it broken? I have one vehicle or a long walk

Thanks for the help guys.
Drive blow motor ,walk drive again later
freegdr is offline
Old 06-22-2013, 06:10 PM
  #9
Senior Member

Join Date: Nov 2012
Location: Harrisburg, Pennsylvania
Posts: 915
Year: 1995
Model: Cherokee
Engine: 4.0L HO
Default

As other's have said, you won't make it very far unless you plug the hole somehow, oil is at full pressure and will pour out of the hole. If you go to NAPA get the Echlin (their premium brand) one, and as others have said make sure to get the correct one for a gauge/light depending on what you have.
dmill89 is offline
Old 06-22-2013, 08:31 PM
  #10
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 93
Default

Thanks guys, got the new one in.

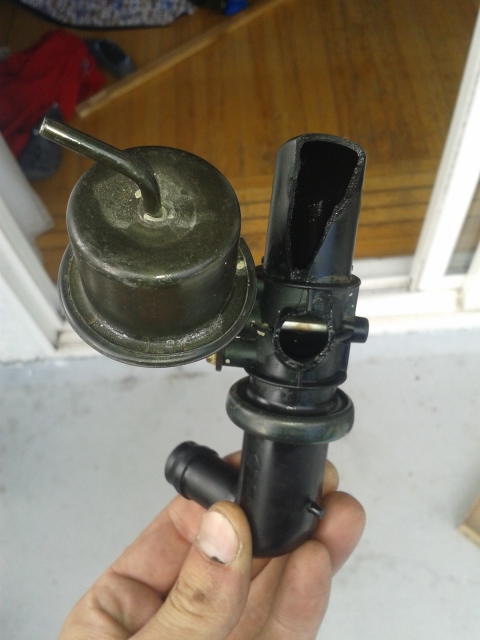

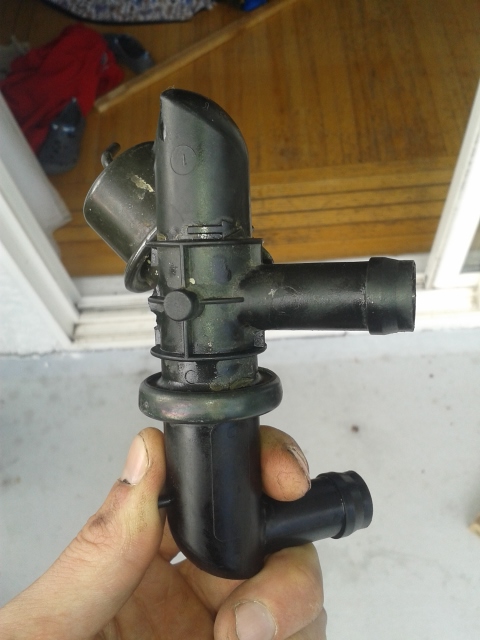

Second problem I ran into, well my brothers wrist ran into , and smashed it, is this:

what is it called? Something to do with the coolant. Thanks again for the advice!
Attached Thumbnails Crap, what did I break?-20130622_171610.jpg   Crap, what did I break?-20130622_171615.jpg
TheMiddleMan is offline
Old 06-22-2013, 08:47 PM
  #11
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 93
Default

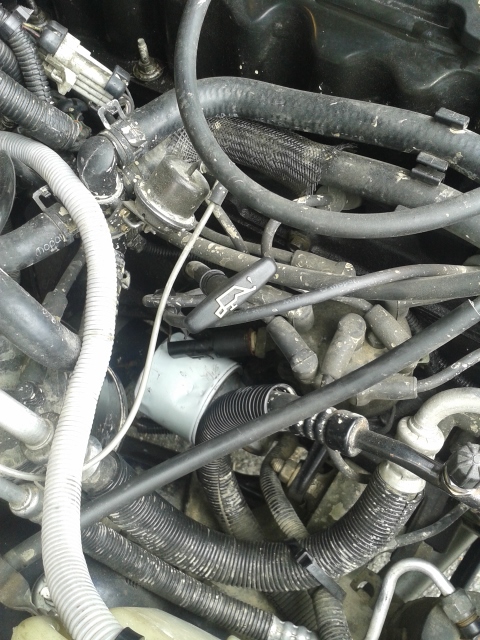

From what I can find, does either a heater control valve, or a diverter valve sound right? In my original post, you can see it sitting in the bottom right picture, 3 hoses going to it.

Cheers
TheMiddleMan is offline
Old 06-22-2013, 08:53 PM
  #12
CF Veteran

Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Model: Cherokee
Default

That's exactly what it is- heater control valve. You don't need it, in fact it was eliminated from later XJ's. They break if you look at them the wrong way. You can just splice the hoses together or replace them with longer hoses and trashcan the valve. Don't forget to plug the vacuum line.
Radi is offline
Old 06-22-2013, 08:55 PM
  #13
Senior Member

Join Date: Nov 2012
Location: Harrisburg, Pennsylvania
Posts: 915
Year: 1995
Model: Cherokee
Engine: 4.0L HO
Default

Originally Posted by TheMiddleMan View Post
From what I can find, does either a heater control valve, or a diverter valve sound right? In my original post, you can see it sitting in the bottom right picture, 3 hoses going to it.

Cheers
Yep it's a heater diverter valve. Those are really easy to break, the plastic gets brittle over time and they often even break by themselves.
dmill89 is offline
Old 06-22-2013, 08:56 PM
  #14
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 93
Default

Cool, thanks for the help.

what was the reasoning for eliminating it? Is there an advantage to me doing it? The only reason I'm concerned is because of that little vacuum canister, does it not serve a specific function?

Thank you.
TheMiddleMan is offline
