Cracked Unibody???

Thread Tools

Search this Thread

Old May 23, 2011 | 09:56 AM
  #1
BotakBeng's Avatar
Thread Starter
CF Veteran

Joined: Jan 2011
Posts: 1,894
Likes: 4
From: Las Vegas
Year: 1999
Model: Cherokee
Engine: 4.0
Default Cracked Unibody???

Does these pics shows a cracked unibody/frame?
Appreciate if someone can comment.

Thx in advance.



Reply
Old May 23, 2011 | 10:00 AM
  #2
hi im adam's Avatar
Seasoned Member

Joined: Oct 2010
Posts: 310
Likes: 0
From: Muskegon, MI
Year: I've had a few...
Model: Cherokee
Engine: A secret
Default

looks like 2 different pieces of metal. maybe it was replaced?

Would I raise any concern? no.
Reply
Old May 23, 2011 | 10:02 AM
  #3
96_xj's Avatar
Honorary Moderator

Joined: Mar 2010
Posts: 8,135
Likes: 16
From: Gilbert AZ/Las Cruces NM
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Default

check your steering box area for cracks. if there is no cracks there then I wouldnt raise any concern.

you could get HDEngineering front horn stiffeners (as it is recommended anyways) and call it good
Reply
Old May 23, 2011 | 10:07 AM
  #4
UserID6095's Avatar
Newbie

Joined: May 2009
Posts: 3
Likes: 2
Model: Cherokee
Default

Looks the inner fender pulled away. Can you take some more pictures?
Reply
Old May 23, 2011 | 11:23 AM
  #5
93gc40's Avatar
CF Veteran

Joined: Mar 2009
Posts: 2,750
Likes: 3
From: Visalia, Kalifornia, ussa
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Looks like a little panel stretching and separation at some crappy spot welds. Could always grind the paint off and weld the seam.

Last edited by 93gc40; May 23, 2011 at 11:41 AM.
Reply
Old May 23, 2011 | 11:36 AM
  #6
razor02097's Avatar
CF Veteran

Joined: Jun 2010
Posts: 2,117
Likes: 3
From: Ohio
Year: 1998
Model: Cherokee
Engine: 4.0 stock
Default

Agree with above... it isn't cracked unibody just a panel pulled away at the seam.
Reply
Old May 23, 2011 | 12:47 PM
  #7
BotakBeng's Avatar
Thread Starter
CF Veteran

Joined: Jan 2011
Posts: 1,894
Likes: 4
From: Las Vegas
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Thank you all for the quick reply .

As long as it does not affect the structure of the Jeep i should not be concern with it huh?

Thx ya again.
Reply
Old May 23, 2011 | 01:01 PM
  #8
builtnotbought89''s Avatar
CF Veteran

Joined: May 2009
Posts: 6,328
Likes: 1
From: SLC, UT
Year: 1989 2 door
Model: Cherokee
Engine: 4.0
Default

I would be concerned! Inspect the inner frame rail just below where its separating. The last thing you want is to have it get worse, tell one day the whole box rips the frame away in a 60mph bend on the highway! There are a lot of options to reinforce that known week spot on the Cherokee. What size tires are you running? I made my box brace for like $10 for the steel, & hardware!
Reply
Old May 23, 2011 | 03:04 PM
  #9
HeepJeeper's Avatar
Member

Joined: Aug 2010
Posts: 190
Likes: 1
From: vermont
Year: 1996
Model: Cherokee
Engine: 4.0
Default

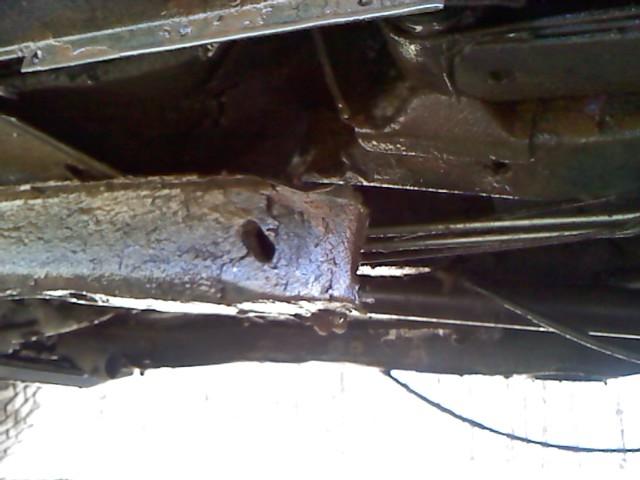

This is a cracked frame
Name:  0320111441b.jpg
Views: 858
Size:  38.0 KB
Reply
Old May 23, 2011 | 11:07 PM
  #10
BotakBeng's Avatar
Thread Starter
CF Veteran

Joined: Jan 2011
Posts: 1,894
Likes: 4
From: Las Vegas
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by builtnotbought89'
I would be concerned! Inspect the inner frame rail just below where its separating. The last thing you want is to have it get worse, tell one day the whole box rips the frame away in a 60mph bend on the highway! There are a lot of options to reinforce that known week spot on the Cherokee. What size tires are you running? I made my box brace for like $10 for the steel, & hardware!
I'll take a look tomorrow and take more pics.

Originally Posted by HeepJeeper
This is a cracked frame
Attachment 49726
Damn!
I hope is repairable.
GL yo.
