Could this cause my death wobble?

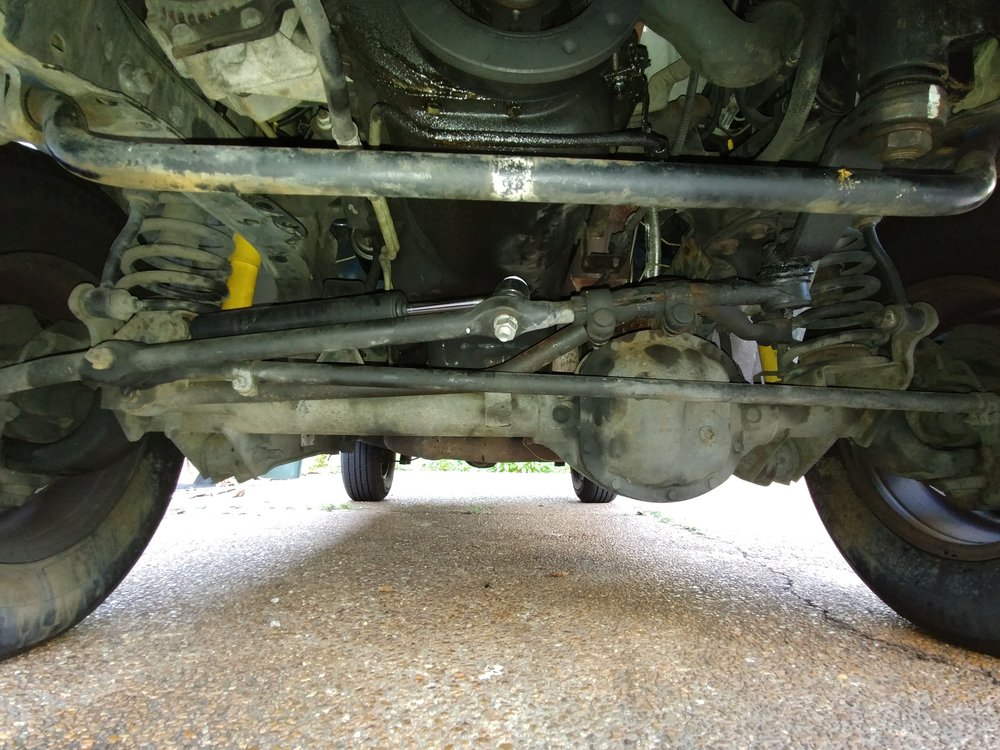

I apologize for the quality of the picture, it was the best I could get with my phone. Anyway, I get the death wobble when I hit a bump at high speeds. It happens more often when I hit something with only one of my tires or a diagonal bump, ones that hit both tires at the same time usually don't cause the wobble. So I look under the Jeep and see this bar that doesn't look like its in very good shape. I think it's the drag link bar? Anyway I just want to know if replacing this would fix my death wobble because it's pretty annoying and it freaks passengers out lol.
#2
Senior Member
Join Date: Sep 2014
Location: Austintown, OH
Posts: 625
Likes: 0
Received 3 Likes
on
3 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
I would start with your track bar. The axle side mount tends to oval out and cause a lot of DW issues. If that looks to be ok then I'd check the tie rod end of the track bar.
I'm assuming from the pic that it's not lifted at all?
There are a lot of things that could cause DW but the track bar is one of the easiest to diagnose. Start with that and if that looks fine we can go from there.
I'm assuming from the pic that it's not lifted at all?
There are a lot of things that could cause DW but the track bar is one of the easiest to diagnose. Start with that and if that looks fine we can go from there.
#3
CF Veteran
Join Date: Dec 2015
Location: PA
Posts: 3,038
Likes: 0
Received 333 Likes
on
277 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
Here you go.
Attachment 303327
That pic is not an XJ, but the part names and locations are the same.
Attachment 303327
That pic is not an XJ, but the part names and locations are the same.
Last edited by fb97xj1; 08-10-2018 at 08:00 PM.
#4
Crawl under the front end and have someone turn the wheel back and forth to check for loose joints. My TJ had the same problem, went away after replacing the track bar and TRE's.
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,864
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#6
Caracticus Potts The Mod
#7
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,864
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
That kind of stuff is what separates cF from most other forums.....
