Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

coolant drip - photo

Old 05-25-2010, 07:31 AM
  #1
Newbie
Thread Starter

Jeeperrari's Avatar

Join Date: May 2010
Location: Newport News, VA
Posts: 21
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Default coolant drip - photo

Drove my 99 cherokee this morning and noticed this drip. It was a steady drip coming from the point marked. I couldn't tell (didn't have flash light) if that was a gathering point, or that was the source. Frankly, it looked like the source but who knows. What do you guys think is the problem? Thanks.

Old 05-25-2010, 07:44 AM
  #2
Member

96tudor's Avatar

Join Date: Apr 2010
Location: Greenville, SC
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996 two-door SE
Model: Cherokee
Engine: 4.0
Default

It is most likely coming from the weep hole on the water pump. Other less likely places would be the thermostat housing, and the connection point of the upper radiator hose and heater hose on the thermostat housing. In those cases, you most likely see coolant laying on top of the water pump also.

Replace the water pump with new, not rebuilt.
Old 05-25-2010, 07:46 AM
  #3
Junior Member

ruglyot's Avatar

Join Date: May 2010
Location: Richfield, Utah
Posts: 50
Likes: 0
Received 0 Likes on 0 Posts
Year: 91
Model: Cherokee
Engine: 4.0
Default

If it is indeed coolant, look above the damper pulley to your water pump and associated hoses. At best, could just need hose clamps tightened on hoses. Russ
Old 05-25-2010, 08:12 AM
  #4
Newbie
Thread Starter

Jeeperrari's Avatar

Join Date: May 2010
Location: Newport News, VA
Posts: 21
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

here is another photo from it. The arrow is pointing at coolant. Could it be just the hose?

Old 05-25-2010, 08:32 AM
  #5
Junior Member

ruglyot's Avatar

Join Date: May 2010
Location: Richfield, Utah
Posts: 50
Likes: 0
Received 0 Likes on 0 Posts
Year: 91
Model: Cherokee
Engine: 4.0
Default

Normal expansion /contraction due to temperature changes will loosen hose clamps - tighten them up. Russ
Old 05-25-2010, 08:52 AM
  #6
Newbie

Pauldo55's Avatar

Join Date: May 2010
Location: Georgia
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts
Year: 97
Model: Cherokee
Engine: 4.0
Default Re; Coolant Drip

I would go by your local AutoZone / Advance store / rent or borrow a coolant tester, and with the engine > COLD < pressure check the cooling system after tightning the bottem hose, if you still have leak it will either be the lower hose ( a hole) or the water pump. Either way with Summer coming you will want either fixed.
Old 05-25-2010, 09:00 AM
  #7
Newbie
Thread Starter

Jeeperrari's Avatar

Join Date: May 2010
Location: Newport News, VA
Posts: 21
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Thanks for the advice guys.
Old 05-25-2010, 06:48 PM
  #8
Newbie
Thread Starter

Jeeperrari's Avatar

Join Date: May 2010
Location: Newport News, VA
Posts: 21
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

I went and readjusted the clamp that held the lower hose and couldn't see any leak there, but it still dripped from the spot in the first photo. I guess it is the water pump then?
Old 05-26-2010, 05:05 AM
  #9
Member

96tudor's Avatar

Join Date: Apr 2010
Location: Greenville, SC
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996 two-door SE
Model: Cherokee
Engine: 4.0
Default

Fortunately, replacing a waterpump is one of the simpler jobs if you follow the service manual instructions and, therefore, is relatively inexpensive to have done by the repair facility that you use occasionally.
Old 05-26-2010, 07:43 AM
  #10
Newbie
Thread Starter

Jeeperrari's Avatar

Join Date: May 2010
Location: Newport News, VA
Posts: 21
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

sounds like a plan then. I'll give it a shot. is the haynes manual a good one to go by?
Old 05-27-2010, 05:16 AM
  #11
Member

96tudor's Avatar

Join Date: Apr 2010
Location: Greenville, SC
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996 two-door SE
Model: Cherokee
Engine: 4.0
Default

I trust that the Haynes manual will give good instructions on replacing the water pump.

Check prices between new and rebuilt pumps. As I've said, my opinion is to buy new. But you may want to replace hoses and coolant, so get a whole estimate of repair if cost matters.

I use a thin coat of Permatex RTV on both side of the gasket to take up any irregularities in the surfaces and hold the gasket in place. I also use it on bolt threads that enter the water jacket. Don't wait for the RTV to skin over; assemble parts right away.
Old 05-27-2010, 06:01 AM
  #12
Seasoned Member

davida's Avatar

Join Date: May 2009
Location: Wy & OK
Posts: 296
Likes: 0
Received 1 Like on 1 Post
Year: 83 CJ7 & '96 XJ & '97 XJ
Model: Cherokee
Engine: 258ci, 4.0 & 4.0
Default

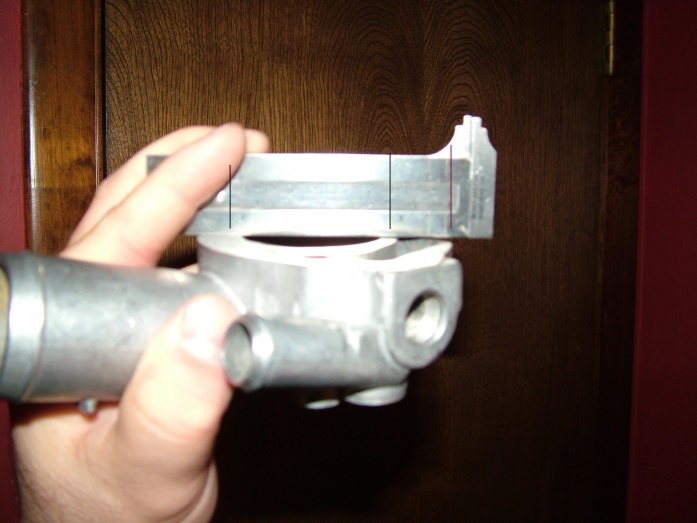

I agree with everyone above, I'd buy new. Take a straight edge with you and check your surfaces, they won't be perfact but some are way worst then others, below is a thermistat housing, it's brand new, I had to take it back, this one was new and you can see how far off it is.
Attached Images
Old 05-27-2010, 06:18 AM
  #13
Junior Member

canoe58's Avatar

Join Date: Feb 2009
Location: Florida
Posts: 75
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Sounds like it could be the water pump. But I would check all hoses and clamps along with the thermo housing too. If it's the water pump I'd go for a new one instead of a rebuilt one. Hayes manuals are helpful for do it yourself.
Old 05-27-2010, 07:42 PM
  #14
Newbie
Thread Starter

Jeeperrari's Avatar

Join Date: May 2010
Location: Newport News, VA
Posts: 21
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Thanks again. I"ll come back with an update.
Old 05-27-2010, 07:46 PM
  #15
CF Veteran

tuxfan212's Avatar

Join Date: Oct 2009
Location: Parrish
Posts: 1,487
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989
Model: Comanche
Engine: 4.0
Default

You probably should change both upper and lower radiator hoses while you are at it. If you find out one of them is leaking after you filled your system up with 30 bucks in coolant you will be pissed. Its cheap easy and keeps you on the safe side.
