connector pinouts
I know, search function, look it up, etc.
I cannot find what I need anywhere.

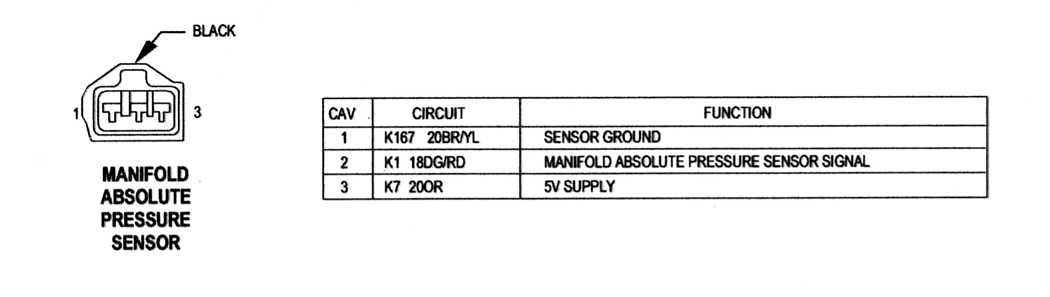

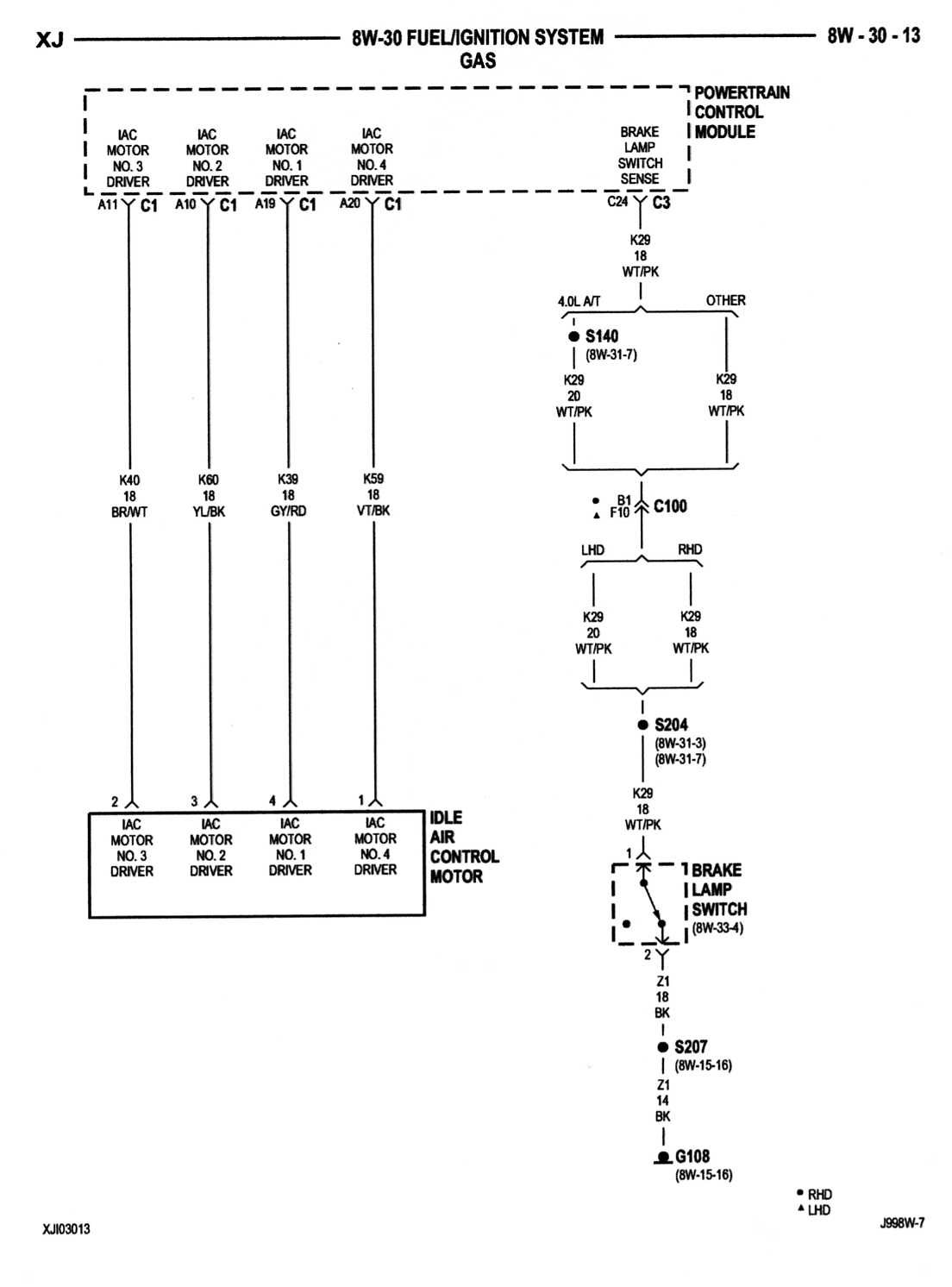

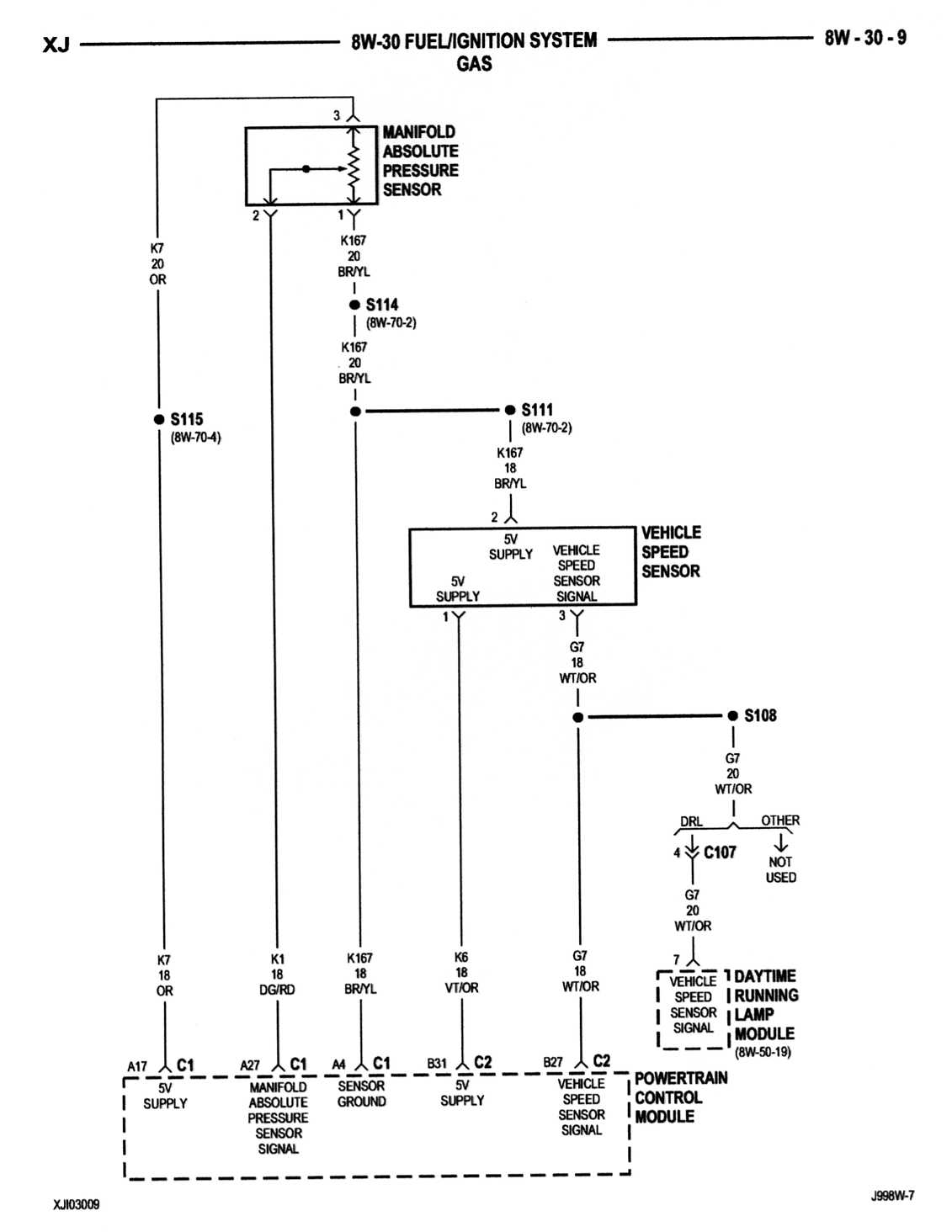

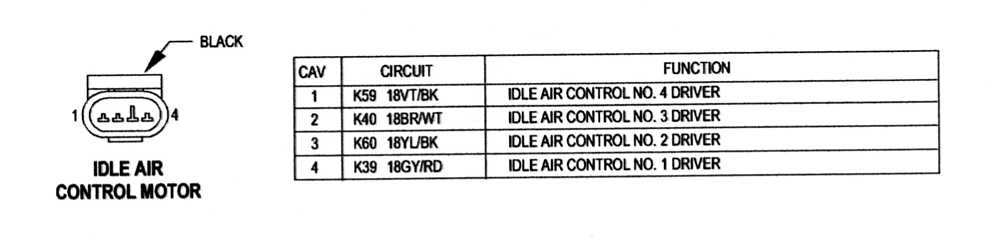

I need the connector pinout for a 99 xj iac valve, I am retrofitting a stock manifold and throttle body from a 99 to my MegaSquirt controlled renix era cherokee, and I found the tps pinout, but I'll also have to have the throttle control and it wouldn't be terrible if someone knew the pins for the MAP sensor as well, although I have an onboard MAP on the MegaSquirt.
I cannot find what I need anywhere.
I need the connector pinout for a 99 xj iac valve, I am retrofitting a stock manifold and throttle body from a 99 to my MegaSquirt controlled renix era cherokee, and I found the tps pinout, but I'll also have to have the throttle control and it wouldn't be terrible if someone knew the pins for the MAP sensor as well, although I have an onboard MAP on the MegaSquirt.
Last edited by n91chriss; 01-01-2014 at 08:51 AM. Reason: a few too many emoticons
#6
Member
Thread Starter
Join Date: Jul 2010
Location: Georgia
Posts: 103
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L HO from a 91 Comanche.
I wired my renix era stepper in to my mega squirt, and I definitely don't remember 4 drivers, seemed like one or two IIRC. I just moved the old stepper to the new throttle, we'll see if it works, bolted right up, pintle shape and length appear identical.
