compressor connector

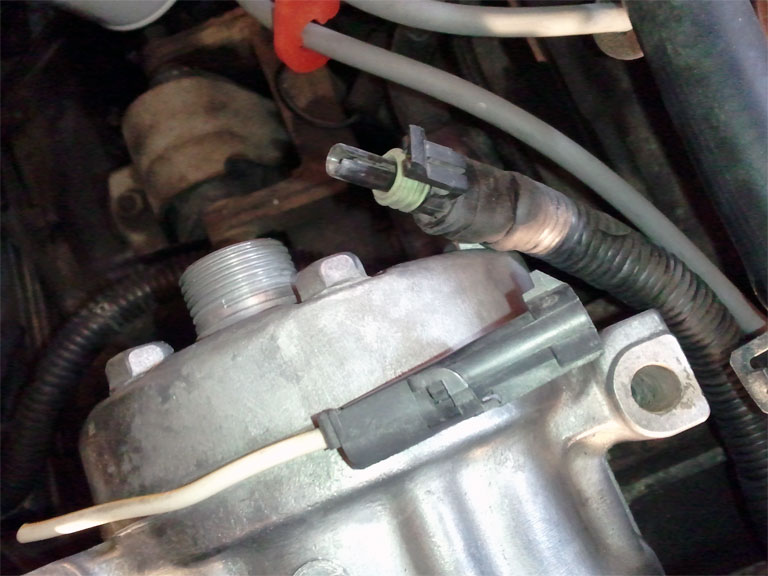

Does anyone know how I would hook up this wire from my Sandon compressor? Im converting to on board air and this connection came with the compressor from the junk yard. Theres two wires coming from the base (hot and a ground) but it turns into one wire after the stock connector in the middle.
Any help would be great.
Any help would be great.
#2
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
the wire that come out of the plg is hot or ground after it plgs into the connector and where is the connection go on comp
#4
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
dont no im asking is that wire hot or ground when the switch that will operate the comp is on and where are the conn on pump
#5
Senior Member
Thread Starter
Join Date: Jan 2010
Location: Westminster Colorado
Posts: 613
Likes: 0
Received 1 Like
on
1 Post
Year: 1991 (2-door)
Model: Cherokee
Engine: 4.0L

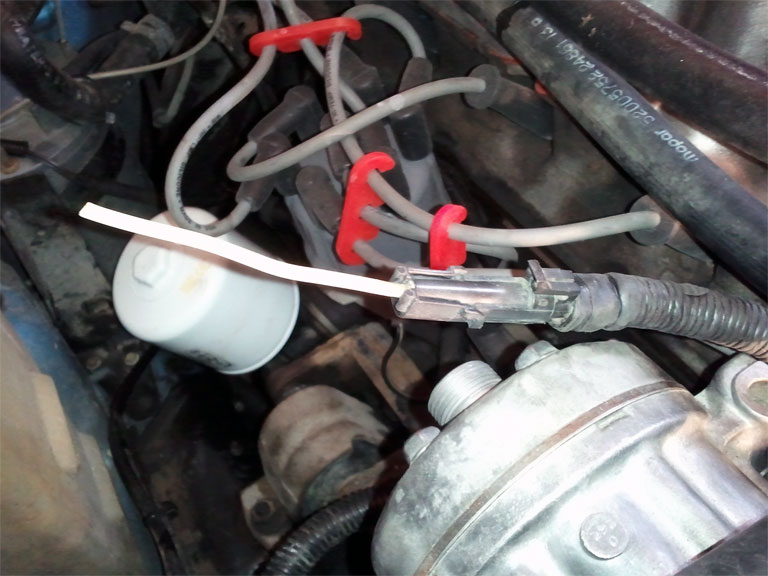

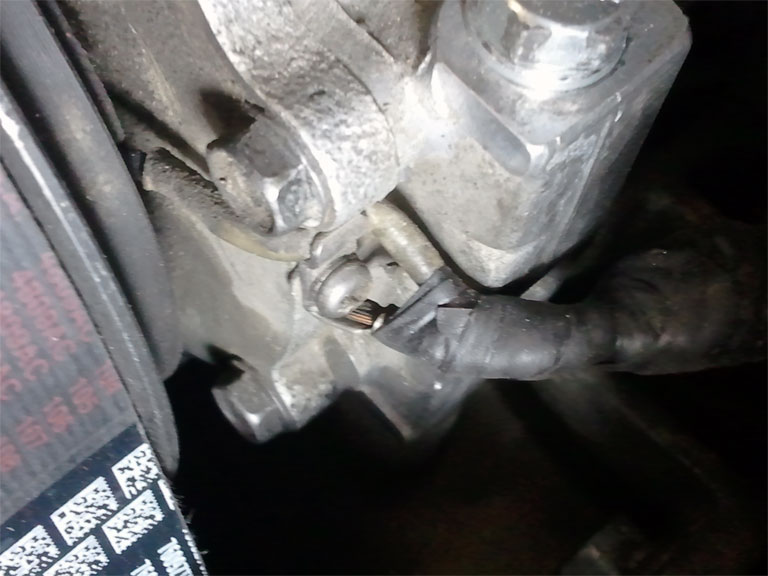

I don't know what that wire is. At the very base of the compressor, there are two wires coming out. One goes inside the compressor casing and the other wire is screwed in to the side of the compressor casing.(ground?) They both run in the same wire loom to a connector plug. There's a connector that plugs into it but there's only one wire coming from it now. It originally ran to a bunch of other wires that ran to the HVAC controls in the donor XJ I pulled it from. Should I ditch the plug harness and run wires from both the ground and power?
#7
Senior Member
Thread Starter
Join Date: Jan 2010
Location: Westminster Colorado
Posts: 613
Likes: 0
Received 1 Like
on
1 Post
Year: 1991 (2-door)
Model: Cherokee
Engine: 4.0L

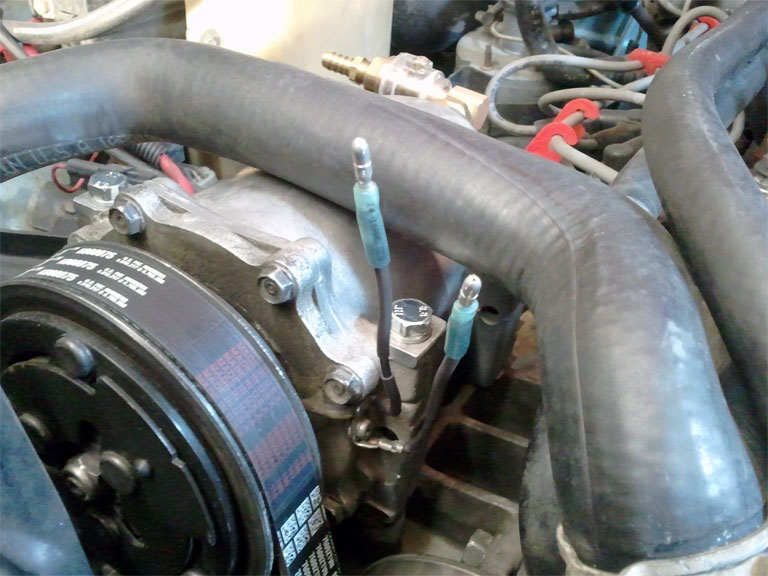

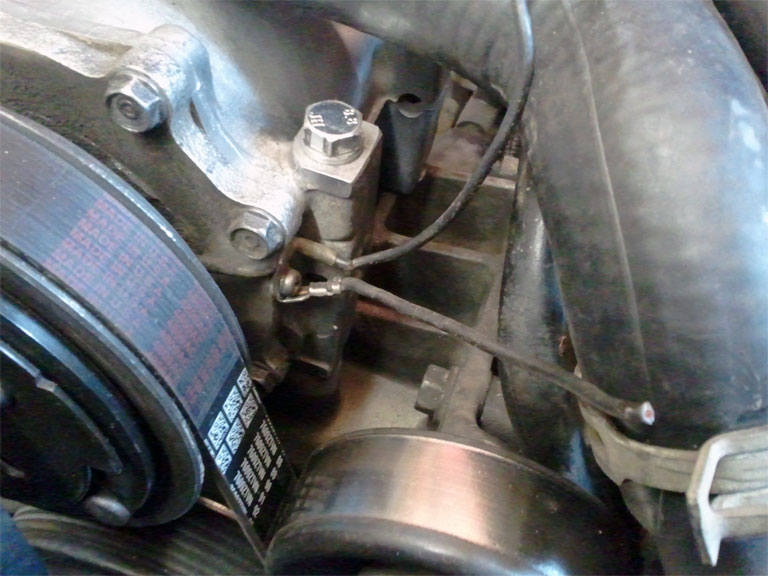

So I split them up and added some slip connectors. Also put some heat shrink around both wires casue they were pretty worn.
I'll probably add a wire loom and some cold shrink to protect it from the block.
Should I really put an in line fuse on the power wire? It will be running to the pressure switch and then to a relay. If it adds more protection, I'll do it.
I'm also taking pics of everything Im doing and plan on doing a write up of a simple reliable OBA set up. If anyone cares...
I'll probably add a wire loom and some cold shrink to protect it from the block.
Should I really put an in line fuse on the power wire? It will be running to the pressure switch and then to a relay. If it adds more protection, I'll do it.
I'm also taking pics of everything Im doing and plan on doing a write up of a simple reliable OBA set up. If anyone cares...
Last edited by flexin91xj; 12-02-2010 at 09:34 AM.
