coil spring woes. PICS inside, please help.
#1
Junior Member
Thread Starter
Join Date: May 2009
Location: south nj
Posts: 93
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
coil spring woes. PICS inside, please help.

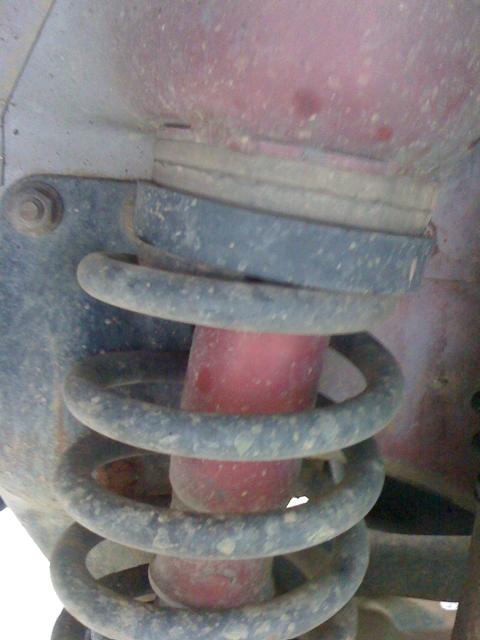

so the story, I just bought the cherokee, was told that the po hit a ditch while wheeling causing the front rear to get knocked out of whack. He installed an adjustable track bar to center the rear back out side-side. I took measurements side-side, front-back, everywhere i could think of and everything came out equal, nice and even all around. the previous owner told me that the driver side spring pocket was bent but me and 2 other mechanics that checked it out couldn't see anything bent or out of whack. the spring just doesn't seem seated properly in the upper pocket, and it also is starting to arch(i'm guessing that means it's going bad?) and it's rubbing on the track bar bracket.
specs on the jeep:
1998 cherokee sport
4.0i6, auto trans, np231 transfer case,
180,000miles
3"rough country full suspension lift not aal.
Hopefully the pics work and someone here can help me figure this out.
specs on the jeep:
1998 cherokee sport
4.0i6, auto trans, np231 transfer case,
180,000miles
3"rough country full suspension lift not aal.
Hopefully the pics work and someone here can help me figure this out.
#2
CF Veteran
Join Date: Oct 2008
Location: Stafford,VA
Posts: 2,543
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
everything looks good from what i can tell other than your sway bar link snapped off....when the axle wraps back like that the normal cure is adjustable lower controll arms........but being you said its only on the driver side is the upper/lower controll arm bent?
#4
Junior Member
Thread Starter
Join Date: May 2009
Location: south nj
Posts: 93
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
from what i can tell none of the arms are bent and I had a tape measure out and measured from the axel tubes on both sides to the frame and everything measured up even so i'm guessing nothing is bent. I didn't think i'd need adjustable arms with just a little 3"lift.
#5
Junior Member
Thread Starter
Join Date: May 2009
Location: south nj
Posts: 93
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
i'm gonna go to autozone tomorrow as long as it's not raining and rent the spring compressor and see what i can figure out. I hope it's just that easy as a reseating lol.
#6
Junior Member
Thread Starter
Join Date: May 2009
Location: south nj
Posts: 93
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
figured yous might want some pics of the rest of the jeep lol. but any other help on the spring issue would be awesome. and it's on some 31x10.5x15 all terrains pretty bald.
#7
Senior Member
Join Date: Jan 2009
Posts: 920
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0
check the bottom of the spring also maybe its not seated correctly it should be sitting in the groove if you look at it you will understand what im talking about sometimes that will cause the spring to be out of wack
Trending Topics
#9
Junior Member
Thread Starter
Join Date: May 2009
Location: south nj
Posts: 93
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
like i said the rear measured center, it has stock control arms and an adjustable track bar and when i measured everything up it came out perfect. it's all the exact same distance front 2 back and side 2 side.
#12
CF Veteran
Join Date: Dec 2008
Location: eaton ohio
Posts: 1,533
Likes: 0
Received 0 Likes
on
0 Posts
Year: 93
Model: Cherokee
Engine: 4.0
what they are saying with the LCA is that when you run stock lca's with a lift the axle will rotate from the differnece in height, just get some adjustable lca's and i bet that will fix the issue, they may be the same length but the just may not be long enough, i kno mine is a lil off as well as my track bar, because of my lift, ive only got two inches so its not too big of a worry with that little bit of height
#13
CF Veteran
Join Date: Feb 2009
Location: socal
Posts: 7,244
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
but that does not mean the axle is where it need to be it looks like it needs to go forward some.
