Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

Clutch Thread #8750

Thread Tools

Search this Thread

Old Jul 7, 2013 | 10:39 PM
  #1
Freeman77's Avatar
Thread Starter
Newbie

Joined: Jul 2013
Posts: 20
Likes: 0
From: Colorado
Year: 1992
Model: Cherokee
Engine: 4.0 L I6
Post Clutch Thread #8750

I bought a 1992 Jeep Cherokee Sport yesterday for $450, its my first car. I bought it knowing there were problems, so I feel like I am going to be around here a lot in the coming months

First off, the clutch!

The Problem: Clutch has issues disengaging, a few pumps gets it working right. It seems that a quick release of the pump helps more then a quick press. Oddly enough it doesnt seem to be a constant problem, i drove it a half hour in a parking lot (Stop/go, Im still learning to drive a Manuel) and had no issues, then randomly had issues again.


The Solution: I searched around the forums and the interwebs and it looks like a bad Slave. Is this correct? We are bleeding it tomorrow morning just to eliminate that as a problem.

Thanks,
-Joe


EDIT, i realized i hardly even asked a question. I need to confirm that it is the slave (or sure enough) before i go ahead and drop the tranny.

If it isnt, and i do end up dropping the tranny (i think the rear seal on the engine block leaks) would it be worth it to go ahead and replace the slave?

Last edited by Freeman77; Jul 8, 2013 at 12:51 AM.
Reply
Old Jul 8, 2013 | 07:26 AM
  #2
XJ Sam's Avatar
Junior Member

Joined: Jun 2013
Posts: 89
Likes: 0
From: SW Virginia
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

I would bleed it first before pulling anything. Check for any leaks in the fluid as well. Check your fluid and make sure you aren't low/having to add fluid. That would indicate a leak some where.

As for the rear main, if you can fix the clutch issues by a simple bleed, the rear main seal is a two piece seal. You can drop the oil pan and change it without having to pull the transmission.
Reply
Old Jul 8, 2013 | 08:42 AM
  #3
94JeepCherokeeMan's Avatar
CF Veteran

Joined: Jun 2011
Posts: 1,023
Likes: 1
From: Southern Idaho
Year: 1994
Model: Cherokee
Engine: 4.0 L/242 CID I-6 High Output MFI
Default

You're correct in your diagnostic. It sounds very much like a cylinder problem, but simply giving it fresh fluid and bleeding it would be a quick, cheap, and super simple check. The cylinder can be removed w/out dropping the transmission if I remember correctly.
Reply
Old Jul 8, 2013 | 11:45 AM
  #4
Freeman77's Avatar
Thread Starter
Newbie

Joined: Jul 2013
Posts: 20
Likes: 0
From: Colorado
Year: 1992
Model: Cherokee
Engine: 4.0 L I6
Default

Mine is an internal cylinder, I do believe you must drop it to replace it.

XJ Sam, I had no idea you could just drop the oil pan. Thanks!
Reply
Old Jul 8, 2013 | 10:04 PM
  #5
Freeman77's Avatar
Thread Starter
Newbie

Joined: Jul 2013
Posts: 20
Likes: 0
From: Colorado
Year: 1992
Model: Cherokee
Engine: 4.0 L I6
Default

UPDATE: I bled the system today, it was REALLY dirty with a TON of bubbles. Clutch feels firmer, more reliable but still had a few intermittent issues when downshifting into 2nd. It wouldn't get into gear.

Still the slave? Could it be the master?
Reply
Old Jul 9, 2013 | 02:17 AM
  #6
DFlintstone's Avatar
CF Veteran

Joined: Aug 2011
Posts: 10,489
Likes: 24
From: Nor-Cal Coast
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Default

I'd bleed it again. I'm pretty confident saying a bad slave would leak. It's as simple as a rear brake cylinder. If it's well bled, isn't leaking or losing fluid, I'd look at the master before I'd go after the slave.

Years ago I was pretty pissed. I'd normally clean up the bore and just install new rubber. I forget if the kit for the master cyl. was N/A or just nutty expensive. I needed to give them mine, and $165....for one with $2 worth of new rubber in it.

My dad would slot a piece of garden hose to fit emery paper on a drill to clean such things. (I have a hone)

Last edited by DFlintstone; Jul 9, 2013 at 03:22 AM.
Reply
Old Jul 9, 2013 | 03:12 PM
  #7
Freeman77's Avatar
Thread Starter
Newbie

Joined: Jul 2013
Posts: 20
Likes: 0
From: Colorado
Year: 1992
Model: Cherokee
Engine: 4.0 L I6
Default

Hm okay. I might do that later.

On the bright side I pulled my valve cover gasket off (it was leaking bad) and the inside looked nice and clean because it was leaking so much and got so much fresh oil through it! The cover is getting enameled red xD
Reply
Old Jul 9, 2013 | 03:27 PM
  #8
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Autozone 40 bucks life time warranty.
Reply
Old Jul 9, 2013 | 03:29 PM
  #9
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Originally Posted by Freeman77
Hm okay. I might do that later.

On the bright side I pulled my valve cover gasket off (it was leaking bad) and the inside looked nice and clean because it was leaking so much and got so much fresh oil through it! The cover is getting enameled red xD
Using felpro blue gasket is highly recomonded...
Reply
Old Jul 9, 2013 | 03:39 PM
  #10
94JeepCherokeeMan's Avatar
CF Veteran

Joined: Jun 2011
Posts: 1,023
Likes: 1
From: Southern Idaho
Year: 1994
Model: Cherokee
Engine: 4.0 L/242 CID I-6 High Output MFI
Default

Felpro, Felpro, Felpro... Every time.
Reply
Old Jul 9, 2013 | 05:01 PM
  #11
Freeman77's Avatar
Thread Starter
Newbie

Joined: Jul 2013
Posts: 20
Likes: 0
From: Colorado
Year: 1992
Model: Cherokee
Engine: 4.0 L I6
Default

Way ahead of you guys haha thanks anyway.
Reply
Old Jul 9, 2013 | 08:33 PM
  #12
Freeman77's Avatar
Thread Starter
Newbie

Joined: Jul 2013
Posts: 20
Likes: 0
From: Colorado
Year: 1992
Model: Cherokee
Engine: 4.0 L I6
Default

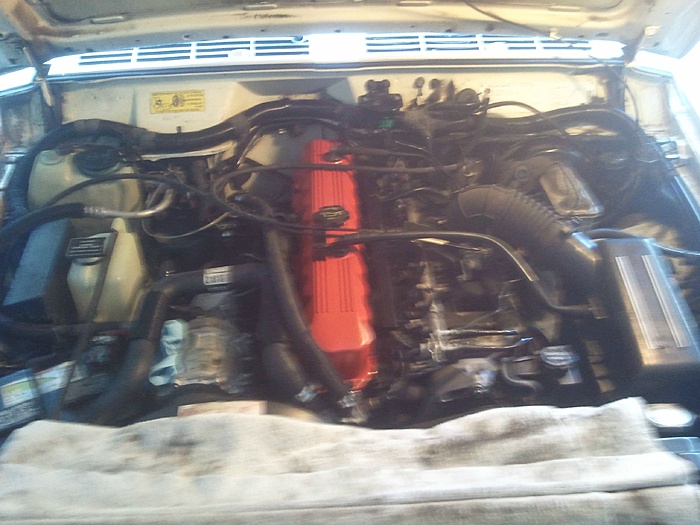

Valve cover is back on! Lets see if that was the only source of the leak


I also painted it red. Any vacuum tubing that needs to be replaced will be red. I think i might try to find red spark plug wires as well.

Sorry for crappy pic, i think my phone was dusty.
Clutch Thread #8750-3q2nizk.jpg
Reply
Old Jul 10, 2013 | 12:09 AM
  #13
94JeepCherokeeMan's Avatar
CF Veteran

Joined: Jun 2011
Posts: 1,023
Likes: 1
From: Southern Idaho
Year: 1994
Model: Cherokee
Engine: 4.0 L/242 CID I-6 High Output MFI
Default

Taylor wires and MSD wires are red in color. I've been wanting to do red and chrome accents, too.
Reply
Old Jul 10, 2013 | 01:26 PM
  #14
Freeman77's Avatar
Thread Starter
Newbie

Joined: Jul 2013
Posts: 20
Likes: 0
From: Colorado
Year: 1992
Model: Cherokee
Engine: 4.0 L I6
Default

Thanks for the info. valve cover was NOT the only leak. i think there might be two others.

I wonder if i should just make another thread for all of my other issues, I self hijacked my clutch thread (mostly because im procrastinating bleeding it again).
Reply
Old Jul 10, 2013 | 01:30 PM
  #15
94JeepCherokeeMan's Avatar
CF Veteran

Joined: Jun 2011
Posts: 1,023
Likes: 1
From: Southern Idaho
Year: 1994
Model: Cherokee
Engine: 4.0 L/242 CID I-6 High Output MFI
Default

You will most likely have one at the oil adapter housing/engine interface. There's a couple o-rings that get thrashed and just about every XJ will have a leak there if it hasn't been replaced in the last 100k miles.
Reply
