Chrysler 8.25 identification
Is there any way to tell if a 8.25 is a 27 or 29 spline without pulling the axles out and counting the splines? Is there a date stamp or code or something? Its cold outside, Im feeling lazy and hoping there is an easy answer.
12-03-2011, 03:37 PM
#2
Senior Member
Join Date: Dec 2009
Location: zeeland mi
Posts: 538
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
other than taking it apart and counting you can contact crysler and they will send you the spec sheet on your jeep. here is the link
http://www.jeep.com/webselfservice/jeep/index.jsp
click on i need customer assistance then click on send us an email then fill out the form. they will email it to you or you can call the number on the contact us page and they can tell you.
http://www.jeep.com/webselfservice/jeep/index.jsp
click on i need customer assistance then click on send us an email then fill out the form. they will email it to you or you can call the number on the contact us page and they can tell you.
Last edited by greengoblin; 12-03-2011 at 03:39 PM.
12-03-2011, 05:40 PM
#3
Senior Member
Join Date: Jan 2011
Location: Upstate N.Y
Posts: 689
Likes: 0
Received 1 Like
on
1 Post
Year: 2000.1999,1996
Model: Cherokee
Engine: 4.0
Late 1996 -2001 8.25 rear axle are all 29 spline.Late means last quarter of the year.(I believe)
Last edited by 413maxwedge; 12-06-2011 at 03:35 PM.
12-03-2011, 05:52 PM
#4
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO

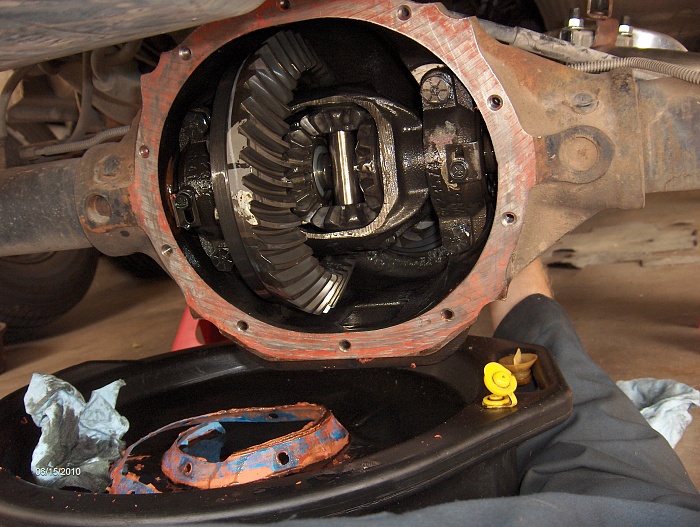

Wouldn't a late '96 be like the second quarter of '96? Might be able to count the splines just by removing the cover, not positve.
Last edited by djb383; 12-03-2011 at 06:01 PM.
Trending Topics
12-03-2011, 10:37 PM
#9
Senior Member
Join Date: Nov 2011
Location: Roanoke VA
Posts: 647
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
One of my 96 XJ's came with the 29 spline 8.25 from the factory. It was a changeover year so many of the later build dates got it.
One interesting note about the 8.25 is that it is used in the Jeep Commander. I have a 5.7 Hemi Commander and it has the 8.25
What is most interesting about that fact is that in the Commander the 8.25 is a "full floater"! The center section is identical. They are known to hold up very well under towing conditions and even with a 380hp beast twisting it.
One interesting note about the 8.25 is that it is used in the Jeep Commander. I have a 5.7 Hemi Commander and it has the 8.25
What is most interesting about that fact is that in the Commander the 8.25 is a "full floater"! The center section is identical. They are known to hold up very well under towing conditions and even with a 380hp beast twisting it.
12-04-2011, 04:22 PM
#11
Senior Member
Join Date: Nov 2011
Location: Roanoke VA
Posts: 647
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I honestly never looked or cared, I'm a mechanic and set-up diffs so I just got out of some work on that one. I usually convert 27 splines over to 29 by installing lockers and alloy shafts anyway. The housings are identical, the carriers/shafts are the only thing that needs to be swapped.
