Default Cherokee fluid everywhere help

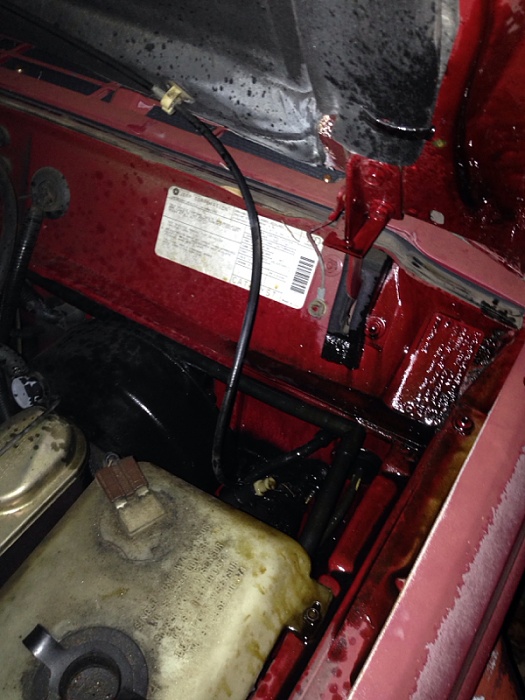

I just got a 89 Cherokee 4x4 automatic drove an hour home and seen smoke popped hood and there either oil or brake fluid all over the firewall area??? Smell like rotten eggs my wife said lol idk but the power steering doesn't work it was completely empty so I don't think it was that
Attached Thumbnails Cherokee fluid everywhere help-image-627471654.jpg
Reply
Old Nov 14, 2014 | 07:36 PM
  #2
mentalbreakdown00's Avatar
CF Veteran

Joined: Jan 2011
Posts: 1,648
Likes: 0
From: Havana fl
Year: 1995
Model: Cherokee
Engine: 4.0L
Default

if p/s is empty and not working you may have blown the high pressure p/s hose..
Reply
Old Nov 14, 2014 | 07:45 PM
  #3
jonwalden68's Avatar
Thread Starter
Seasoned Member

Joined: Jun 2012
Posts: 309
Likes: 0
Default

Even though it been that way for 6 months
Reply
Old Nov 14, 2014 | 08:08 PM
  #4
mentalbreakdown00's Avatar
CF Veteran

Joined: Jan 2011
Posts: 1,648
Likes: 0
From: Havana fl
Year: 1995
Model: Cherokee
Engine: 4.0L
Default

well what else is low? And if youve been driving around with no power steering fluid in the pump im suprised it hasnt locked up and broken the belt
Reply
Old Nov 14, 2014 | 08:12 PM
  #5
jonwalden68's Avatar
Thread Starter
Seasoned Member

Joined: Jun 2012
Posts: 309
Likes: 0
Default

I haven't been driving i bought it that way the guy said it been driving that way I only have driven home. Oil is good level power steering was empty when I left from his house but I made it 35 miles then saw smoke popped hood and it was smoking from the fluid dropping on exhaust but it's all over the firewall I couldn't get the best pics
Reply
Old Nov 14, 2014 | 08:47 PM
  #6
Crazy 8s's Avatar
Senior Member

Joined: Sep 2014
Posts: 896
Likes: 2
From: Phoenix, A-to-Z
Year: 1988
Model: Cherokee
Engine: 4.0
Default

The power steering reservoir may have been empty, or appeared empty, but there could have been fluid in the hose..and now that hose may have burst. The location of the junk that your picture showed is where it would have gone too...

It may be brake fluid instead, but brake fluid is pretty clear and not dark like that.

Dig in and see if you need to fix it. If your brakes are working then it is likely the power sterring. Go to the JY and get the parts and fix it up!

Hope this helps!
Reply
Old Nov 14, 2014 | 08:50 PM
  #7
jonwalden68's Avatar
Thread Starter
Seasoned Member

Joined: Jun 2012
Posts: 309
Likes: 0
Default

Could it be vent from tranny isn't the hose there
Reply
Old Nov 14, 2014 | 10:28 PM
  #8
jonwalden68's Avatar
Thread Starter
Seasoned Member

Joined: Jun 2012
Posts: 309
Likes: 0
Default

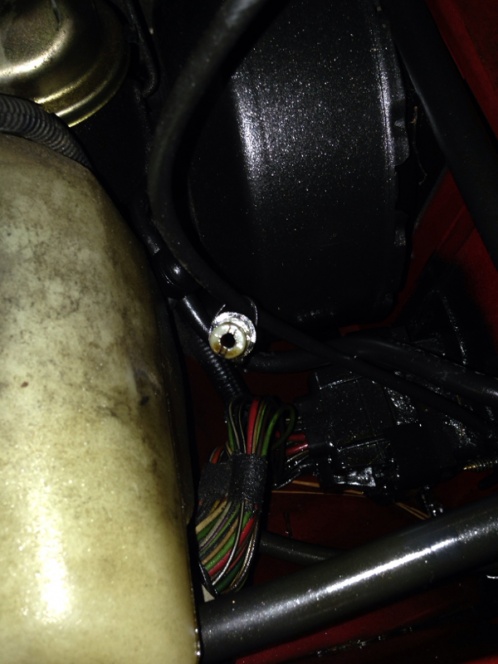

Is this transmission vent line
Attached Thumbnails Cherokee fluid everywhere help-image-2197285231.jpg
Reply
Old Nov 14, 2014 | 10:37 PM
  #9
Rogue4x4's Avatar
::CF Administrator::
Premium Member
10 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2011
Posts: 14,479
Likes: 805
From: Blunt, South Dakota
Year: 97
Model: Cherokee (XJ)
Engine: 4.6 stroker
Default

You'll find out if it's brake fluid really quick...when your paint starts to bubble up and peel off...use a damp rag and wipe the areas down, just in case. Brake fluid is hygroscopic, water is your friend here...
Reply
Old Nov 14, 2014 | 11:02 PM
  #10
jonwalden68's Avatar
Thread Starter
Seasoned Member

Joined: Jun 2012
Posts: 309
Likes: 0
Default

The Brake fluid is full. It doesn't smell the same as brake fluid did and the color doesn't match trans fluid it's very slippery feeling here's pic of rag that I wiped it up
Attached Thumbnails Cherokee fluid everywhere help-image-1862840151.jpg
Reply
Old Nov 14, 2014 | 11:14 PM
  #11
mentalbreakdown00's Avatar
CF Veteran

Joined: Jan 2011
Posts: 1,648
Likes: 0
From: Havana fl
Year: 1995
Model: Cherokee
Engine: 4.0L
Default

look at the p/s hose
Reply
Old Nov 14, 2014 | 11:16 PM
  #12
93_xjcherokee's Avatar
Banned

Joined: Oct 2014
Posts: 17
Likes: 9
From: tucson
Year: 1992
Model: Cherokee
Engine: 4.0
Default

Its brown Cuz its dirty. I agree with everyone else. Check the power steering hose
Reply
Old Nov 14, 2014 | 11:33 PM
  #13
jonwalden68's Avatar
Thread Starter
Seasoned Member

Joined: Jun 2012
Posts: 309
Likes: 0
Default

Ok I will do that in the morning
Reply
Old Nov 15, 2014 | 12:04 PM
  #14
jonwalden68's Avatar
Thread Starter
Seasoned Member

Joined: Jun 2012
Posts: 309
Likes: 0
Default

Ok I think I figured it out the vent hose was from transfercase and it was stuck in 4wd so it transfer case fluid going to try to get 4wd to engage to 2wd i goes that why the 4wd part time bulb was gone
Reply
Old Nov 15, 2014 | 06:50 PM
  #15
Firehawk068's Avatar
Senior Member

Joined: Jul 2011
Posts: 731
Likes: 3
Default

It looks like fluid from your front diff vent...............
If it smells really bad, and is brown and thick, it is most likely gear-lube.
The transfer case should have ATF in it, and should be red in color, and somewhat thin fluid..............doesn't smell as bad............

If it was stuck in 4WD and one of your front tires is smaller than the other one, you will have alot of binding going on....................I have seen this happen on someone else's XJ last year.............Blew front diff fluid out of the vent hose, all over the engine compartment in the exact same place as the picture you posted.
He said it felt like the brakes were on driving down the road....................
(He blew a tire on the trail, put his little donut spare on, and forgot to take it out of 4WD and proceeded to drive down the highway like that...........Didn't make it very far)

One of the reasons I always carry a spare that's the same tire I run on the other 4 wheels.................
