CCV valve
04-20-2018, 10:05 PM
#16
Senior Member
you do not have to go to a dealer to get the parts. The self help section at O'Reilly auto parts has the parts. rear tube 47057(grey). Front 47079(black) and gromment 42344. If you have trouble finding the front elbow, purchase an extra rear one and drill a 3/8th hole in it.
04-21-2018, 03:24 PM
#17
Newbie
Join Date: Feb 2017
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
you do not have to go to a dealer to get the parts. The self help section at O'Reilly auto parts has the parts. rear tube 47057(grey). Front 47079(black) and gromment 42344. If you have trouble finding the front elbow, purchase an extra rear one and drill a 3/8th hole in it.
Last edited by 2000tj07; 04-21-2018 at 03:31 PM.
04-21-2018, 09:41 PM
#18
Old fart with a wrench
Guys! I've heard rumors you can soften up the rubber with a tiny bit of brake fluid to get them out. Has anyone done this?
04-22-2018, 10:59 AM
#19
Newbie
Join Date: Feb 2017
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
05-07-2018, 07:48 AM
#22
Newbie
Join Date: Apr 2018
Location: Pottstown, PA
Posts: 14
Likes: 0
Received 1 Like
on
1 Post
Year: 1995
Model: Cherokee (XJ)
Engine: 4.0L

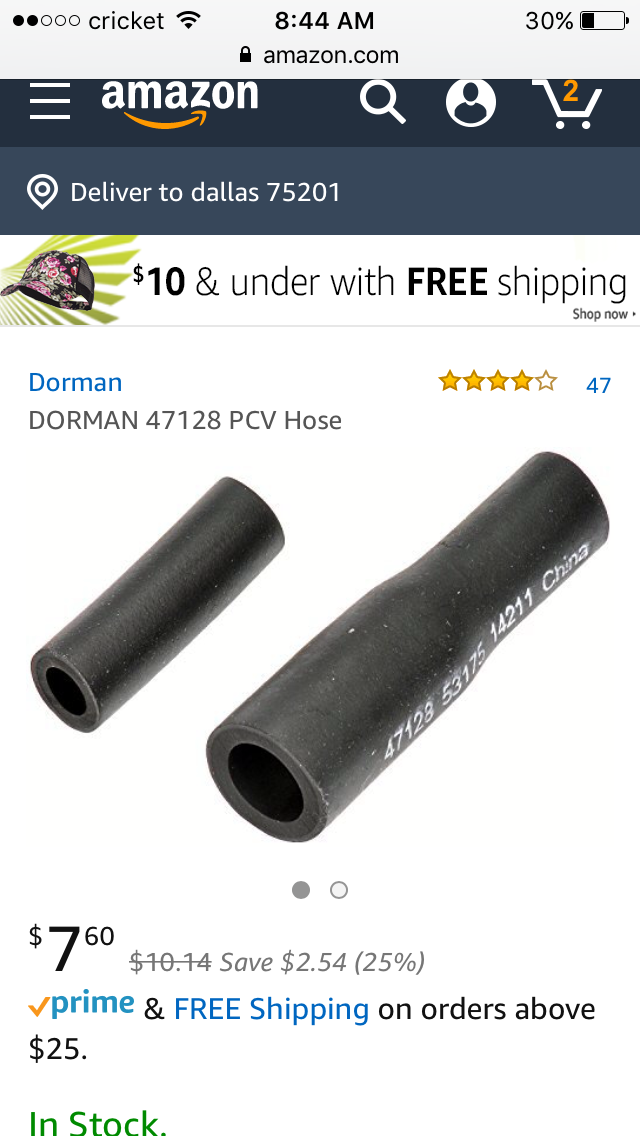

I am looking for the following as well. I need the runner piece for the rear and front. That connects the elbows to the hoses. I believe the front is the straight connector hose which I see above if that works please let me know. The back one is the larger opening to the smaller opening. Does anyone know where to find that? Mine literally broke apart in my hand.
05-07-2018, 10:20 AM
#23
Newbie
Join Date: Feb 2017
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I am looking for the following as well. I need the runner piece for the rear and front. That connects the elbows to the hoses. I believe the front is the straight connector hose which I see above if that works please let me know. The back one is the larger opening to the smaller opening. Does anyone know where to find that? Mine literally broke apart in my hand.
05-08-2018, 08:17 AM
#24
Newbie
Join Date: Apr 2018
Location: Pottstown, PA
Posts: 14
Likes: 0
Received 1 Like
on
1 Post
Year: 1995
Model: Cherokee (XJ)
Engine: 4.0L
I mean don't you think you could just cap off the elbow and then drill a hole in the cap and insert the small tube into the hole? Just trying to think out of the box here
05-08-2018, 03:21 PM
#25
Newbie
Join Date: Feb 2017
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Did you break the tube between the elbow and the intake manifold or the one to the airbox? If your talking about drilling into the ccv valve itself then no you cant.
05-09-2018, 08:07 AM
#26
Newbie
Join Date: Apr 2018
Location: Pottstown, PA
Posts: 14
Likes: 0
Received 1 Like
on
1 Post
Year: 1995
Model: Cherokee (XJ)
Engine: 4.0L
The tube is not broke. The fitting into the intake manifold is perfect too. It is the rubber fitting that is from the elbow out of the valve cover to the tube. There is a rubber piece that connects the 2 because they are difference sizes. The front tube and fittings I got and fit perfect. It is the back one that I am having problems finding just the fitting. It is a rubber kind of thing. It is just tough to duplicate with how you are connecting 2 difference sizes.
05-10-2018, 05:45 AM
#27
Newbie
Join Date: Feb 2017
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
The tube is not broke. The fitting into the intake manifold is perfect too. It is the rubber fitting that is from the elbow out of the valve cover to the tube. There is a rubber piece that connects the 2 because they are difference sizes. The front tube and fittings I got and fit perfect. It is the back one that I am having problems finding just the fitting. It is a rubber kind of thing. It is just tough to duplicate with how you are connecting 2 difference sizes.
05-10-2018, 04:16 PM
#28
CF Veteran
Join Date: Oct 2015
Posts: 7,355
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)
03-18-2020, 10:15 PM
#30
I ordered these parts from Advanced Auto Parts earlier this month. I plan on replacing the valve cover gasket and the grommets on my '01 Sport. The PCV elbow from Dorman Help - part number 47057 was $5.50. The crankcase ventilation filter from BWD - part number EC242 was $5.79. The Dorman PCV elbow was in stock but the BWD CCV was only available as "ship to home". As an alternative, I think you can get them from the dealer for about $8.00 each.
will it work for a 94 cherokee 4.0?
