cat removal and 02 sensor

Thread Tools

Search this Thread

Old Mar 10, 2011 | 11:13 AM
  #16
djb383's Avatar
CF Veteran

Joined: Nov 2009
Posts: 8,172
Likes: 17
From: The Republic of TEXAS
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

The old pieces ('98) are slip fit/clamp on. Only place old exhaust is welded is tailpipe to muff.
Old Mar 10, 2011 | 12:53 PM
  #17
MountPXJ's Avatar
Newbie

Joined: Mar 2011
Posts: 10
Likes: 0
From: Mount Pleasant, SC
Year: 1998
Model: Cherokee
Engine: 4.0
Default

So I should just be able to knock it free with a hammer?
Since it's been on there for 13 years I'm thinking that it has possibly "melded" itself on with all the heat.
Will hammering it out put stress on the front pipe or headers and cause a crack?
Old Mar 10, 2011 | 12:57 PM
  #18
AeroSynch's Avatar
CF Veteran

Joined: Nov 2010
Posts: 1,686
Likes: 1
From: Miami
Year: 1999
Model: Cherokee
Engine: 4.0
Default

My exhaust from the muffler back fell off when I kicked it while installing my leaf springs.

A hammer will be more than enough.
Old Mar 10, 2011 | 01:00 PM
  #19
89Laredo's Avatar
CF Veteran
15 Year Member

Joined: May 2009
Posts: 10,436
Likes: 72
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by AeroSync
My exhaust from the muffler back fell off when I kicked it while installing my leaf springs.

A hammer will be more than enough.
you live in an area with less rust...
Old Mar 10, 2011 | 01:19 PM
  #20
djb383's Avatar
CF Veteran

Joined: Nov 2009
Posts: 8,172
Likes: 17
From: The Republic of TEXAS
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

Originally Posted by MountPXJ
So I should just be able to knock it free with a hammer?
Since it's been on there for 13 years I'm thinking that it has possibly "melded" itself on with all the heat.
Will hammering it out put stress on the front pipe or headers and cause a crack?
I'd be real careful with a hammer for fear of placing a strain on the pipe and manifold ahead of the cat. Shoot some penetrating oil in the slip fit joint, remove clamp and try a twisting motion while pulling back. Me thinks the muff/tailpipe should come off 1st, then the cat, then slip on new cat, then new muff.

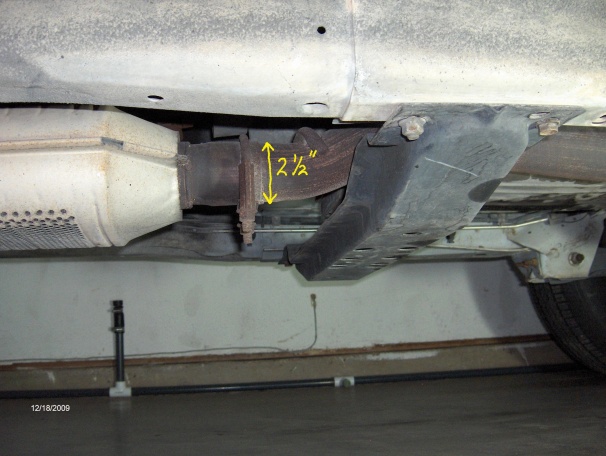

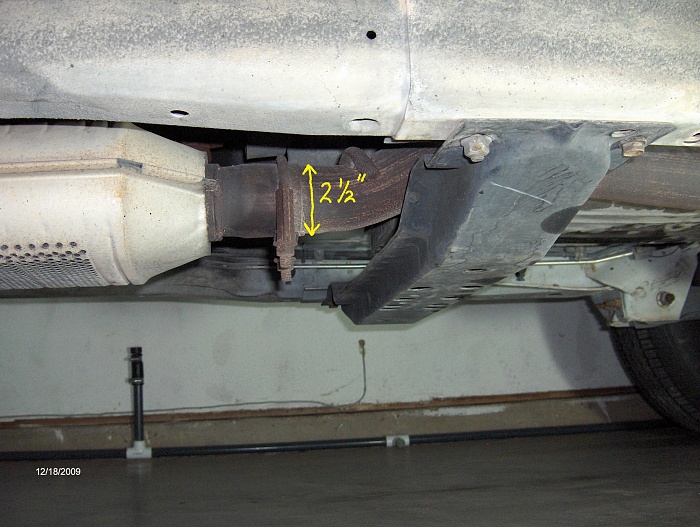

Attached Thumbnails cat removal and 02 sensor-004.jpg
Old Mar 10, 2011 | 02:35 PM
  #21
MountPXJ's Avatar
Newbie

Joined: Mar 2011
Posts: 10
Likes: 0
From: Mount Pleasant, SC
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Great I'll take some before and after pics and document any pitfalls I encounter.
Old Mar 10, 2011 | 04:20 PM
  #22
Gee oh Dee's Avatar
CF Veteran

Joined: Sep 2010
Posts: 21,168
Likes: 5
From: Milwaukee, WI
Year: 1987
Engine: Check
Default

Originally Posted by AeroSync
That, and you will get crappy MPGs etc.
Nope. Not true.

Originally Posted by 1991Jeep_Man
First off, it isn't possible. The post-cat sensor will detect the untreated exhaust and throw a code. Removal of the sensor will throw a code.
Have you ever tried running your truck without the cat? Have you ever tried doing so without unplugging your rear o2 sensor?

I know the CEL won't get tripped unless the rear o2 sensor is removed completely.

Someone who posted in this thread knows it too.

Now, is it legal?

No.

Is it good?

No.
Old Mar 10, 2011 | 04:34 PM
  #23
djb383's Avatar
CF Veteran

Joined: Nov 2009
Posts: 8,172
Likes: 17
From: The Republic of TEXAS
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

See post #8.
Old Mar 10, 2011 | 04:55 PM
  #24
Gee oh Dee's Avatar
CF Veteran

Joined: Sep 2010
Posts: 21,168
Likes: 5
From: Milwaukee, WI
Year: 1987
Engine: Check
Default

Originally Posted by djb383
See post #8.
Wonder who I was talking about...
Old Mar 10, 2011 | 05:49 PM
  #25
djb383's Avatar
CF Veteran

Joined: Nov 2009
Posts: 8,172
Likes: 17
From: The Republic of TEXAS
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

.....3 guesses and the 1st 2 don't count. Bingo, he wins a rubber dolly. But hey, at least I was being stealthy about it. Probably toast now.

Last edited by djb383; Mar 10, 2011 at 05:51 PM.
Old Mar 10, 2011 | 06:42 PM
  #26
mr baer's Avatar
Seasoned Member

Joined: Apr 2010
Posts: 322
Likes: 0
From: Tauranga, New Zealand
Year: 1994
Model: Cherokee
Engine: 4.0L
Default

I have a '94 with no cat sensor, doesnt through a code.
nether does my brothers '97
or dads '96 wrongler
Old Mar 10, 2011 | 07:14 PM
  #27
djb383's Avatar
CF Veteran

Joined: Nov 2009
Posts: 8,172
Likes: 17
From: The Republic of TEXAS
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

No O2(s) and no CEL/codes???????? Didn't think OBD-I had an after cat O2.

Last edited by djb383; Mar 10, 2011 at 07:16 PM.
Old Mar 11, 2011 | 10:12 AM
  #28
Gee oh Dee's Avatar
CF Veteran

Joined: Sep 2010
Posts: 21,168
Likes: 5
From: Milwaukee, WI
Year: 1987
Engine: Check
Default

Originally Posted by djb383
But hey, at least I was being stealthy about it. Probably toast now.
my bad.
Old Mar 11, 2011 | 11:29 AM
  #29
blue_on_blackXJ's Avatar
Senior Member

Joined: Dec 2010
Posts: 726
Likes: 0
From: Leadville Co
Year: 2000
Model: Grand Cherokee
Engine: 4.7
Default

Sorry to hijack here but could someone tell me why my 91 has no o2 sensor after the cat, only on the downpipe? I thought renix ended in 90 and only had one on the downpipe.
Old Mar 11, 2011 | 11:44 AM
  #30
captainofiron's Avatar
CF Veteran

Joined: Apr 2009
Posts: 1,109
Likes: 3
From: Austin, Texas
Year: 1991
Engine: 4.0 I-6 H.O.
Default

Originally Posted by blue_on_blackXJ
Sorry to hijack here but could someone tell me why my 91 has no o2 sensor after the cat, only on the downpipe? I thought renix ended in 90 and only had one on the downpipe.
obd2 has one down stream to see if the cat is functioning properly
