Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go hereXJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

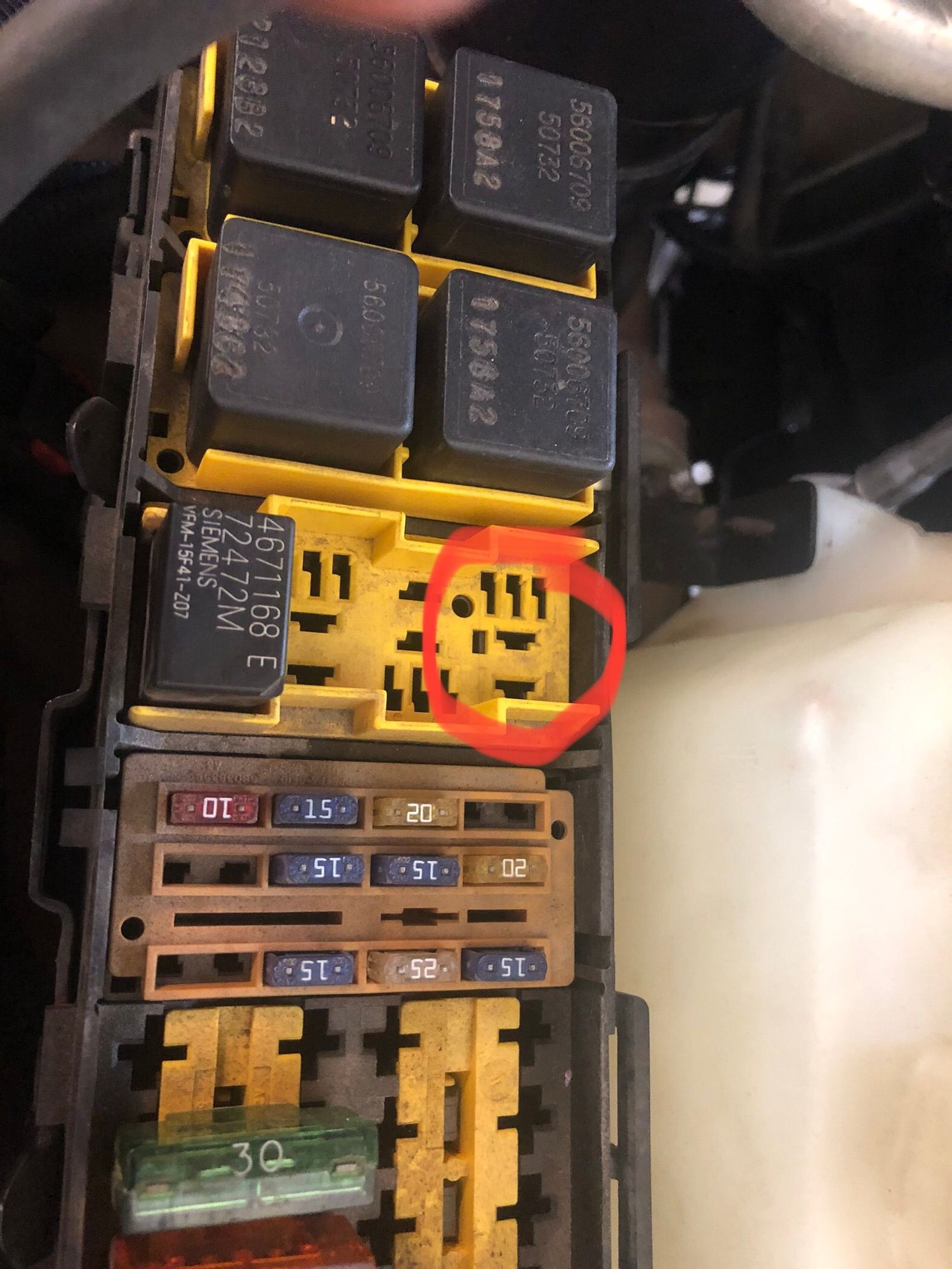

Soo. Tried to fire up the ac in the Cherokee and got nothing but warm air. Didn’t think it would have a leak since I installed a new evap core last year and had the system charged. First thing I went to check was the fuses/relays and I don’t even have a ac relay. The pic below shows where it should go, as it’s labeled ac fan.
I’m the only one that’s been under the hood since getting tha system charged, am I missing something here?
1999 XJ with factory air.
TIA
You're looking at the pic wrong. The AC relay is the one one the left side of that bank. The one you circled is for the Anti-lock brakes. The other 2 are fog lights.
