What does "fml" mean?

Yes, you would have to nuke the dash to get at that tube. It goes from the firewall, over the HVAC Unit, to a quick disconnect, to the Mode Selector. You would be splicing the new tube to the original tube with a rubber hose before it gets to the quick disconnect. See pic.

Are you saying you don't have a bit of the tube sticking out of the engine bay side of the firewall so you can do the fix, as shown above?

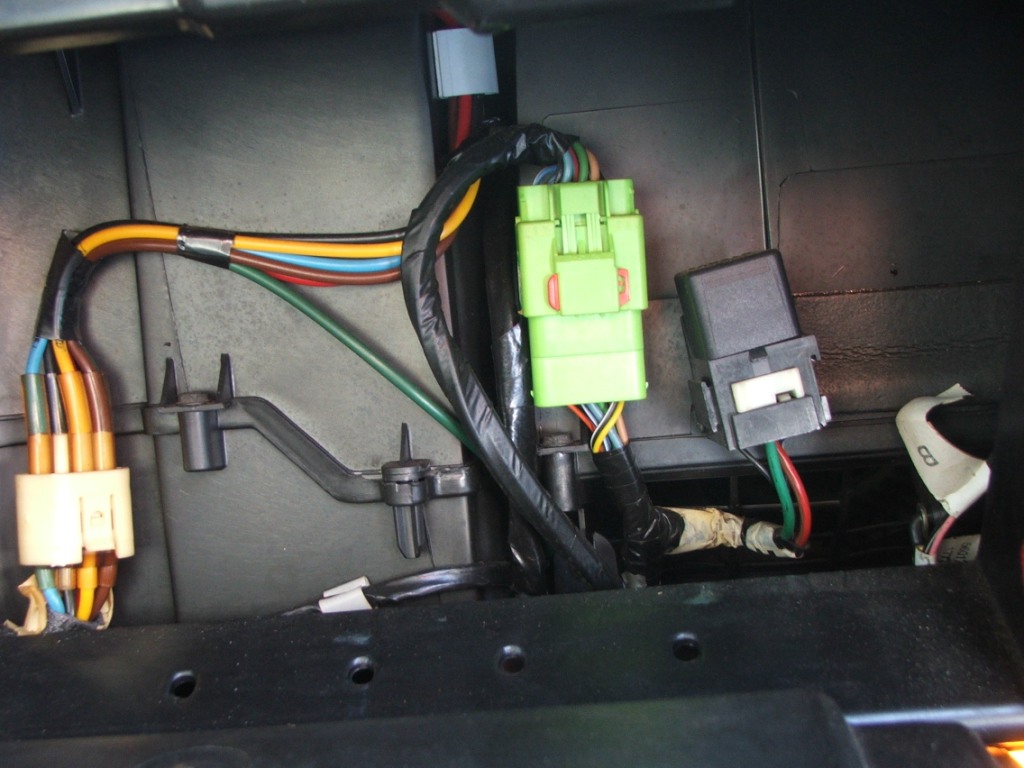

View of the quick disconnect through the glove box opening:



View of the vacuum harness and the top half of the quick disconnect with the dash completely removed:



Funk My Life



?

Sorta like this...



Should I tell the lady to add FML as another grandchild?



Hahaha sorry maybe I shouldnt have used that "term"

I was able to get a rubber line and connect the two pieces. Now vacuum leak is gone and jeep is running great! Ill post a pick of the rig later if anyone wants to see.

Now I just have to order a new exhaust manifold due to the notorious cracking. Woo!



Good work.

Thanks for the follow up.

I'd like to see a pic or two.



Picture are always nice to see how a problem was taken care of. Glade you got it working.

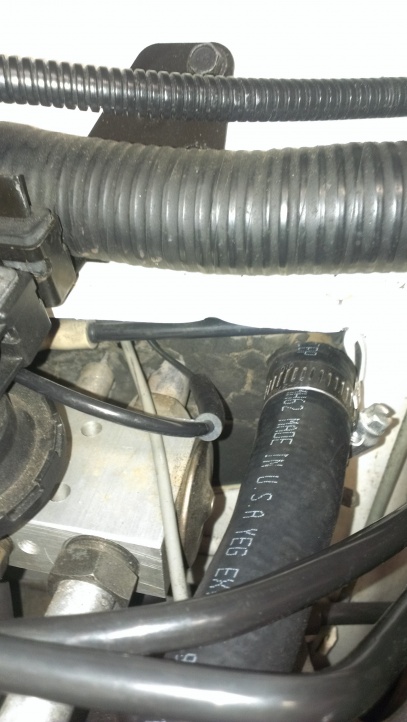

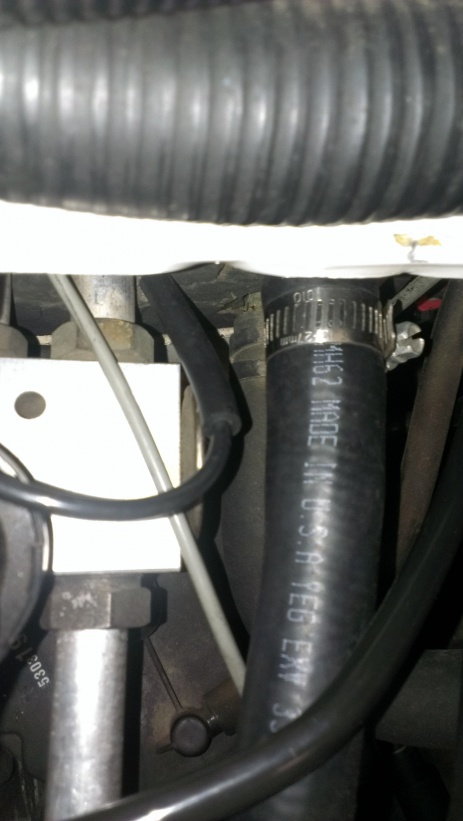

Here's my rig just put a hard rubber line over the broken end and made sure it was nice and snug



Looks like you've eliminated the HVAC check valve that's supposed to be there.



Nope its still there you can't see it in the pic. But its actually where the line continues to go. Lol
