Default Budget boost

I already have a lift under mine but want an extra inch or so. I'm going to use MJ shackles on the rear but, has anyone ever used a budget boost block heavy liflt springs up front?
Reply
Old Aug 13, 2008 | 06:04 AM
  #2
muddeprived's Avatar
CF Veteran

Joined: Oct 2007
Posts: 3,883
Likes: 6
From: W-PA
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Originally Posted by BonesJackson
I already have a lift under mine but want an extra inch or so. I'm going to use MJ shackles on the rear but, has anyone ever used a budget boost block heavy liflt springs up front?
budget boost block heavy lift springs? I'm a little confused. Do you mean coil spacers that go above the coils or stiffer springs?
This?
http://www.4wd.com/productdetails.aspx?partID=11704
or this
http://www.4wd.com/productdetails.aspx?partID=8810

Those go above the coil for more height.
Reply
Old Aug 13, 2008 | 06:34 AM
  #3
BonesJackson's Avatar
Thread Starter
Junior Member

Joined: Feb 2008
Posts: 90
Likes: 0
From: Maple Hts, Ohio
Default

Cant type worth a damn this morning.

Just trying to put a spacer on my front springs. I dont think I'd be a problem, but wasnt sure if anyone has attempted it and wondered how the ride was.
Reply
Old Aug 13, 2008 | 06:51 AM
  #4
muddeprived's Avatar
CF Veteran

Joined: Oct 2007
Posts: 3,883
Likes: 6
From: W-PA
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Originally Posted by BonesJackson
Cant type worth a damn this morning.

Just trying to put a spacer on my front springs. I dont think I'd be a problem, but wasnt sure if anyone has attempted it and wondered how the ride was.
Coil spacers are the most popular "budget" lift that jeepers use.

I am running two 1" spacers (same as a 2" spacer) on top of my Old Man Emu 2" springs. It rides fine. You should be fine as well. make sure you get an alignment done afterwards and adjust the trackbar (if you have an adjustable one). With your 3" springs, i would go with 1" spacer because you are still running short control arms and 4" is the max you would want to go on shorties before the ride startst getting rough. It's all about the control arm angles.

This is with one spacer:


Last edited by muddeprived; Aug 13, 2008 at 06:56 AM.
Reply
Old Aug 13, 2008 | 07:46 AM
  #5
obelix's Avatar
Junior Member

Joined: Jul 2008
Posts: 60
Likes: 0
From: KALAMATA Greece
Year: 1992
Model: Cherokee
Engine: 4.0 L
Default

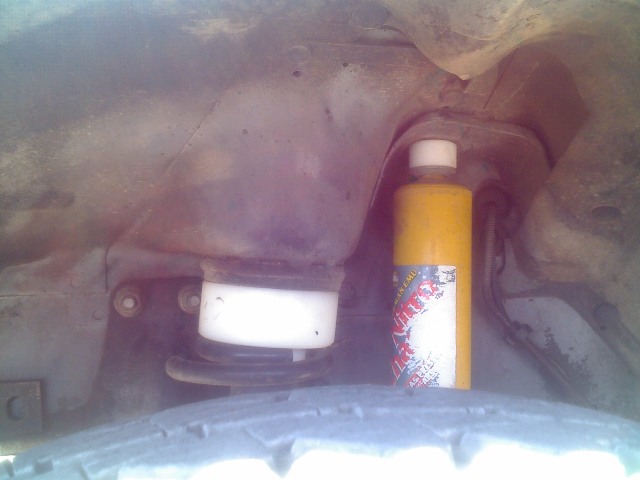

I have 2" spacers on coils and 1" at the shocks
Attached Images
Reply
Old Aug 13, 2008 | 05:09 PM
  #6
muddeprived's Avatar
CF Veteran

Joined: Oct 2007
Posts: 3,883
Likes: 6
From: W-PA
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Originally Posted by obelix
I have 2" spacers on coils and 1" at the shocks
Old man Emu, same as mine except mine are black I used 2" bar pin eliminators instead of a spacer on top like yours.
Reply
Old Aug 13, 2008 | 07:10 PM
  #7
jpdocdave's Avatar
Senior Member

Joined: Aug 2008
Posts: 971
Likes: 0
From: tan house white shutters key's under the flower pot
Year: 1996
Model: Cherokee
Engine: 4.0
Default

ya, and spacers are nice cuz the ride won't change, the springs aren't changing, or getting stiffer, just getting a spacer put in.
Reply
Old Aug 13, 2008 | 11:46 PM
  #8
jcherokee94's Avatar
Member

Joined: Jun 2008
Posts: 102
Likes: 1
Year: 1994
Model: Cherokee
Engine: 4.0
Default

i have the 2 inch spacers on my coil springs, they work great i think
