Broken power wire stud on alternator.
#1
Seasoned Member
Thread Starter
Join Date: Jun 2014
Posts: 317
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0
Broken power wire stud on alternator.

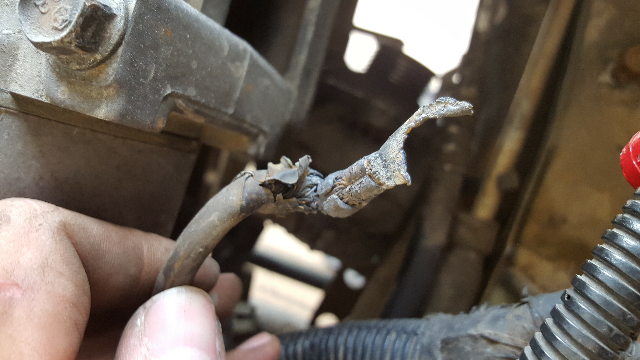

I have a 97 cherokee. Started having weird voltage issues. Upon inspecting it the power wire was burnt up. I attempted to remove the nut and broke the stud. It still has a few threads left but any ideas if it can be replaced or how to fix it?
Thanks
Thanks
#2
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I have a 97 cherokee. Started having weird voltage issues. Upon inspecting it the power wire was burnt up. I attempted to remove the nut and broke the stud. It still has a few threads left but any ideas if it can be replaced or how to fix it?
Thanks
Attachment 274586
Attachment 274587
Thanks
Attachment 274586
Attachment 274587
Replace the alternator.
Crimp on a new ring terminal.
The following users liked this post:
1996j**p (09-08-2023)
#4
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Dress the threads, pack epoxy putty in there, then with a nut on there snug it w/washer into the putty. Let it cure overnight. Now you have the threaded stud sticking out from the nut/washer you just fitted.
Might be nice if there were enough thread to be able to snug it tight after the putty cures. The head of that "stud" may need to be held against a contact in there. (or not)
Do you have an insulator piece that fit's in there?
Might be nice if there were enough thread to be able to snug it tight after the putty cures. The head of that "stud" may need to be held against a contact in there. (or not)
Do you have an insulator piece that fit's in there?
Last edited by DFlintstone; 08-12-2015 at 01:28 AM.
#5
Seasoned Member
Join Date: Nov 2013
Location: USA
Posts: 290
Likes: 0
Received 1 Like
on
1 Post
Year: 1995
Model: Grand Cherokee (ZJ)
Engine: 4.0L
This site has replacement parts for Denso alternators.
http://www.aspwholesale.com/
This rectifier listed for a 90 amp, 97 2.5 liter may be the same for a 90 / 117 amp 4.0L.
Rectifier - Replaces - Denso 021580-3640, 021580-3680, 021580-4660, 021580-4670, 021580-4840, 021580-5270, Isuzu 8-97046-414-0, 8-97070-808-0, Toyota 27357-74140, 27357-74260, 27357-74290
http://www.aspwholesale.com/index.ph...roduct_id=1370
Denso's often use the same parts such as a stator, rotor and/or rectifier for different years XJ 2.5 and 4.0L.
If you enter part numbers from the alternator in the search box sometimes it will match your alternator and display a parts list.
You can also email them with the alternator's part numbers and they should be able to determine the correct rectifier.
NIPPONDENSO 90, 120 AMP FOR CHRYSLER
INR403P RECTIFIER - 75, 90, 117A Alts. w/ 17mm Rotor Shaft (w/ Grd. Strap Hole, 40A Press-Fit Diodes)
INR727P RECTIFIER - 90A Alts. w/ 15mm Rotor Shaft (40A Press-Fit Diodes)
INR728P RECTIFIER - 120A Alts. (wo/ Grd. Strap Hole, 40A Press-Fit Diodes)
INR729P RECTIFIER - 75, 90, 117A Alts. w/ 17mm Rotor Shaft (wo/ Grd. Strap Hole, 40A Press-Fit Diodes)
http://www.aspwholesale.com/
This rectifier listed for a 90 amp, 97 2.5 liter may be the same for a 90 / 117 amp 4.0L.
Rectifier - Replaces - Denso 021580-3640, 021580-3680, 021580-4660, 021580-4670, 021580-4840, 021580-5270, Isuzu 8-97046-414-0, 8-97070-808-0, Toyota 27357-74140, 27357-74260, 27357-74290
http://www.aspwholesale.com/index.ph...roduct_id=1370
Denso's often use the same parts such as a stator, rotor and/or rectifier for different years XJ 2.5 and 4.0L.
If you enter part numbers from the alternator in the search box sometimes it will match your alternator and display a parts list.
You can also email them with the alternator's part numbers and they should be able to determine the correct rectifier.
NIPPONDENSO 90, 120 AMP FOR CHRYSLER
INR403P RECTIFIER - 75, 90, 117A Alts. w/ 17mm Rotor Shaft (w/ Grd. Strap Hole, 40A Press-Fit Diodes)
INR727P RECTIFIER - 90A Alts. w/ 15mm Rotor Shaft (40A Press-Fit Diodes)
INR728P RECTIFIER - 120A Alts. (wo/ Grd. Strap Hole, 40A Press-Fit Diodes)
INR729P RECTIFIER - 75, 90, 117A Alts. w/ 17mm Rotor Shaft (wo/ Grd. Strap Hole, 40A Press-Fit Diodes)
Last edited by Muddz; 08-12-2015 at 06:03 AM.
The following users liked this post:
1996j**p (09-08-2023)
Trending Topics
#9
Seasoned Member
Join Date: Nov 2013
Location: USA
Posts: 290
Likes: 0
Received 1 Like
on
1 Post
Year: 1995
Model: Grand Cherokee (ZJ)
Engine: 4.0L
It's sometimes easier to just get a replacement alternator. However some of the aftermarket replacements don't last and will fail prematurely. I've had factory OEM's with over ~175,000+ miles whereas some name-brand aftermarkets have failed at around ~20,000 miles.
When purchasing any less expensive alternator, under ~$200.00 I usually take a look at the warranty. Some such as Delco-Remy come with a lifetime warranty.
When purchasing any less expensive alternator, under ~$200.00 I usually take a look at the warranty. Some such as Delco-Remy come with a lifetime warranty.
Last edited by Muddz; 08-12-2015 at 08:23 PM.
#10
Seasoned Member
Thread Starter
Join Date: Jun 2014
Posts: 317
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0
I was hoping not to have to replace jusr because i dont have an extra 100+ to spend. Any ideas on where to get ones for ela decent price if i cant grt this one repaired?
#11
Seasoned Member
Join Date: Nov 2013
Location: USA
Posts: 290
Likes: 0
Received 1 Like
on
1 Post
Year: 1995
Model: Grand Cherokee (ZJ)
Engine: 4.0L
http://www.rockauto.com/catalog/rafr...&parttype=2412
New is better than remans, known for premature failure. Look for a lifetime warranty vs 1 - 2 year warranty.
Take in consideration the number of miles and use of the alternator, whether it's a less expensive aftermarket or OEM. Alternators potentially wear out faster running under heavier amp loads, increases temperatures. 90 or 117/120 amp? number for miles? type of use? aftermarket or OEM? If lower miles I might just pop in a new rectifier, they're not difficult to replace. New brushes if worn.
You didn't provide much information about the alternator other than the broken B+ terminal and cable connection. Possibly the voltage problems are a result of the broken B+ and connector. I would look for what caused the damage to the alternator and connector and do any needed adjustments and repairs, to prevent from re-occurring.
You should be able to either add a union or thick nut to extend the stud with the existing threads. I would use a die lowering the threads and union or nut. Your B+ may be up higher, without the OEM isolator.
Some people run alternator without a B+ isolator. I've made isolators for 1/0 and 2/0 cable connections out of small plastic bottles and a glue gun. The bottle opening is about the same size as the area around the B+, bottle is cut a certain length with a slot for the connector, glue is then poured inside, nuts and washers are used to secure the cable connection.
Here's a pic of another kind of fix using a bolt/stud extension.
Last edited by Muddz; 08-16-2015 at 05:17 AM.
