Breather line?

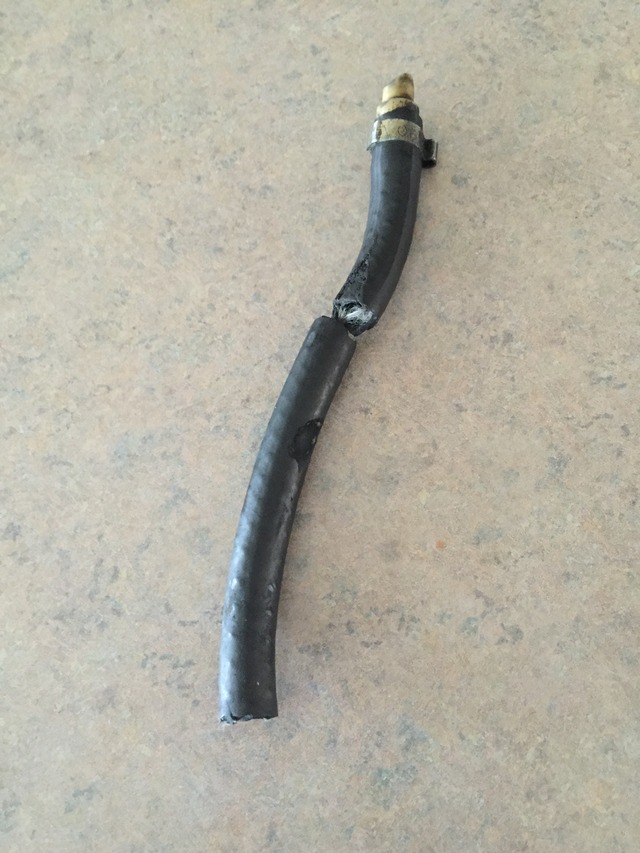

Name: IMG_0285.jpg
Views: 57
Size: 138.9 KB

Found this dangling by a thread. 4.0 AW4 NP242 XJ. 89. It's the bottom end of a breather line. The upper part is ironically safely zip tied at the firewall. Which breather could it be? Anyone recognize it?
Thanks!

Reply Like

10-31-2015, 02:06 PM

cruiser54

::CF Moderator::

Join Date: Aug 2011

Location: Prescott, Az

Posts: 43,875

Likes: 1,934

Received 1,526 Likes on 1,238 Posts

Year: 1990

Model: Cherokee (XJ)

Engine: 4.0

Driver's side firewall? Front diff.

Reply Like

10-31-2015, 08:53 PM

Merkin Jeep

Newbie

Join Date: Oct 2015

Location: Central Jersey

Posts: 14

Likes: 0

Received 0 Likes on 0 Posts

Year: 1999 & 2000 Red

Model: Cherokee

Engine: 4.0

Quote:

Originally Posted by cruiser54

Driver's side firewall? Front diff.

I just changed my oil today and notice the diff hose worn in half by the front driveshaft universal. Would this cause that 0303 code for evap system small leak engine light to come on?

Reply Like

10-31-2015, 08:54 PM

ehall

CF Veteran

Join Date: Jan 2015

Location: Southern Maryland

Posts: 1,381

Likes: 0

Received 1 Like on 1 Post

Year: 1991

Model: Cherokee

Engine: 1999 4.0L

There are three breathers in the front--D30 strapped to drivers side firewall, transmission and transfercase on the passenger side. There is also one on the rear axle usually tied up to the floorpan.
