Bed liner exterior instead of paint?
Senior Member
Joined: Aug 2011
Posts: 690
Likes: 0
From: Pennsylvania
Year: 1988
Model: Cherokee
Engine: 4.0

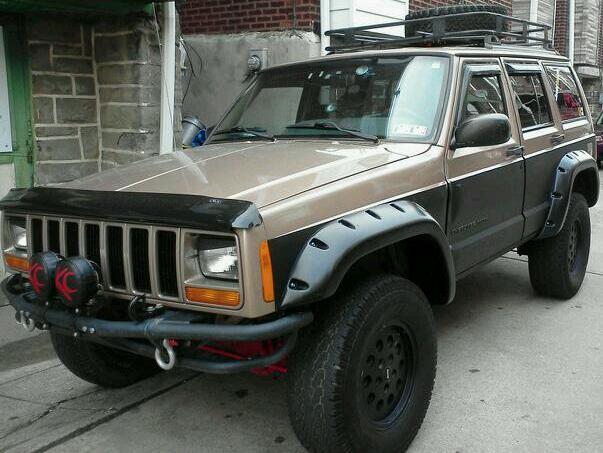

@ the Black- Thanks, but yours looked awesome. Made me decide to bedline months ago. Ended up doing the whole front section because the lund visor needed painted, and ill be damned if you thought I was going to try to match paint color... lol.
@Zacks98- Does the tire shine really work? If so, that is a great bit of advise for everyone who bedlines at all. Awesome, and thanks for that tip.
@Zacks98- Does the tire shine really work? If so, that is a great bit of advise for everyone who bedlines at all. Awesome, and thanks for that tip.
CF Veteran
Joined: Aug 2010
Posts: 1,678
Likes: 0
From: Carlisle, PA
Year: 2000
Model: Cherokee
Engine: Inline 6
I herculined my lower panels since I was getting some rust on the corners. It seems to have stopped it after I sanded it down and primed it. It looks good too, gives the Jeep a little more color
I plan on herculining the roof next since my rattle can job is chipping up there from hauling stuff.
I plan on herculining the roof next since my rattle can job is chipping up there from hauling stuff.
i am looking to apply the raptor liner now. is there anything i should do besides minor sanding? do i need to apply primer or anything else like that to get a better result?
CF Veteran
Joined: Mar 2011
Posts: 2,570
Likes: 4
From: California
Year: 1992
Model: Cherokee
Engine: 4.0 HO
Nope. Just really scuff up the paint good. Then give it a wash and rub it down with rubbing alcohol.
Senior Member
Joined: Aug 2011
Posts: 690
Likes: 0
From: Pennsylvania
Year: 1988
Model: Cherokee
Engine: 4.0
(This is why some of us...
prefer the bedlining, as it is so easy.)
If you are removing trim and such, make sure to clean off all the adhesive, same for emblems. After sanding, be sure to wipe down with alcohol, and enjoy. It took me less than a day to do my whole jeep, so it is quick as well. It's fun. Good luck, and post pics.
prefer the bedlining, as it is so easy.)If you are removing trim and such, make sure to clean off all the adhesive, same for emblems. After sanding, be sure to wipe down with alcohol, and enjoy. It took me less than a day to do my whole jeep, so it is quick as well. It's fun. Good luck, and post pics.
CF Veteran
Joined: Jun 2011
Posts: 2,460
Likes: 0
From: Dayton, Ohio
Year: 1992
Model: Comanche
Engine: 4.0
Originally Posted by CPLSeraphim
@ the Black- Thanks, but yours looked awesome. Made me decide to bedline months ago. Ended up doing the whole front section because the lund visor needed painted, and ill be damned if you thought I was going to try to match paint color... lol.
@Zacks98- Does the tire shine really work? If so, that is a great bit of advise for everyone who bedlines at all. Awesome, and thanks for that tip.
@Zacks98- Does the tire shine really work? If so, that is a great bit of advise for everyone who bedlines at all. Awesome, and thanks for that tip.
CF Veteran
Joined: Feb 2012
Posts: 2,961
Likes: 0
From: Sykesville, Md
Year: 2000
Model: Cherokee
Engine: 4.0
I personally spray SEM Rock-it, best stuff I have ever used besides paying an arm and a leg for Line-X. at $200 a gallon its kinda steep but as I said its the best I have found. They have kits and you can spray it on with just an air compressor some news paper and blue painters tape. Take about 2 gallon to do an entire XJ bumpers and roof included but at $400 in coating that is the same as what Line-X charges to do a bed. Had a guy from MD price to have his whole MJ done in Line-X and it was around a $1000.
Member
Joined: Aug 2010
Posts: 170
Likes: 0
From: Cincinnati
Year: 1998
Model: Cherokee
Engine: 4.0 i6

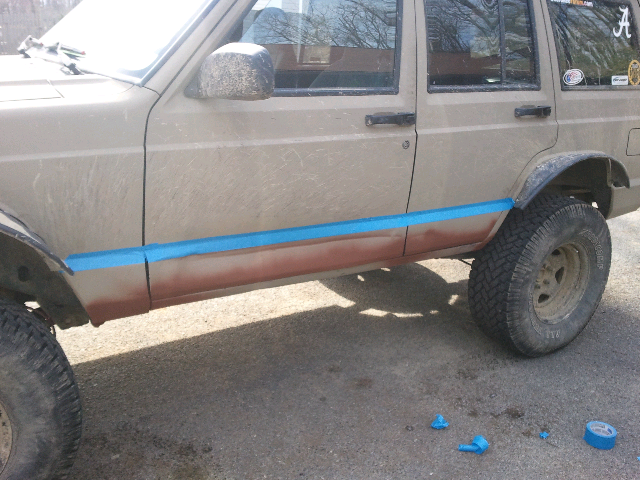

Sprayed at 40 PSI w/U-Pol Raptor

U-Pol comes w/enough material to do 110 sqft. I used 1/4 of the supplied material doing both sides as pictured. It was $110 tmd from http://www.tptools.com/Product.aspx?display_id=2600

U-Pol comes w/enough material to do 110 sqft. I used 1/4 of the supplied material doing both sides as pictured. It was $110 tmd from http://www.tptools.com/Product.aspx?display_id=2600
Member
Joined: Apr 2012
Posts: 175
Likes: 0
From: Bloomfield, Mi
Year: 1999
Model: Cherokee
Engine: 6 Cylinders S 4.0L MFI
Where did you get it from? Does anyone know if they sell something like this in a Auto shop like Auto Zone/Advance Auto or o'Rileys?
NeverMind. ATLSRT8 just answered my question! Lol
NeverMind. ATLSRT8 just answered my question! Lol
Last edited by MirMir; May 9, 2012 at 09:27 AM.
Senior Member
Joined: Apr 2009
Posts: 954
Likes: 2
From: New Waverly, Tx
Year: 1997
Model: Cherokee
Engine: Used engine just put in less than 79kmiles onit jeepersCreepers 60mm TB, '99-'01 intake, BorlaHeader
Originally Posted by MirMir
Where did you get it from? Does anyone know if they sell something like this in a Auto shop like Auto Zone/Advance Auto or o'Rileys?
NeverMind. ATLSRT8 just answered my question! Lol
I have seen a bunch of liners like duPont, Al's, etc... Stuff in a can really is just paint with some texture in it, but it's been beefed up with polyurethane.
I think spray-lining is inexpensive and well worth it. It's a higher quality three part (polyhybrid with aggregate). Way better than monstaliner, durabak, herculiner, etc.). They have a lot of guys doing their jeep bodies cause it's less expensive than most, but works great.
The clear is a product very few can compete with. 100 mils of clear.... what!!
spray-lining
I think spray-lining is inexpensive and well worth it. It's a higher quality three part (polyhybrid with aggregate). Way better than monstaliner, durabak, herculiner, etc.). They have a lot of guys doing their jeep bodies cause it's less expensive than most, but works great.
The clear is a product very few can compete with. 100 mils of clear.... what!!
spray-lining
