Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

bad reception

Old 05-13-2011, 03:58 PM
  #1
Seasoned Member
Thread Starter

ptonjeep's Avatar

Join Date: Feb 2011
Location: princeton il
Posts: 301
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default bad reception

i had great radio reception when i bought it then all of a sudden it went bad. so naturaly i figured it was the rust antena so i replaced it this morning. it didnt get better at all is there another conection spot besides where the antena plugs into the stereo. if so where is it and how do i get to it. please help
Old 05-13-2011, 04:06 PM
  #2
CF Veteran

93gc40's Avatar

Join Date: Mar 2009
Location: Visalia, Kalifornia, ussa
Posts: 2,750
Likes: 0
Received 2 Likes on 2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default

What did you plug the wire from the new antena, into?????????
Old 05-13-2011, 04:08 PM
  #3
Seasoned Member
Thread Starter

ptonjeep's Avatar

Join Date: Feb 2011
Location: princeton il
Posts: 301
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

i just screwed it back in exactly where the other one came out of
Old 05-13-2011, 04:36 PM
  #4
Seasoned Member
Thread Starter

ptonjeep's Avatar

Join Date: Feb 2011
Location: princeton il
Posts: 301
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

anybody?
Old 05-13-2011, 07:08 PM
  #5
Member

BatmansZJ's Avatar

Join Date: Mar 2011
Location: Palm bay Florida
Posts: 179
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Grand Cherokee
Engine: 318 v8
Default

Pass side kick panel spring loaded joint remove kick panel can't miss it pull the spring out and put it back together happened to my xj and zj
Old 05-14-2011, 12:14 PM
  #6
Seasoned Member
Thread Starter

ptonjeep's Avatar

Join Date: Feb 2011
Location: princeton il
Posts: 301
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

got any pics of what it looks like???
Old 05-14-2011, 12:36 PM
  #7
CF Veteran

93gc40's Avatar

Join Date: Mar 2009
Location: Visalia, Kalifornia, ussa
Posts: 2,750
Likes: 0
Received 2 Likes on 2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Did you replace the Arial(mast) or the compete antena? Antena would have required fishing a wire from the fender to the kick panel or radio.
Old 05-14-2011, 12:37 PM
  #8
Seasoned Member
Thread Starter

ptonjeep's Avatar

Join Date: Feb 2011
Location: princeton il
Posts: 301
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

um just the arial mast. didnt realize it was called that lol
Old 05-14-2011, 12:43 PM
  #9
CF Veteran

93gc40's Avatar

Join Date: Mar 2009
Location: Visalia, Kalifornia, ussa
Posts: 2,750
Likes: 0
Received 2 Likes on 2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Originally Posted by ptonjeep
um just the arial mast. didnt realize it was called that lol
Try the connection fix mentioned above, inside the passenger kick panel and make sure the antena wire is plugged in at the radio also. If that doesn;t help you will need to replace the part that the Mast screwed into or the Radio itself is the problem.
Old 05-14-2011, 12:44 PM
  #10
Seasoned Member
Thread Starter

ptonjeep's Avatar

Join Date: Feb 2011
Location: princeton il
Posts: 301
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

can you describe a little better what that all is? and what stuff looks like let my girlfriend barrow my xj and it wont be back for a couple hours
Old 05-14-2011, 12:59 PM
  #11
Member

BatmansZJ's Avatar

Join Date: Mar 2011
Location: Palm bay Florida
Posts: 179
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Grand Cherokee
Engine: 318 v8
Default

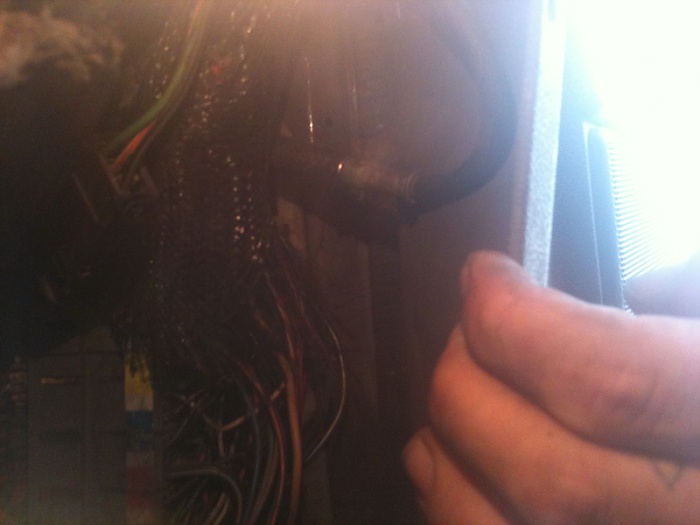

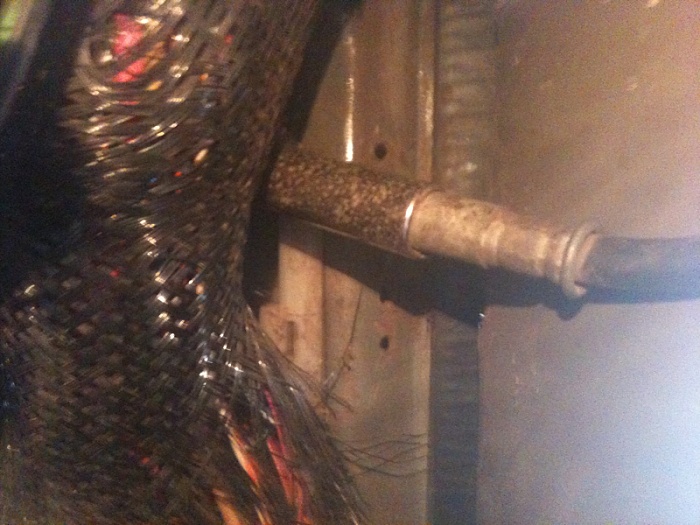

Just under the dash pass side remove kick panel and look for this wire this is my zj the wife has the xj but same thing
Attached Thumbnails bad reception-image-3900885994.jpg   bad reception-image-786417175.jpg
Old 05-14-2011, 01:08 PM
  #12
Seasoned Member
Thread Starter

ptonjeep's Avatar

Join Date: Feb 2011
Location: princeton il
Posts: 301
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

ok thanks a bunch i just wasnt sure which wire you were talkin about with all of them down there
Old 05-14-2011, 01:11 PM
  #13
Member

BatmansZJ's Avatar

Join Date: Mar 2011
Location: Palm bay Florida
Posts: 179
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Grand Cherokee
Engine: 318 v8
Default

No problem I had to pull the spring out on my zj and xj when I first got them cause neither had reception
Old 05-15-2011, 12:01 PM
  #14
Seasoned Member
Thread Starter

ptonjeep's Avatar

Join Date: Feb 2011
Location: princeton il
Posts: 301
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

man that was a pita it didnt want to stay together so i had to tape it lol
Old 05-15-2011, 03:13 PM
  #15
Member

BatmansZJ's Avatar

Join Date: Mar 2011
Location: Palm bay Florida
Posts: 179
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Grand Cherokee
Engine: 318 v8
Default

Originally Posted by ptonjeep
man that was a pita it didnt want to stay together so i had to tape it lol
Did you pull the spring out if you pull it out then put it together and tape it I have had no problem with either jeep and that how I did mine
