Bad Pulley-Please help me to identify...
Senior Member
Joined: Mar 2014
Posts: 552
Likes: 1
From: Central Indiana
Year: 1996
Model: Cherokee
Engine: 4.0
Thread Starter
Senior Member
Joined: Apr 2012
Posts: 716
Likes: 0
From: Charlotte, NC
Year: 1994 Jeep Cherokee Sport
Replaced the belt, ordered the gator back. It's still squealing. But it just doesn't sound like it's coming from the belt. Sounds like it's near the distributor cap or the area right before the heater control valve.
::CF Moderator::
Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

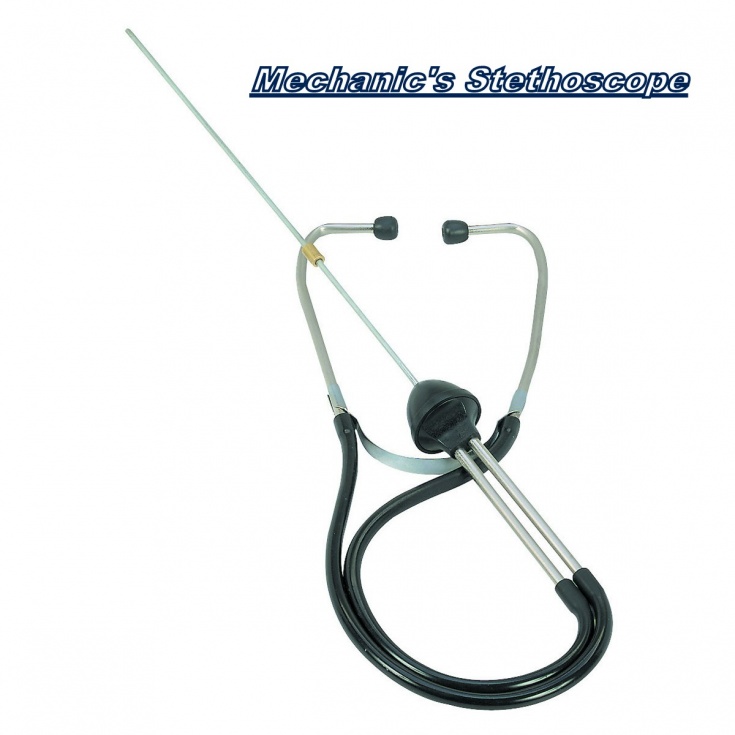

Get one of these at Harbor Freight for under $5. Report back your findings.
Thread Starter
Senior Member
Joined: Apr 2012
Posts: 716
Likes: 0
From: Charlotte, NC
Year: 1994 Jeep Cherokee Sport
Warm up engine util the noise starts. Remove the Serp belt and restart. Run for a few minutes. If the noise is still there it is either your distributor or flex plate. If it stops, you have isolated down to just a few components left not new in the front of the engine. The bracket that holds the fan clutch has a bearing, and of course the power steering pump. My bet is the distributor. Remove the cap and see if you have any side to side play in the shaft. Hope this helps
Thread Starter
Senior Member
Joined: Apr 2012
Posts: 716
Likes: 0
From: Charlotte, NC
Year: 1994 Jeep Cherokee Sport
::CF Moderator::
Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
CF Veteran
Joined: Apr 2009
Posts: 4,734
Likes: 12
Year: 2015, 2012
Model: Grand Cherokee (WK2)
Engine: 3.6L
Distributor shaft fixing to lock up. Cam bearing.
Last edited by Firestorm500; Oct 25, 2014 at 03:53 AM.
CF Veteran
Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Did you miss this ?........
Took the belt off and checked all the pulleys. Everything checks out fine. Got her running without the belt, no noise yet but there also wasn't any noise once I loosened the belt. Now look at this belt, it looks great but I'm checking to see where to buy the GY belts.
Took the belt off and checked all the pulleys. Everything checks out fine. Got her running without the belt, no noise yet but there also wasn't any noise once I loosened the belt. Now look at this belt, it looks great but I'm checking to see where to buy the GY belts.
CF Veteran
Joined: Jan 2014
Posts: 1,102
Likes: 364
From: Eustis, Florida
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
Actually the whole distributor. Remove the cap and grab the shaft to see if it moves any from side to side. Cheap way to check if it is the distributor is to swap one out of the junk yard. Mine went bad and I would of bet money the squeal was coming from the front of the engine. Replaced it and no noise and runs better...
CF Veteran
Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Actually the whole distributor. Remove the cap and grab the shaft to see if it moves any from side to side. Cheap way to check if it is the distributor is to swap one out of the junk yard. Mine went bad and I would of bet money the squeal was coming from the front of the engine. Replaced it and no noise and runs better...
::CF Moderator::
Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
CF Veteran
Joined: Aug 2010
Posts: 8,357
Likes: 103
From: Canton, MI
Year: 1999
Model: Cherokee
Engine: 4.0
This thread is too long for my liking so I haven't read all 800 posts. But does the noise go away when running the engine without the belt?
If so, think Fan bearing in the AC Compressor adaptor.
If so, think Fan bearing in the AC Compressor adaptor.
Beach Bum
Joined: Jul 2011
Posts: 6,123
Likes: 22
From: Cape Hatteras, North Carolina
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
^ That would work better than a piece of garden hose attached to a conch shell that goes to my ear. Jeep makes the sound of the ocean when I listen this way. Wonder what it could be?
