aw4 p0740
Finally Cured my no lockup problem.
The original conditions: started getting bad mpg and cel came on. Lockup would happen in first 20 min of driving then stop. No reverse lights and no start in park occasionally.
Method of attack: cleaned nss fist. Got reverse lights back but no lockup condition continued. Adjusted tv cable. No change.
Adjusted brake light switch. Cured problem for 2 days Then no lockup at all. Replaced brake light switch. Lockup became intermittent. Some days had it all day. Other days would quit after 20 min or so.
Pulled all electrical conections to tranny. Cleaned greased and reconected. No problems for 2 weeks now!
I have other problems that lead me to believe it was electrical. The dash quits once in a while. A good thump and it works again.and electric fan connection was corroded as well.
So if your having hard to diagnose problems overdrive lockup. Check the connections.mine was a combo problem of brake light switch and dirty connections. Tango1
The original conditions: started getting bad mpg and cel came on. Lockup would happen in first 20 min of driving then stop. No reverse lights and no start in park occasionally.
Method of attack: cleaned nss fist. Got reverse lights back but no lockup condition continued. Adjusted tv cable. No change.
Adjusted brake light switch. Cured problem for 2 days Then no lockup at all. Replaced brake light switch. Lockup became intermittent. Some days had it all day. Other days would quit after 20 min or so.
Pulled all electrical conections to tranny. Cleaned greased and reconected. No problems for 2 weeks now!
I have other problems that lead me to believe it was electrical. The dash quits once in a while. A good thump and it works again.and electric fan connection was corroded as well.
So if your having hard to diagnose problems overdrive lockup. Check the connections.mine was a combo problem of brake light switch and dirty connections. Tango1
05-03-2014, 06:37 PM
#2
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Finally Cured my no lockup problem.
The original conditions: started getting bad mpg and cel came on. Lockup would happen in first 20 min of driving then stop. No reverse lights and no start in park occasionally.
Method of attack: cleaned nss fist. Got reverse lights back but no lockup condition continued. Adjusted tv cable. No change.
Adjusted brake light switch. Cured problem for 2 days Then no lockup at all. Replaced brake light switch. Lockup became intermittent. Some days had it all day. Other days would quit after 20 min or so.
Pulled all electrical conections to tranny. Cleaned greased and reconected. No problems for 2 weeks now!
I have other problems that lead me to believe it was electrical. The dash quits once in a while. A good thump and it works again.and electric fan connection was corroded as well.
So if your having hard to diagnose problems overdrive lockup. Check the connections.mine was a combo problem of brake light switch and dirty connections. Tango1
The original conditions: started getting bad mpg and cel came on. Lockup would happen in first 20 min of driving then stop. No reverse lights and no start in park occasionally.
Method of attack: cleaned nss fist. Got reverse lights back but no lockup condition continued. Adjusted tv cable. No change.
Adjusted brake light switch. Cured problem for 2 days Then no lockup at all. Replaced brake light switch. Lockup became intermittent. Some days had it all day. Other days would quit after 20 min or so.
Pulled all electrical conections to tranny. Cleaned greased and reconected. No problems for 2 weeks now!
I have other problems that lead me to believe it was electrical. The dash quits once in a while. A good thump and it works again.and electric fan connection was corroded as well.
So if your having hard to diagnose problems overdrive lockup. Check the connections.mine was a combo problem of brake light switch and dirty connections. Tango1
BTW: Tango1 sounds like a military call sign. Is it?
10-07-2015, 01:26 PM
#4
Junior Member
Join Date: Oct 2010
Location: Chicago, IL
Posts: 37
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0
Are you still locking up consistently? If so can you be specific on the connections you cleaned and lubricated. I have a 98 that is also not locking up after a little bit, and sounds very similar to yours.
10-07-2015, 05:33 PM
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,939
Received 1,541 Likes
on
1,248 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Finally Cured my no lockup problem.
The original conditions: started getting bad mpg and cel came on. Lockup would happen in first 20 min of driving then stop. No reverse lights and no start in park occasionally.
Method of attack: cleaned nss fist. Got reverse lights back but no lockup condition continued. Adjusted tv cable. No change.
Adjusted brake light switch. Cured problem for 2 days Then no lockup at all. Replaced brake light switch. Lockup became intermittent. Some days had it all day. Other days would quit after 20 min or so.
Pulled all electrical conections to tranny. Cleaned greased and reconected. No problems for 2 weeks now!
I have other problems that lead me to believe it was electrical. The dash quits once in a while. A good thump and it works again.and electric fan connection was corroded as well.
So if your having hard to diagnose problems overdrive lockup. Check the connections.mine was a combo problem of brake light switch and dirty connections. Tango1
The original conditions: started getting bad mpg and cel came on. Lockup would happen in first 20 min of driving then stop. No reverse lights and no start in park occasionally.
Method of attack: cleaned nss fist. Got reverse lights back but no lockup condition continued. Adjusted tv cable. No change.
Adjusted brake light switch. Cured problem for 2 days Then no lockup at all. Replaced brake light switch. Lockup became intermittent. Some days had it all day. Other days would quit after 20 min or so.
Pulled all electrical conections to tranny. Cleaned greased and reconected. No problems for 2 weeks now!
I have other problems that lead me to believe it was electrical. The dash quits once in a while. A good thump and it works again.and electric fan connection was corroded as well.
So if your having hard to diagnose problems overdrive lockup. Check the connections.mine was a combo problem of brake light switch and dirty connections. Tango1
Cruiser’s Trans Plug Refreshing

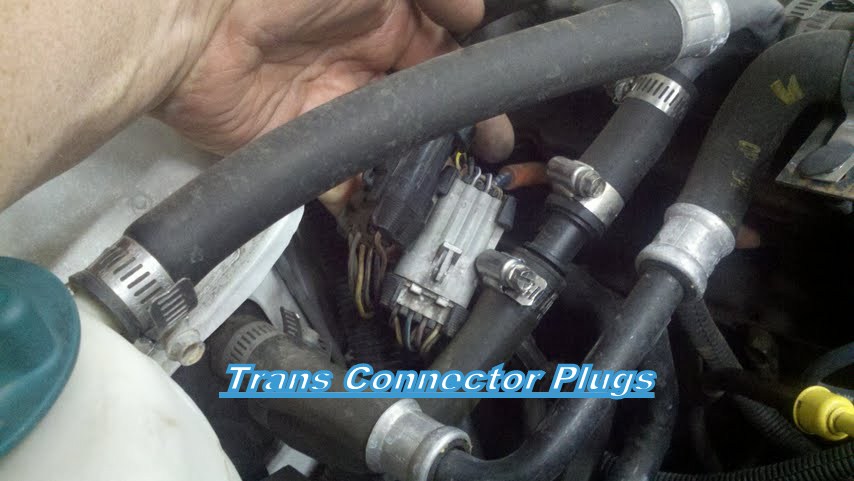

Over near the transmission dipstick tube are 2 rather large connectors. One is black and the other gray. These 2 connectors carry all the info between TPS, TCU, NSS, speed sensor, and transmission solenoids.
Unplug each one, visually inspect for corrosion or bent pins, spray them out with electrical contact cleaner and plug them back in.
Additionally, if your Jeep is an 87 to 90 Renix, it’s always a good idea to reach up under the glovebox area and unplug the connector to the TCU and spray it out along with the receptacle of the TCU. While you’re there, find the fuse right in that area for the TCU. Remove it and spray out it’s receptacle and clean any corrosion from the fuse.
Revised 9-10-2012
