AC Compressor That Ate Itself... kinda
So I've had great luck on this forum when it comes to my Cherokee's problems, it seems like everyone has already been through what I've been through no matter the issue. However now after several days of searching I cant find anyone with the same problem.

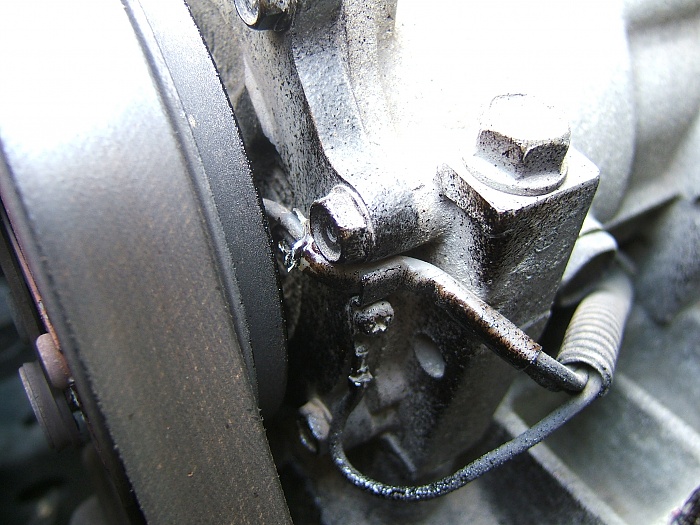

My AC worked great a little while ago, ice cold, couldn't leave it on full blast in the summer because it made it too cold eventually. Then on a really hot day I went to turn it on and it just blew warm air I also noticed a slightly odd smell like plastic melting. Now when I run the AC and look under the hood the ac compressor clutch doesn't spin ever. Also under the hood I found what looked like black spray paint around the AC compressor pulley, upon further inspection this black stuff is slick and hard which confirms my theory of it melting something. So it looks to me like somehow the pulley has melted or ground down some wire that it came in contact with at some point.
Now my question, has anyone had this happen to them before? Anyone have any ideas how this might have happened(so I can prevent it from happening in the future)? And lastly should I just pull the ac compressor out all the way to get to those wires?
My AC worked great a little while ago, ice cold, couldn't leave it on full blast in the summer because it made it too cold eventually. Then on a really hot day I went to turn it on and it just blew warm air I also noticed a slightly odd smell like plastic melting. Now when I run the AC and look under the hood the ac compressor clutch doesn't spin ever. Also under the hood I found what looked like black spray paint around the AC compressor pulley, upon further inspection this black stuff is slick and hard which confirms my theory of it melting something. So it looks to me like somehow the pulley has melted or ground down some wire that it came in contact with at some point.
Now my question, has anyone had this happen to them before? Anyone have any ideas how this might have happened(so I can prevent it from happening in the future)? And lastly should I just pull the ac compressor out all the way to get to those wires?
08-04-2011, 09:22 PM
#2
Member
Join Date: Jan 2010
Posts: 115
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
It's probably one of two things:
- electrical fault, like a short as you suspect
- your clutch has worn down
Start you engine and have someone cycle the ac on and off whilst you observe the clutch movement. If there is no movement at all, most likely an electrical fault, if you observe some movement (but apparantly not enough to fully engage) you probably have a worn clutch.
Those wires go to the back of your compressor and there should be a connector. Pull it and you can check if you have Voltage there. I know for some of the older Jeeps you can test this with just the ignition on, for others (e.g. my '98) the engine must be turning.
In order to get at those wires you need to get the clutch off. Those wires go straight into the coil. Getting the clutch and pulley off isn't that big a job. I've just done it myself. Search the forum for AC clutch and you'll find lots of advise and experience.
The black spray on the compressor might be misleading. Is it right at the front of the compressor on the top behind the pulley. That could just be the sealant of the coil. When I started having problems with my AC clutch this threw me off a bit as well.
Jeroen
- electrical fault, like a short as you suspect
- your clutch has worn down
Start you engine and have someone cycle the ac on and off whilst you observe the clutch movement. If there is no movement at all, most likely an electrical fault, if you observe some movement (but apparantly not enough to fully engage) you probably have a worn clutch.
Those wires go to the back of your compressor and there should be a connector. Pull it and you can check if you have Voltage there. I know for some of the older Jeeps you can test this with just the ignition on, for others (e.g. my '98) the engine must be turning.
In order to get at those wires you need to get the clutch off. Those wires go straight into the coil. Getting the clutch and pulley off isn't that big a job. I've just done it myself. Search the forum for AC clutch and you'll find lots of advise and experience.
The black spray on the compressor might be misleading. Is it right at the front of the compressor on the top behind the pulley. That could just be the sealant of the coil. When I started having problems with my AC clutch this threw me off a bit as well.
Jeroen
08-08-2011, 10:04 AM
#4
Newbie
Thread Starter
Join Date: Jan 2011
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I checked out the clutch when clicking the ac on/off and there's no motion in it at all. My next step will be to check the voltages and see what I can tell from that.
About the black spray, what would that mean if the sealant of the coil had been leaking out like that? Does that mean my compressor is FUBAR or is it not that horrible?
About the black spray, what would that mean if the sealant of the coil had been leaking out like that? Does that mean my compressor is FUBAR or is it not that horrible?
08-08-2011, 09:16 PM
#5
CF Veteran
Join Date: Mar 2010
Location: Elizabethtown, pa
Posts: 1,030
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: 5.2
Take it to a shop and have the charged checked. low charge will cause it not to turn on, If the charge is good it could be compressor or low/high prssure switch.
08-09-2011, 04:19 PM
#6
Seasoned Member
Join Date: Aug 2011
Location: NJ
Posts: 266
Likes: 0
Received 0 Likes
on
0 Posts
Year: 98
Model: Cherokee
Engine: 4.0
It's probably one of two things:
- electrical fault, like a short as you suspect
- your clutch has worn down
Start you engine and have someone cycle the ac on and off whilst you observe the clutch movement. If there is no movement at all, most likely an electrical fault, if you observe some movement (but apparantly not enough to fully engage) you probably have a worn clutch.
Those wires go to the back of your compressor and there should be a connector. Pull it and you can check if you have Voltage there. I know for some of the older Jeeps you can test this with just the ignition on, for others (e.g. my '98) the engine must be turning.
In order to get at those wires you need to get the clutch off. Those wires go straight into the coil. Getting the clutch and pulley off isn't that big a job. I've just done it myself. Search the forum for AC clutch and you'll find lots of advise and experience.
The black spray on the compressor might be misleading. Is it right at the front of the compressor on the top behind the pulley. That could just be the sealant of the coil. When I started having problems with my AC clutch this threw me off a bit as well.
Jeroen
- electrical fault, like a short as you suspect
- your clutch has worn down
Start you engine and have someone cycle the ac on and off whilst you observe the clutch movement. If there is no movement at all, most likely an electrical fault, if you observe some movement (but apparantly not enough to fully engage) you probably have a worn clutch.
Those wires go to the back of your compressor and there should be a connector. Pull it and you can check if you have Voltage there. I know for some of the older Jeeps you can test this with just the ignition on, for others (e.g. my '98) the engine must be turning.
In order to get at those wires you need to get the clutch off. Those wires go straight into the coil. Getting the clutch and pulley off isn't that big a job. I've just done it myself. Search the forum for AC clutch and you'll find lots of advise and experience.
The black spray on the compressor might be misleading. Is it right at the front of the compressor on the top behind the pulley. That could just be the sealant of the coil. When I started having problems with my AC clutch this threw me off a bit as well.
Jeroen
