AAL dowel pin help
#1
Seasoned Member
Thread Starter
Join Date: Jan 2010
Location: JERSEY ALL DAY
Posts: 251
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L
AAL dowel pin help

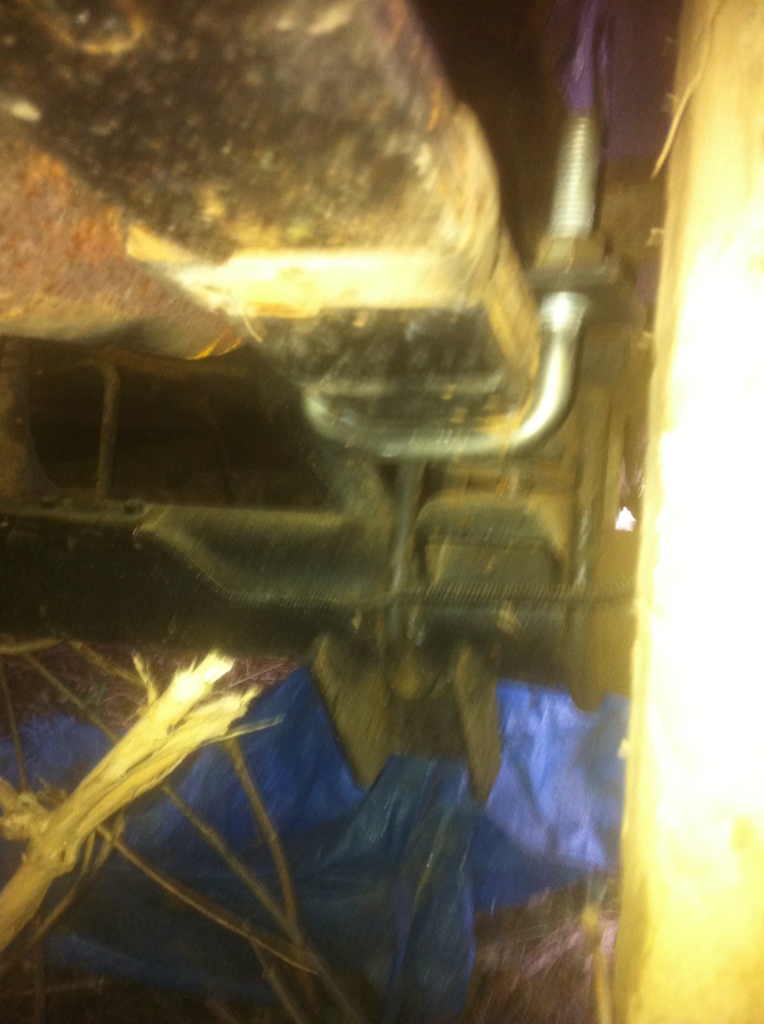

Ok so im trying to fix my shot springs and not knowing what i was doing, i just slid a leaf in and c clamped em down.
There are removable dowel pins coming out of my chrystler 8.25. i think theyre from my blocks that i took out bc they broke my bottom leaf.
The dowel pins are too big for my aal so my aal just sits on top of dowel pin.
Are the stock XJ leaf packs supposed to get one of those long Bolts going thru it with a hex on top to align everything???
because my stock packs have one broken off.
I need the AAL shim and the dowel pin thing. like the AAL's i see on ebay.
my aal never came with that. where do i buy em??
There are removable dowel pins coming out of my chrystler 8.25. i think theyre from my blocks that i took out bc they broke my bottom leaf.
The dowel pins are too big for my aal so my aal just sits on top of dowel pin.
Are the stock XJ leaf packs supposed to get one of those long Bolts going thru it with a hex on top to align everything???
because my stock packs have one broken off.
I need the AAL shim and the dowel pin thing. like the AAL's i see on ebay.
my aal never came with that. where do i buy em??
#4
Senior Member
Join Date: Aug 2009
Location: Pueblo, CO.
Posts: 903
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0
installing an AAL you're supposed to unclamp the existing spring clamps,(after removing the springs from the truck) unbolt or cut the center bolt, install the AAL in the correct spot in the spring stack,(they should go in order of length) use C-clamps or something compairable to hold the springs tight together, install a new center bolt (making sure the springs are properly aligned) torque the center bolt, install new spring clamps, reinstall into truck.
