95 - is hi-beam wire orange?

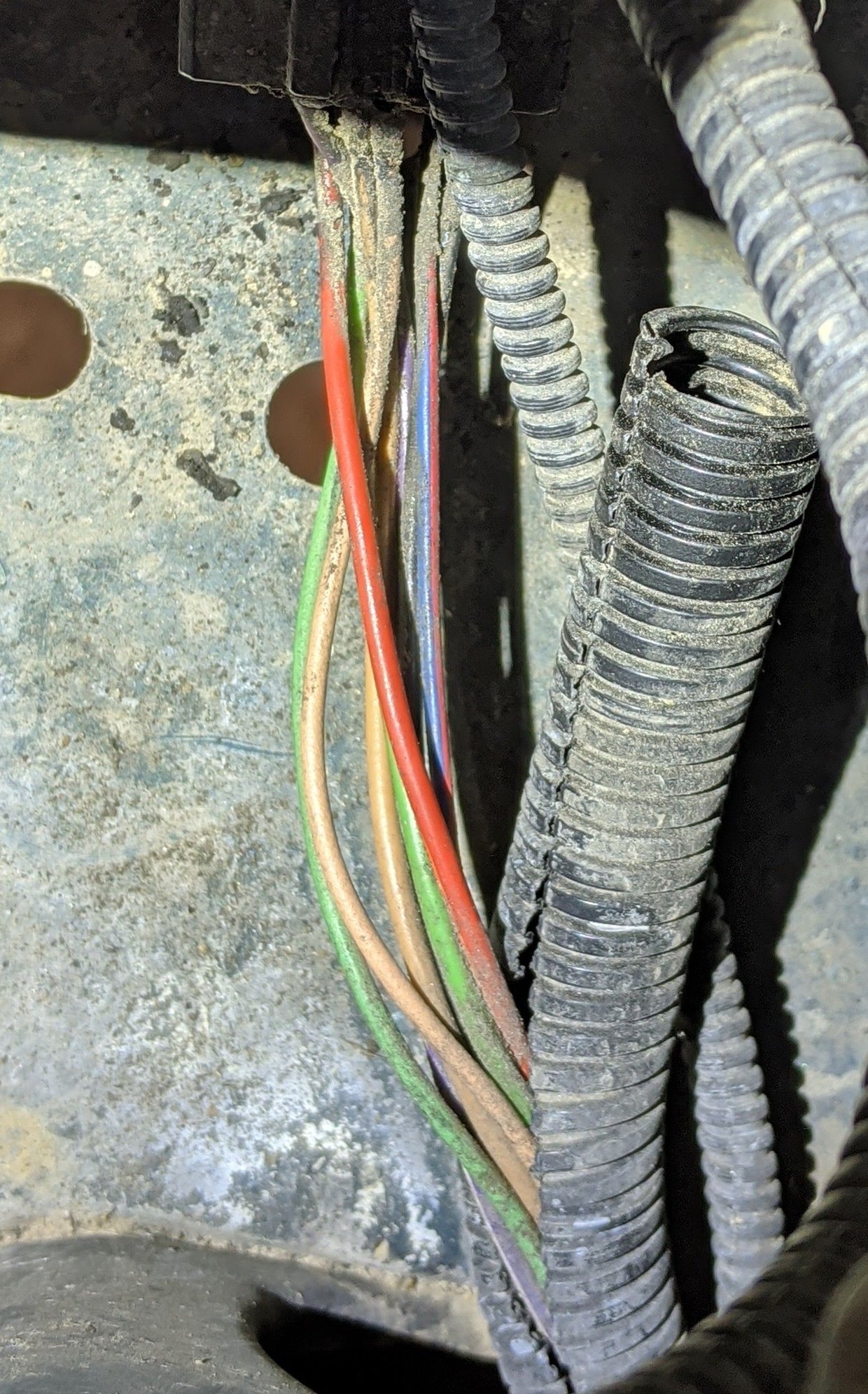

Hey all - looking for the hi beam wire in the loom next to the airbox, just before it goes to the headlight. My Haynes manual is just plain wrong. I'm reading that it might be orange?

Thanks a lot!

Dec 28, 2020 | 01:41 PM

boxburn

CF Veteran

Joined: Oct 2018

Posts: 1,577

Likes: 279

From: United Kingdom

Year: 1995 RHD

Model: Cherokee (XJ)

Engine: 4.0l

FSM says Red/Orange.

Dec 28, 2020 | 01:57 PM

Thetastycat

Thread Starter

Senior Member

Joined: May 2020

Posts: 500

Likes: 51

Year: 95

Model: Cherokee (XJ)

Engine: 4.0

Ok so there IS an orange stripe under the red wire! Gotta do a few things and then I'll get it hooked up. Thanks a ton!

Dec 28, 2020 | 02:38 PM

boxburn

CF Veteran

Joined: Oct 2018

Posts: 1,577

Likes: 279

From: United Kingdom

Year: 1995 RHD

Model: Cherokee (XJ)

Engine: 4.0l

Dec 28, 2020 | 02:48 PM

Thetastycat

Thread Starter

Senior Member

Joined: May 2020

Posts: 500

Likes: 51

Year: 95

Model: Cherokee (XJ)

Engine: 4.0

Red/orange is the winner!

So WHY then is my Haynes manual just dead wrong on all the wire colors I've looked for so far?? Oh well...thank God for CF!
