Hello, does anyone have good pictures of the connectors under the dash from the fuse box to the steering wheel and dash? I have an 89 that the previous owner cut up after the ignition switch burnt up. He put in a new steering wheel, but then tried to run the ignition off of a toggle switch. I want to put everything back to stock if possible, but I need a few pictures of what it is supposed to look like so that I can get everything connected to the proper colored wires. Thanks!



I can take some pics of mine when I get home, everything is all pulled out of the way already.



Thanks so much dgnoj!


I also have another question: where is the best place to get a kit of replacement O-rings for my injectors? Does anybody sell a set of 6 for both top and bottom? They seem to be different sizes, is that true? Or, will round ones do the job on both ends. I have NAPA, O'Reilly's, and National Autoparts near me.

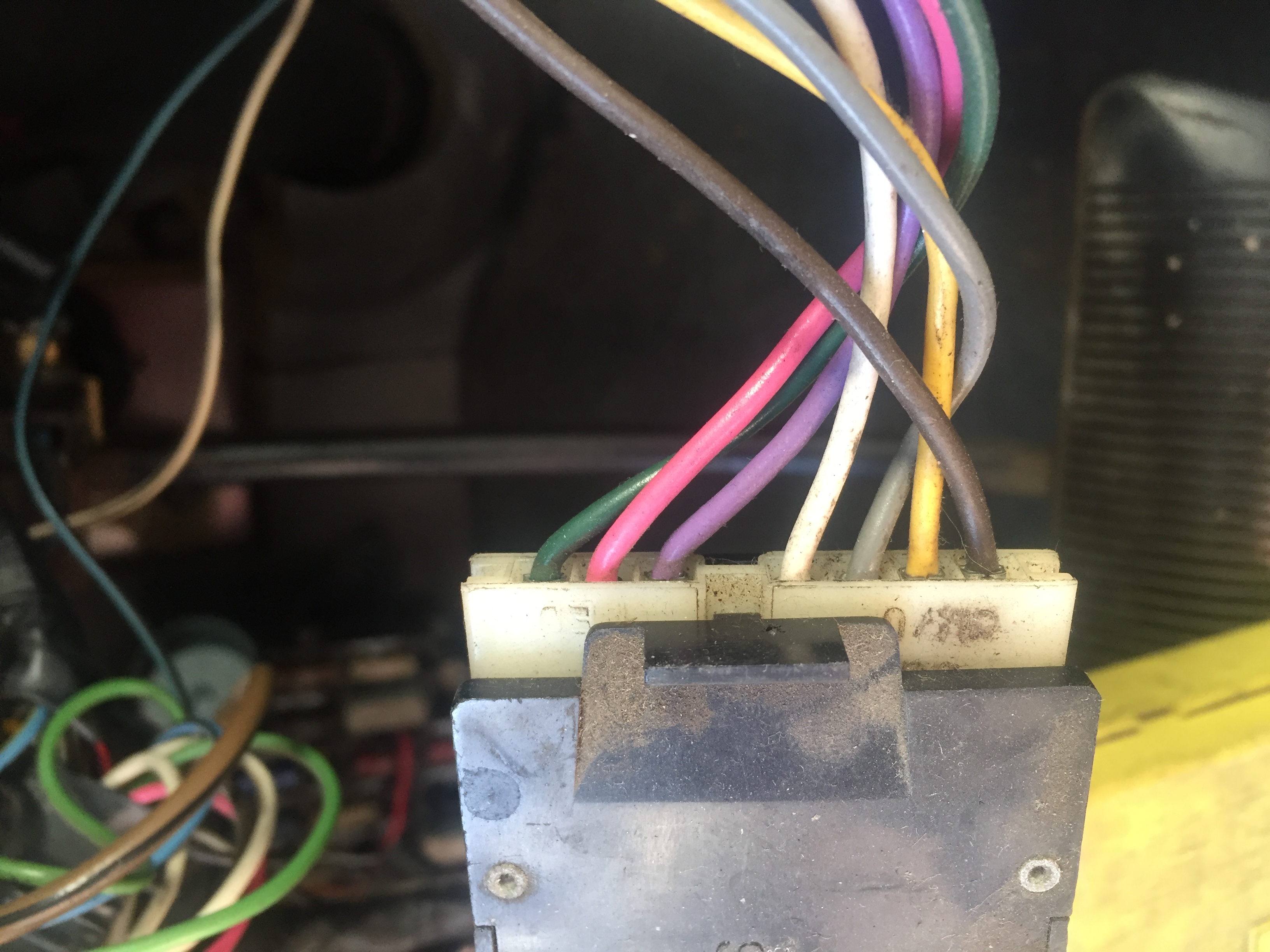

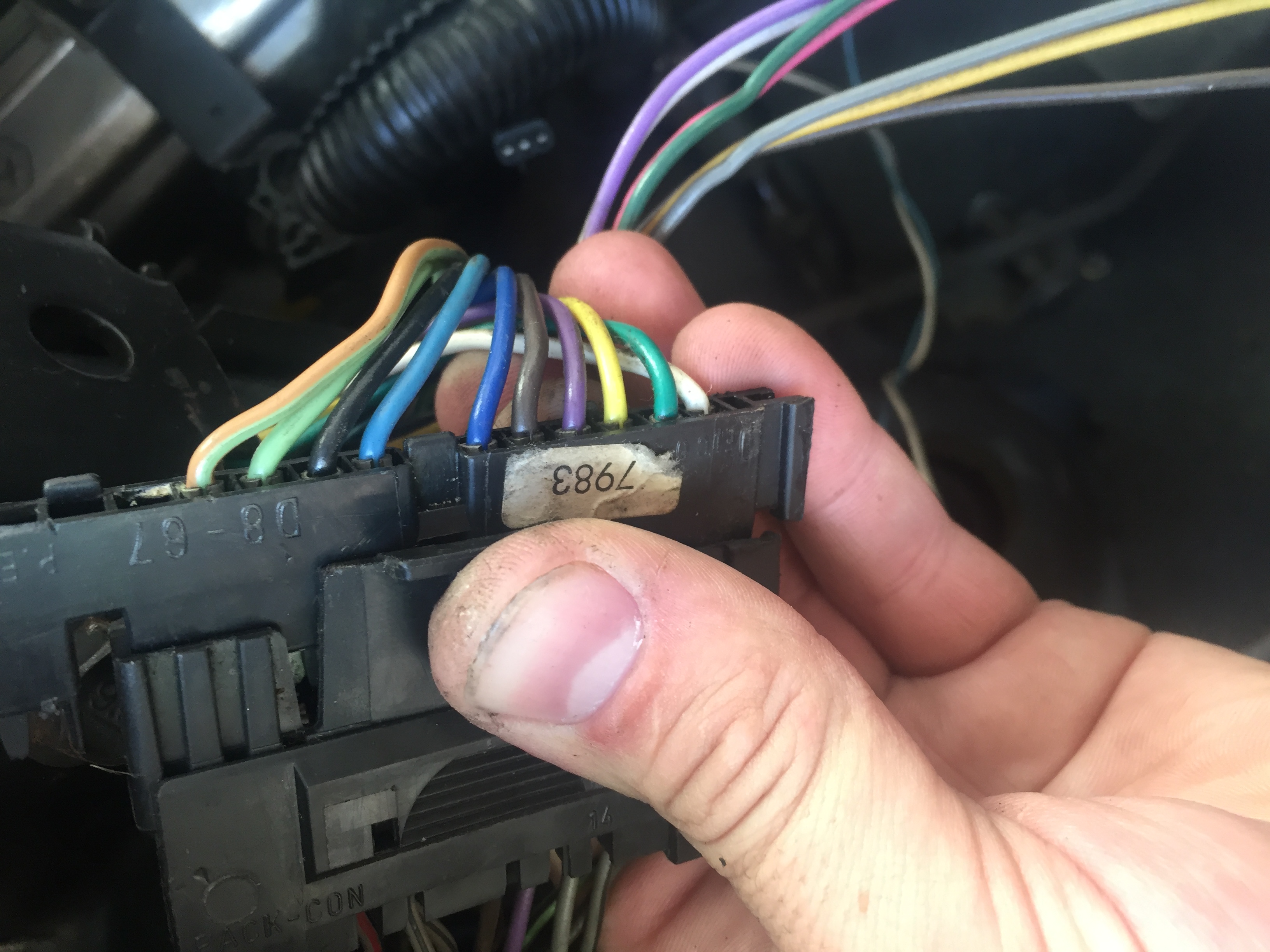

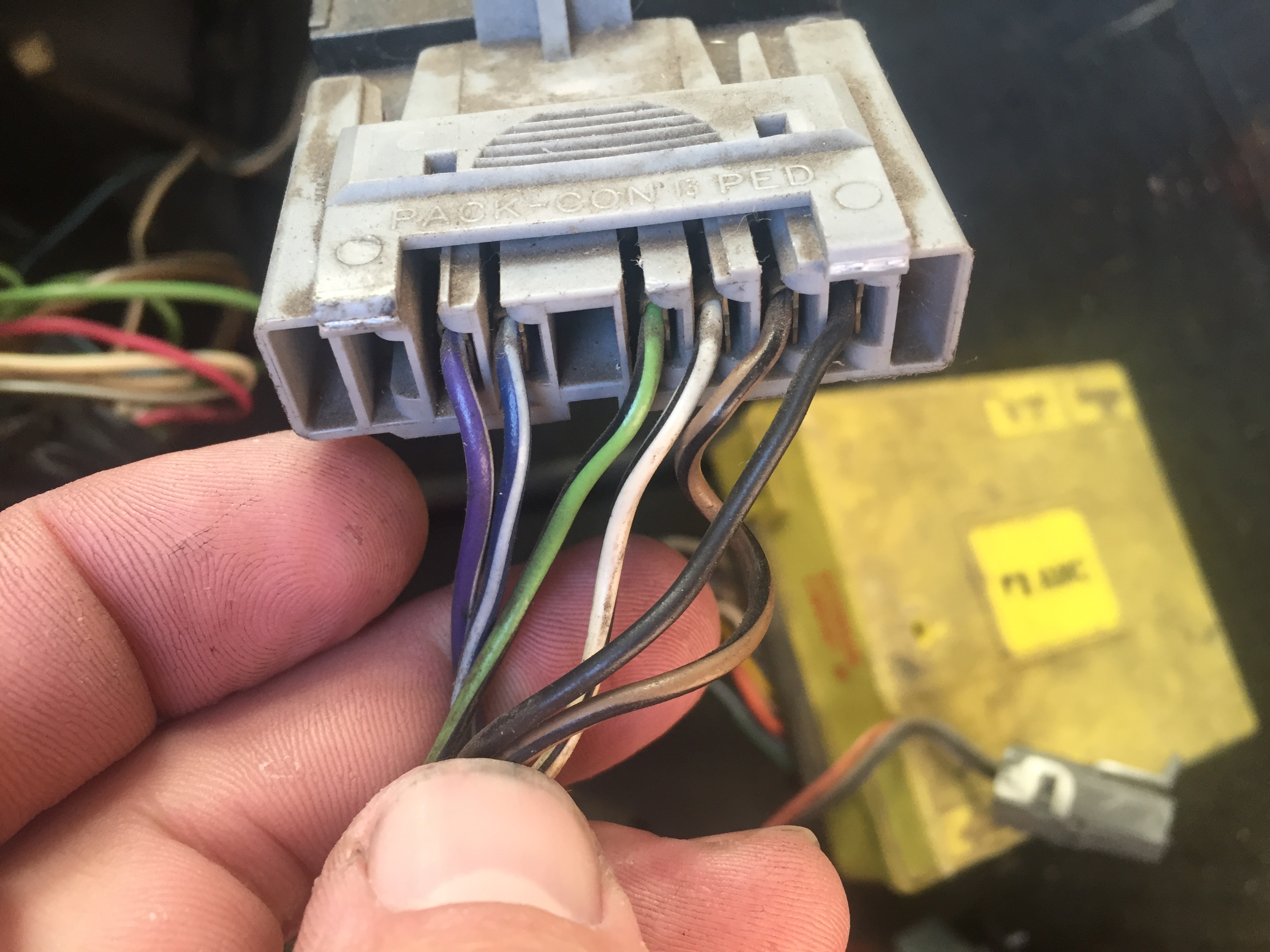

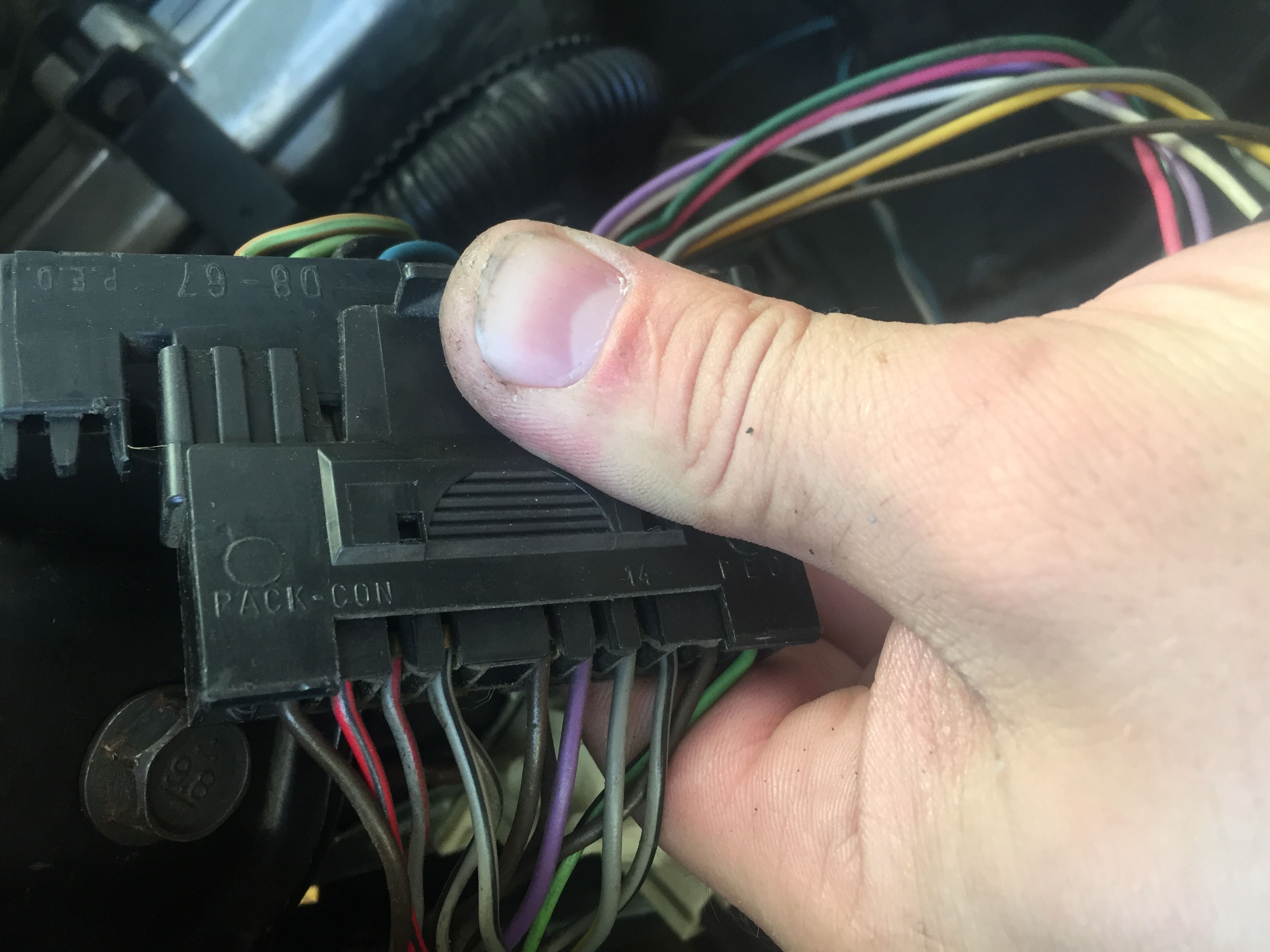

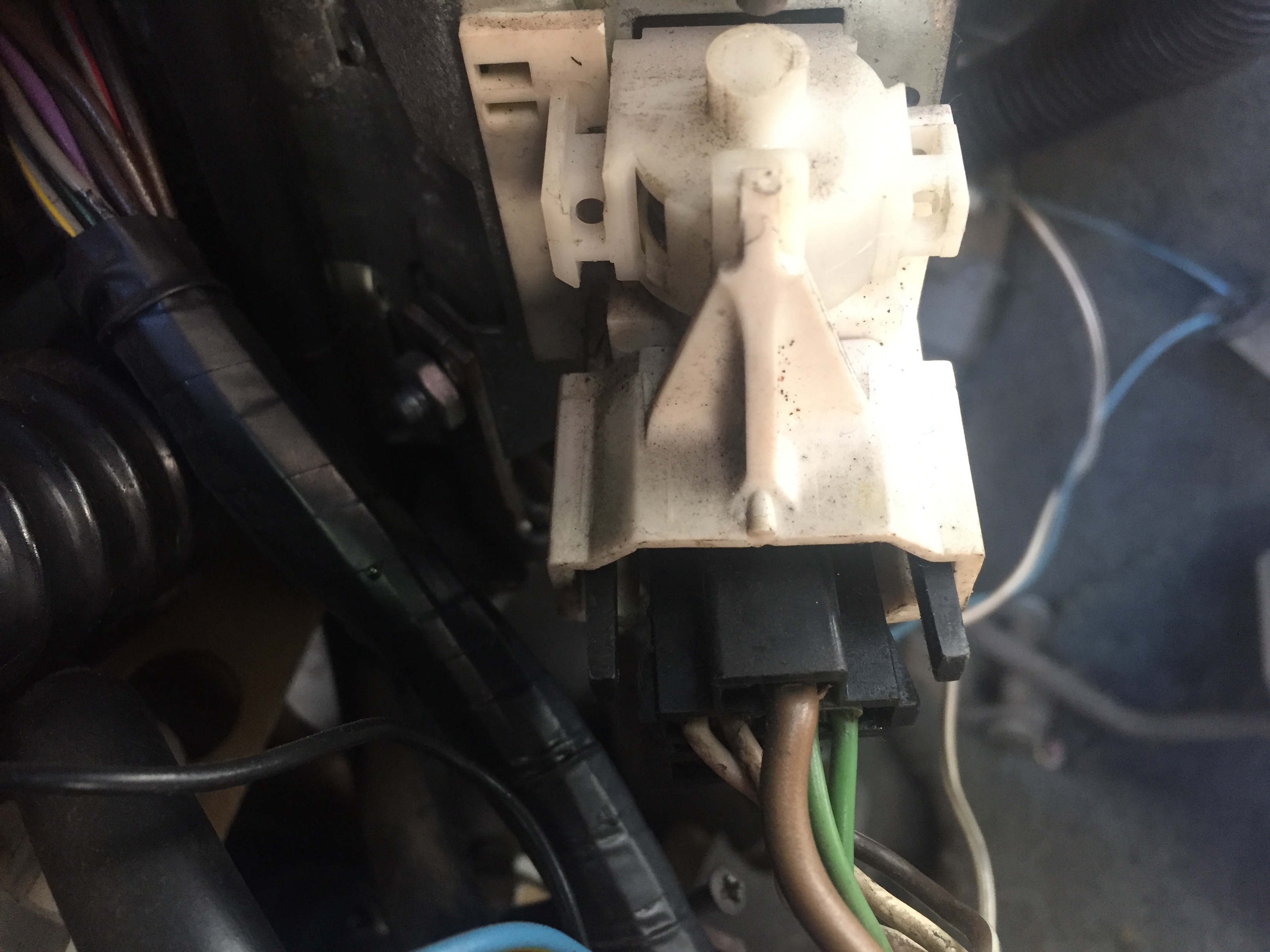

Here you go. I think I got all of them, let me know if I missed something



My ignorance

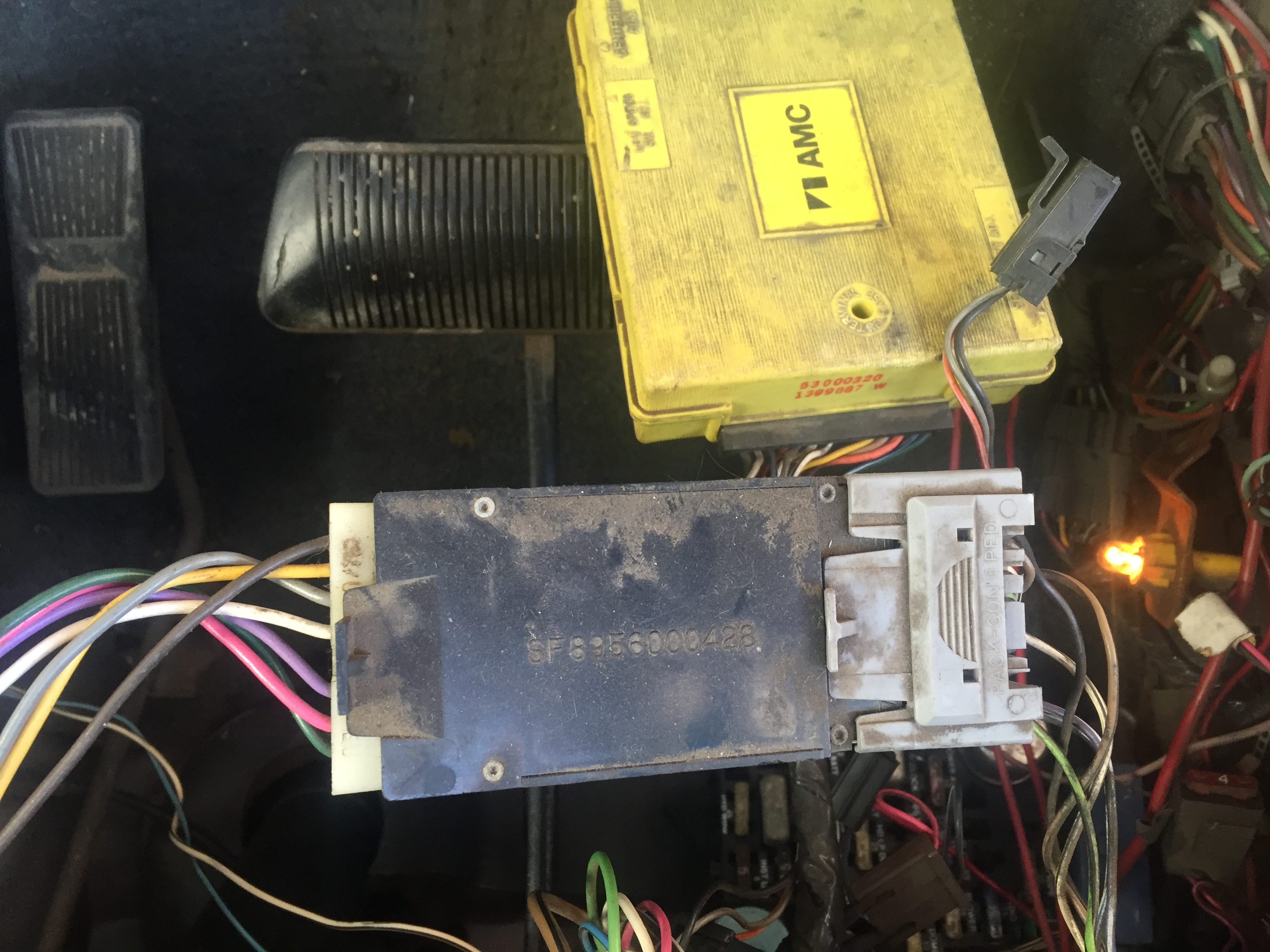

What is the yellow AMC box?



Cruise control module



Oh yeah, http://www.ebay.com/itm/like/262359709381?lpid=82&chn=ps&ul_ref=http%253A%252F%252Frover.ebay.com%252Frover%252F1%252F711-117182-37290-0%252F2%253Fmtid%253D1588%2526kwid%253D1%2526crlp%253D53601919689_324272%2526itemid%253D262359709381%2526targetid%253D173528746809%2526rpc%253D0.22%2526rpc_upld_id%253D69821%2526device%253Dm%2526mpre%253Dhttp%25253A%25252F%25252Fwww.ebay.com%25252Fulk%25252Fitm%25252Flike%25252F262359709381%25253Flpid%25253D82%252526chn%25253Dps%2526adtype%253Dpla%2526googleloc%253D9029019%2526poi%253D9029014%2526campaignid%253D239125209%2526adgroupid%253D14978428809%2526rlsatarget%253Dpla-173528746809%2526gclid%253DCISq16_LvMwCFQQbaQodykAF4g%2526srcrot%253D711-117182-37290-0%2526rvr_id%253D1024270328420&ul_noapp=true



Thanks so much!!



No worries. Glad someone else could benefit from me ripping my jeep apart



They are the same size O rings. For about double the $ you can get screens & caps too.

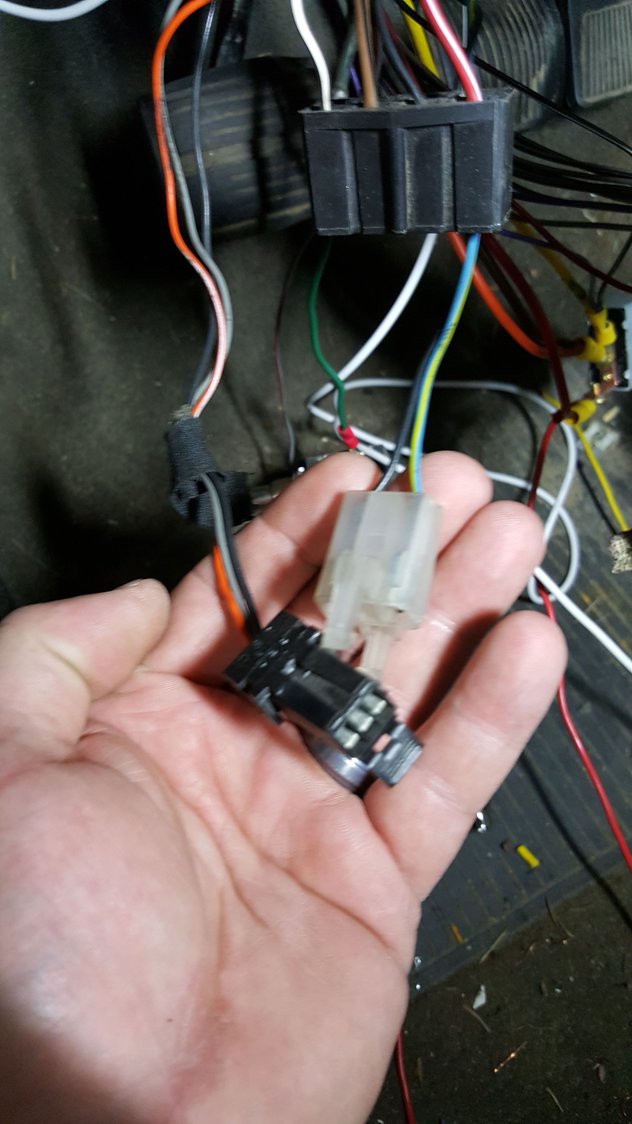

I've got almost everything connected, but I have this one hanging with nowhere to go that I can see. Maybe to the gauge cluster?

I also have these 2 others hanging out.



I am heading to the junkyard today to look at the wiring in the Cherokees there. Hopefully I can figure out where everything goes.



Did you ever figure out the harnesses? The small 3 wire is for a service timer (removed mine). But I have the same 2 harnesses that IDK where they go, everything else is good under my dash.



The upper left hand corner of a persons post shows the post date. You have responded to a very old post. That member hasn't posted on CF for 4 years BTW.



I saw that it was an old post. I have recently purchased an XJ in very excellent shape, and have done all but 2 of your Renix tips. I am getting ready to put the dash all back together and have the same 2 harnesses in the photo, and was hoping he had got the answer. I am still new to the site and am trying to figure it out (the reason I haven't made many posts).
