89 4.0L Cherokee Laredo-engine troubles.

Thread Tools

Search this Thread

Old Aug 25, 2014 | 04:30 PM
  #1
jretzky's Avatar
Thread Starter
Member

Joined: Aug 2011
Posts: 175
Likes: 0
Model: Cherokee
Default 89 4.0L Cherokee Laredo-engine troubles.

Hello!~Everyone, just this morning I start up the Jeep and back up and start down the road and it popping in the exhaust and has no power.
The Jeep is an 1989 Cherokee Laredo and has an fuel injected 4.0 liter engine.
The first thing that comes to mind is the timing chain is going.
Then I think it might be something as simple has a bad distributor cap.
The last time I drove the car was 2 days ago and it was fine.
By the way the engine has about 160,000 miles on it.
I looked under the hood and the motor was running, but not good.


I got back into the car and stepped on the gas and it had no response.
Any one ever have this happen?


jretzky
Reply
Old Aug 25, 2014 | 06:02 PM
  #2
austinjoe13's Avatar
CF Veteran

Joined: Nov 2011
Posts: 2,433
Likes: 6
From: Northern MN
Year: 1990
Model: Cherokee (XJ)
Engine: Renix 4.0
Default

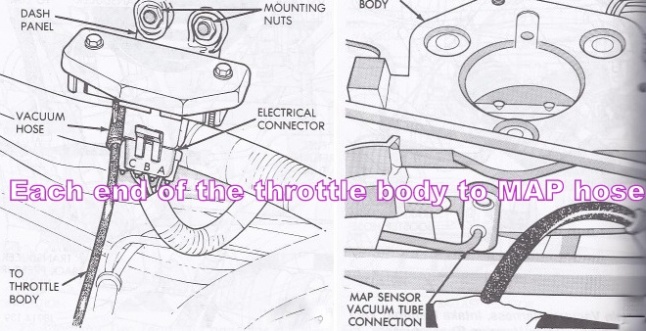

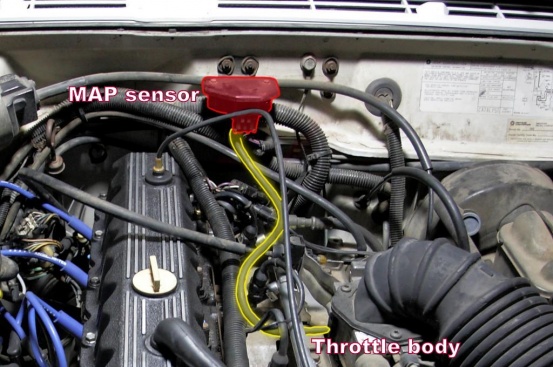

Check the MAP sensor tube, it goes from the throttle body to the sensor on the firewall.
Reply
Old Aug 25, 2014 | 06:27 PM
  #3
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Like this:
Attached Thumbnails 89 4.0L Cherokee Laredo-engine troubles.-map-tb.jpg   89 4.0L Cherokee Laredo-engine troubles.-tb-map-tube.jpg
Reply
Old Aug 26, 2014 | 07:58 AM
  #4
CompleteCherokee's Avatar
Member

Joined: Aug 2013
Posts: 248
Likes: 0
From: georgia
Year: 1984
Model: Cherokee
Engine: 4 cyl
Default

You said you looked under the hood and it was running rough as well? So bad running both at idle and at throttle. As mentioned above, check MAP first as its easiest. Next I'd check timing and then for a clogged cat.
Reply
Old Aug 26, 2014 | 08:02 AM
  #5
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Timing is not adjustable.

A vacuum test would be good. Tip 16.

The old MAP to throttle body hose would be the FIRST place I'd look.
Reply
Old Aug 26, 2014 | 09:32 AM
  #6
jretzky's Avatar
Thread Starter
Member

Joined: Aug 2011
Posts: 175
Likes: 0
Model: Cherokee
Default 89 4.0L Cherokee Laredo-engine troubles.

Good morning!~all, and thanks for the reply. Haven't had a chance to look at the Jeep yet...today after work.


It is parked at the bottom of our hill.


The 4.0L engine starts and when I open the hood the engine was running, but had a little bit of a miss to it. Usually it ran smooth. It didn't seem to respond to stepping on the gas peddle.


I will check the MAP sensor and the tube you were talking about.
I have several cats and kittens running around my place and I wonder if one of them got into the engine compartment.


I have a parts Jeep and maybe that one has what I need.
It was popping loud in the exhaust.


Thanks!~jretzky


I replaced the fuel pump about 3 months ago.
Reply
Old Aug 27, 2014 | 08:03 AM
  #7
CompleteCherokee's Avatar
Member

Joined: Aug 2013
Posts: 248
Likes: 0
From: georgia
Year: 1984
Model: Cherokee
Engine: 4 cyl
Default

I was suggesting to check timing to see if the timing jumped
Reply
Old Aug 27, 2014 | 08:06 AM
  #8
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by CompleteCherokee
I was suggesting to check timing to see if the timing jumped
They don't generally. Unless of course someone fails to secure the distributor down.
Reply
Old Aug 27, 2014 | 09:32 AM
  #9
jretzky's Avatar
Thread Starter
Member

Joined: Aug 2011
Posts: 175
Likes: 0
Model: Cherokee
Default

Well I checked the tube from the MAP sensor to the throttle body and it appears to be good. I didn't take it off to see if it was clogged.
I was thinking about it last night and I remembered it popping once in a while the previous week, but it still had power.


Tonight I will pull it back up to the house.
I was going to pull the #1 spark plug and put it on the compression stroke, line up the timing mark and see if the rotor is pointing to #1 on the distributor cap.


That's what we'd do in the olden days before they had all these sensors.
Other than that I'm lost.


Thanks!~John
Reply
Old Aug 28, 2014 | 07:25 AM
  #10
CompleteCherokee's Avatar
Member

Joined: Aug 2013
Posts: 248
Likes: 0
From: georgia
Year: 1984
Model: Cherokee
Engine: 4 cyl
Default

Originally Posted by cruiser54
They don't generally. Unless of course someone fails to secure the distributor down.
I was referring to the chain stretching and jumping a tooth. My old man had that happen on his 1990 4.0 back in the mid-90's (it had over 200k on the ticker though).
Reply
Old Aug 28, 2014 | 08:00 AM
  #11
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by CompleteCherokee
I was referring to the chain stretching and jumping a tooth. My old man had that happen on his 1990 4.0 back in the mid-90's (it had over 200k on the ticker though).
Even more rare.
Reply
Old Aug 28, 2014 | 09:30 AM
  #12
jretzky's Avatar
Thread Starter
Member

Joined: Aug 2011
Posts: 175
Likes: 0
Model: Cherokee
Default 89 4.0L Cherokee Laredo-engine troubles.

Good morning!~I got the Jeep back up to the house last night after work.


Funny thing, I drove it with no trouble at all and it was about 85* outside.


Then I pulled the distributor cap and appeared to never had been changed.


It was really bad and warn out, especially the center and the contact places for each cylinder.


I looked at the rotor and it was really warn out.


I only started having the problem when it had rained over the weekend (all day Saturday and most of Sunday). It was Monday that the car started to backfire and have no response to the gas pedal.


This morning it was damp outside and the windows were wet, but the car started right up and seemed to run good, that is until I started down the road and it back fired a little. I thought...no way and drove it back home.


Could it be just the cap?


Could any thing be affected by the moisture outside?


Thanks!~John
Reply
Old Aug 28, 2014 | 09:37 AM
  #13
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Cap, rotor, and wires. Do them all.
Reply
Old Aug 28, 2014 | 01:45 PM
  #14
DFlintstone's Avatar
CF Veteran

Joined: Aug 2011
Posts: 10,489
Likes: 24
From: Nor-Cal Coast
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Default

Probably the plugs also...
Reply
Old Aug 29, 2014 | 07:40 AM
  #15
CompleteCherokee's Avatar
Member

Joined: Aug 2013
Posts: 248
Likes: 0
From: georgia
Year: 1984
Model: Cherokee
Engine: 4 cyl
Default

spray some WD40 inside the distributor, as it will displace any water / moisture. Use a good lint-free rag to wipe it all down with. Then do this:

Originally Posted by cruiser54
Cap, rotor, and wires. Do them all.
