86 ICM Replacement

Thread Tools

Search this Thread

Old Mar 23, 2023 | 08:45 AM
  #16
agreen's Avatar
Senior Member
5 Year Member
Liked
Loved
Community Favorite

Joined: Dec 2020
Posts: 923
Likes: 250
From: North Augusta, SC
Year: 1998
Model: Cherokee (XJ)
Engine: 4L
Default

Ok, sounds like you need to pony up some more info.

Why did you replace the ICM?
Was it running before?
Did you just get this vehicle and haven't heard it run yet?

If it's popping through the intake, the most likely scenario is that it's either not timed right or the plug wires are on wrong. If you roll the engine to Top Dead Center (TDC) on the #1 cylinder, the rotor should point to the spot on the cap that has the #1 plug wire on it. The firing order is 1-2-3-4-5-6

You'll know you have TDC #1 when you pull the spark plug out of #1 cylinder and your finger gets pushed off the spark plug hole. Then look down to the crank pulley and line the notch up with the 0 degree spot on the timing cover.
Reply
Old Mar 23, 2023 | 08:48 AM
  #17
Leftysdad213's Avatar
Thread Starter
Newbie
5 Year Member

Joined: Jul 2020
Posts: 16
Likes: 0
Model: Cherokee (XJ)
Default

I replaced it because I lost fire.....it was running before, but lost fire/spark....my nephew pulled the cap and rotor and wires off when I wasn't there and didn't mark anything....so when I put it back together to what I thought was right, it's doing the popping back through the carb and not cranking
Reply
Old Mar 23, 2023 | 11:03 AM
  #18
lawsoncl's Avatar
CF Veteran
5 Year Member
Liked
Loved
Community Favorite

Joined: Dec 2017
Posts: 4,365
Likes: 1,215
Year: 1989
Model: Comanche (MJ)
Engine: 4.0
Default


Reply
Old Mar 23, 2023 | 12:52 PM
  #19
Jeepwalker's Avatar
Senior Member
15 Year Member
Liked

Joined: Nov 2010
Posts: 682
Likes: 134
From: Good 'ol WI
Year: 1987
Model: Cherokee
Engine: 4.0
Default

Find the appropriate section & read through this:

https://jeep-manual.ru/index.php?page=XJ-2

.
Reply
Old Mar 24, 2023 | 08:38 AM
  #20
Leftysdad213's Avatar
Thread Starter
Newbie
5 Year Member

Joined: Jul 2020
Posts: 16
Likes: 0
Model: Cherokee (XJ)
Default

I can't seem to figure out where #1 on the actual dist cap....it looks like the one to the fartherst left looking from front, but I don't think it is because it's still popping after finding tdc and starting over
Reply
Old Mar 24, 2023 | 09:01 AM
  #21
Leftysdad213's Avatar
Thread Starter
Newbie
5 Year Member

Joined: Jul 2020
Posts: 16
Likes: 0
Model: Cherokee (XJ)
Default

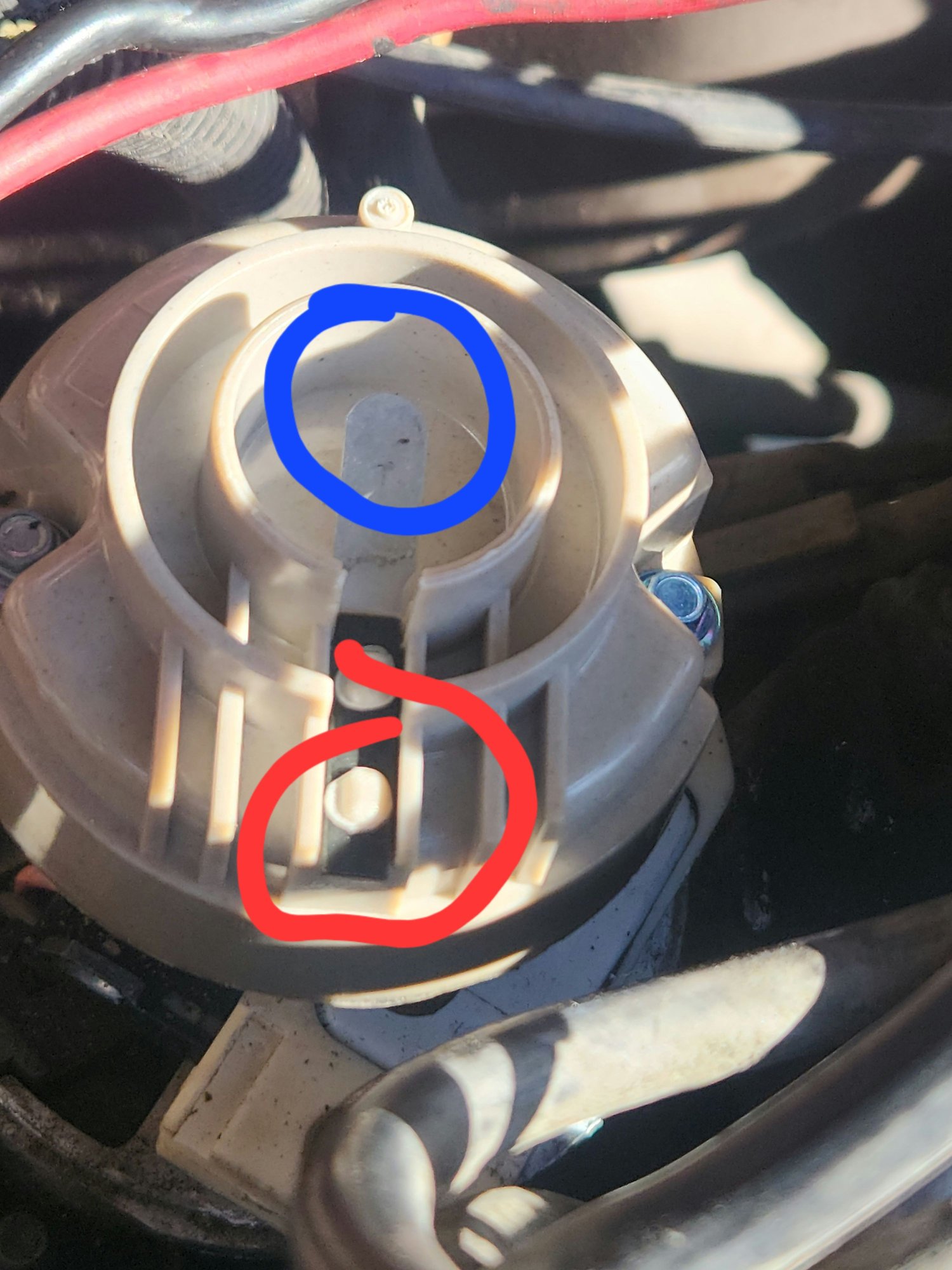

After doing tdc and finding it the right way, which end should I use to pint to #1
red or blue
Thanks

Reply
Old Mar 24, 2023 | 03:51 PM
  #22
Leftysdad213's Avatar
Thread Starter
Newbie
5 Year Member

Joined: Jul 2020
Posts: 16
Likes: 0
Model: Cherokee (XJ)
Default

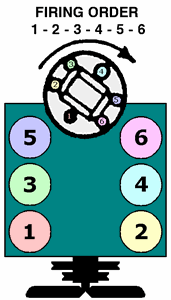

So.....pic number one is the correct firing order for the 2.8 in the jeep.....pics #2 is not.....went by pic 1 and it cranked immediately after finding TDC
hope this helps....also, what ahould timing read when I put a light on it, thanks again
