5spd trans help
Ok I just bought this today its a 88 4.0 5spd. It needs a pass side axle and the 5spd is bad in it.but it has a rough country 4.5 lift with extended brake lines,adjustable track bars and add a leaf and 33s.the guy I bought it from said only a 5spd from a 87-89 would fit it.is this true or can I get a trans from another year cherokee? thanks
12-29-2011, 09:55 PM
#2
Seasoned Member
Join Date: Sep 2011
Location: eastern WA
Posts: 485
Likes: 0
Received 0 Likes
on
0 Posts
Year: 88
Model: Cherokee
Engine: 4.0
You can convert it over to any cherokee 5 spd. But as far as drop in replacement yeah those are the only years that had the BA10/5 in it.
12-29-2011, 10:19 PM
#3
CF Veteran
Join Date: Oct 2010
Location: Long Island N.Y.
Posts: 1,889
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1999
Model: Cherokee
Engine: I6 4.0
An ax15 will bolt in to it but since yours is an 88 the split was in 88 so find outvthe build date and confirm what tranny in it
01-05-2012, 03:26 PM
#5
Member
Thread Starter
Join Date: Jul 2011
Location: Lenoir city ,TN
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Can someone give me a site where I can decode this 5spd trans Jan 13/89. 53005454 209219 and if tell me what I need to do to convert to a later model 5spd trans.what has to be changed.
01-05-2012, 03:31 PM
#6
CF Veteran
Join Date: Nov 2011
Location: Edmonton
Posts: 2,322
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0

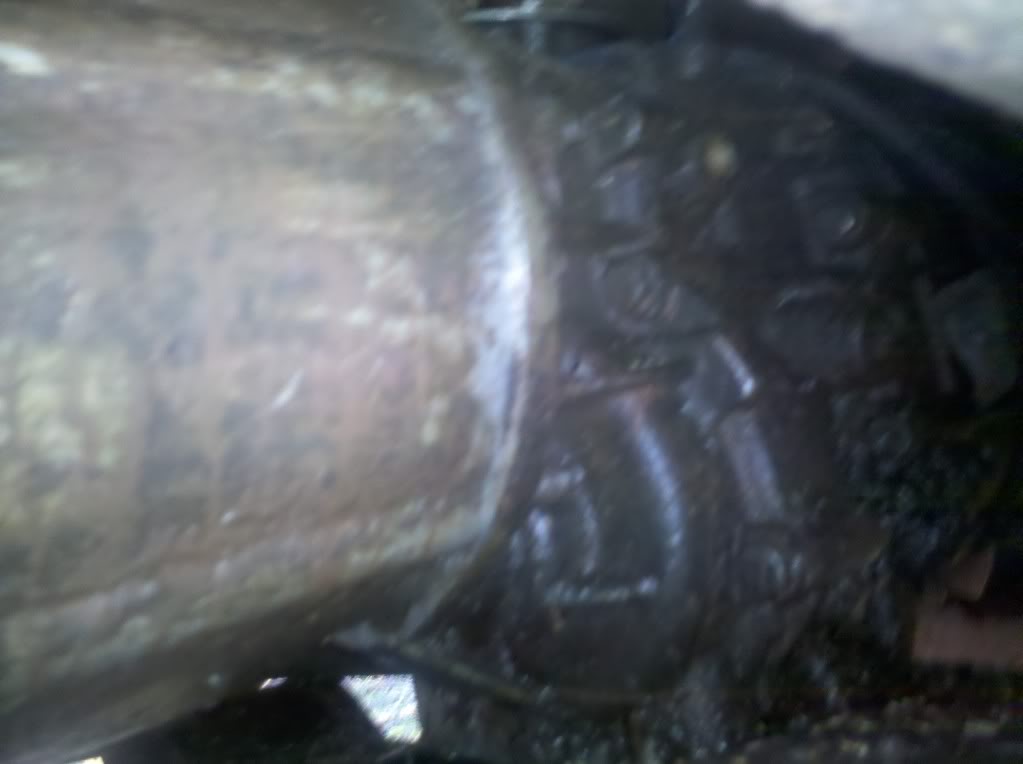

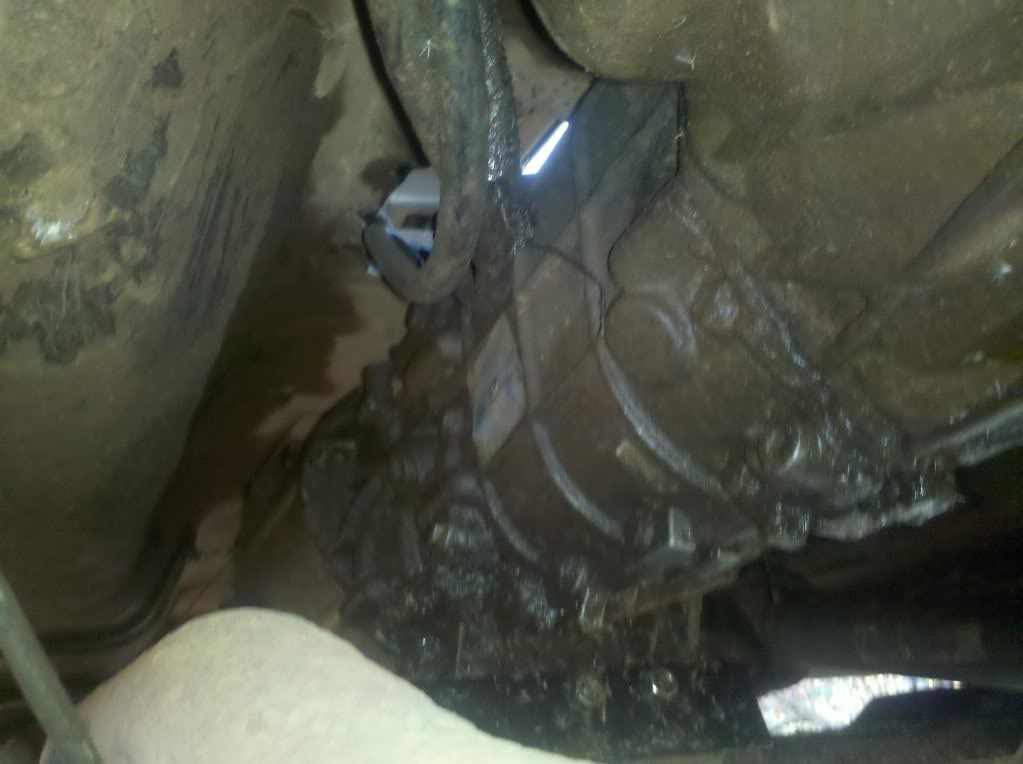

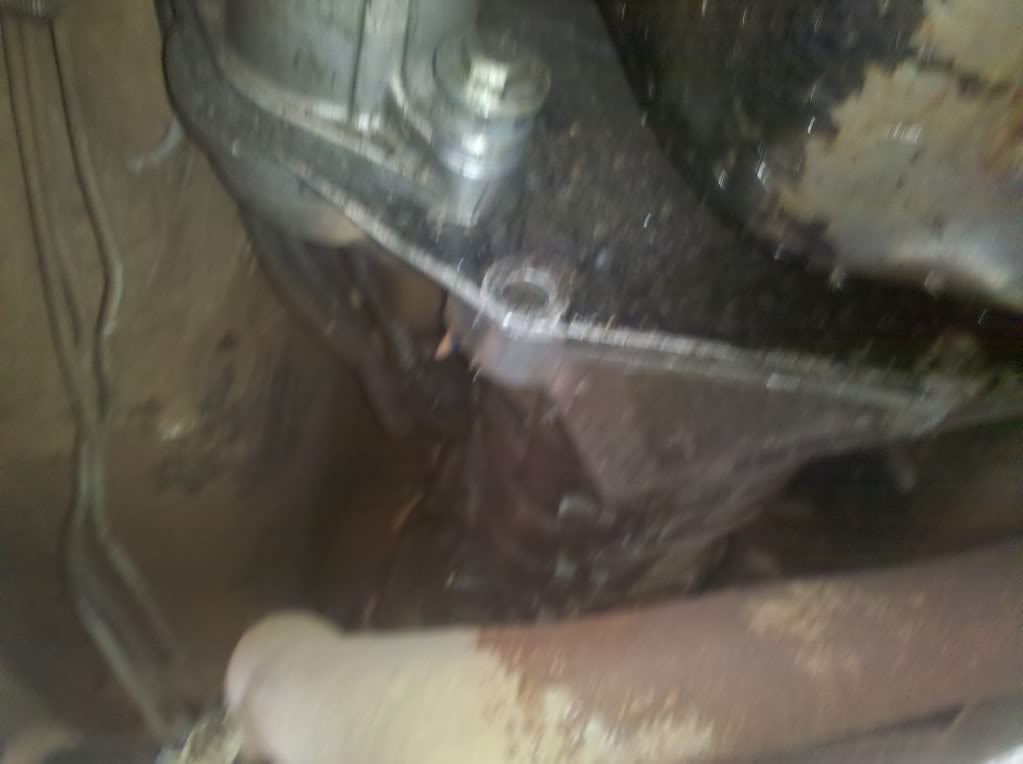

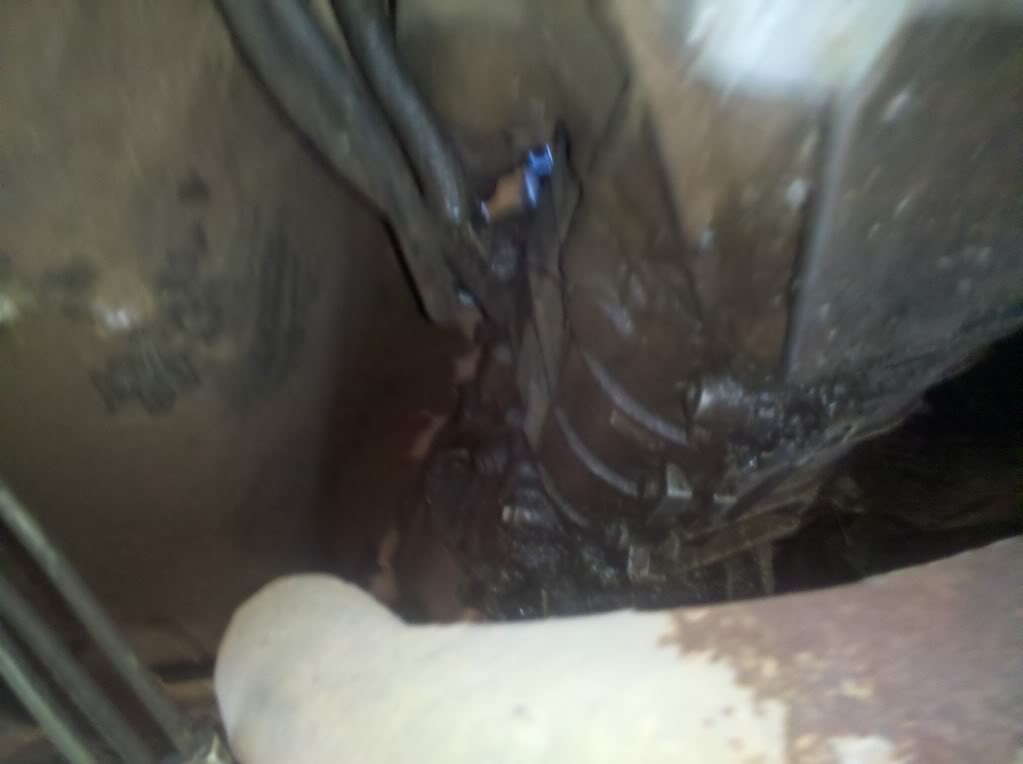

Google image both...the BA10 is split in the middle. Easy to see the difference once you know what they look like. Or post a pic and we'll tell you...forget the#'s let us see!
01-05-2012, 03:48 PM
#7
Seasoned Member
Join Date: Jul 2009
Location: Los Angeles
Posts: 306
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L HO
Google is your Friend. Here is a link for both AX-15 & BA10/5. I found this useful when my AX-15 took a crap.
BA10/5: http://www.novak-adapt.com/knowledge/ba10_5.htm
AX-15: http://www.novak-adapt.com/knowledge/ax15.htm
Post what you find. Good Luck!
Trending Topics
01-05-2012, 04:26 PM
#9
Seasoned Member
Join Date: Jul 2009
Location: Los Angeles
Posts: 306
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L HO
http://www.jeeptech.com/convtrans/ax15swap.html
Last edited by LaredoBucket; 01-05-2012 at 04:53 PM.
01-06-2012, 12:03 PM
#12
Seasoned Member
Join Date: Oct 2009
Posts: 254
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L
You just need to make sure the output of the tranny matches the input of the x-fer case. There are spline count and depth differences. I believe the Peugeot tranny has a 21 spline output (therefore your x-fer case will have a 21 spline input). I think that all the AX-15 and NV3550s have 23 spline outputs. When I swapped out my BA5/10 for an NV3550, I had to install a different input gear into my x-fer case.
01-06-2012, 12:31 PM
#13
CF Veteran
Join Date: Nov 2011
Location: Edmonton
Posts: 2,322
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
Originally Posted by TheNerd
You just need to make sure the output of the tranny matches the input of the x-fer case. There are spline count and depth differences. I believe the Peugeot tranny has a 21 spline output (therefore your x-fer case will have a 21 spline input). I think that all the AX-15 and NV3550s have 23 spline outputs. When I swapped out my BA5/10 for an NV3550, I had to install a different input gear into my x-fer case.
01-11-2012, 07:38 AM
#14
Member
Thread Starter
Join Date: Jul 2011
Location: Lenoir city ,TN
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
I don't won't to but for right now my Cheapest option is swapping in a aw4 till I save up for a swap the ax-15.this way I can use my stock transfer case .I'm looking right now at all I need to do for the swap.should be just removing one and adding the auto.
