4 wheel drive wobble xj NEED HELP NOT DEATH WOBBLE
11-27-2016, 06:33 PM
#1
Newbie
Thread Starter
Join Date: Nov 2016
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
4 wheel drive wobble xj NEED HELP NOT DEATH WOBBLE
When i put my 2001 xj sport into 4 wheel drive and turn it wobbles and rattles . It feels like the tires are rubbing but there not i dont know whats wrong what do i need to replace?
11-27-2016, 08:02 PM
#3
Newbie
Thread Starter
Join Date: Nov 2016
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
so when i put in in 4 and try to turn the vehicle around by stering, it shakes the **** out of the jeep and midway through turning it feels like it just stops . the whole front under side has rust my dad thinks its the ball joints and the my dad is also wanting me to ask is it ok to have lots of rust on an axle
11-27-2016, 08:19 PM
#5
Senior Member
Join Date: Sep 2008
Location: Sioux Falls, SD
Posts: 897
Likes: 0
Received 12 Likes
on
9 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0L
I HOPE you are doing 4 wheel drive on LOOSE sand, gravel or snow.
If you are doing this on clean blacktop or concrete, you are damaging your Jeep.
4 Wheel drive is for LOOSE driving conditions. Trails, Snow, Gravel and Sand only.
You are binding up your driveline as the front wheels need to turn FASTER during a turn than the rear wheels. When they are all locked together in 4 wheel mode there is no way they can alter the speeds and it makes the wheels "HOP" around. Very VERY VERY BAD on your XJ.

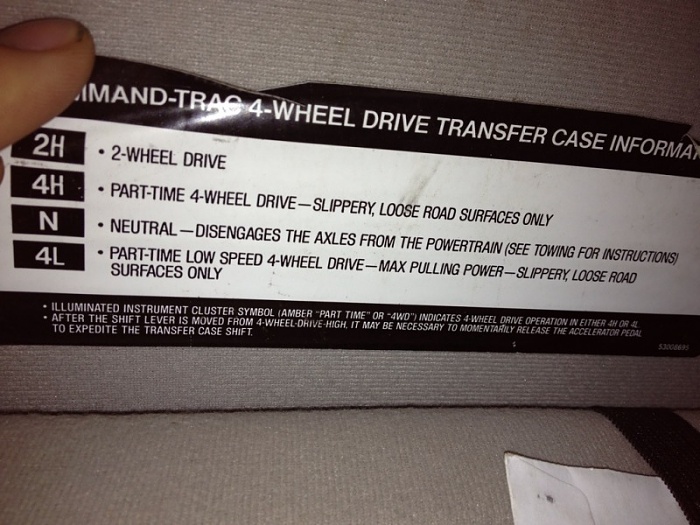

UNLESS you have a 242 Transfer Case. This has a 4 wheel drive "FULL TIME" mode that CAN be driven all the time in 4x4 mode as the transfer case allows the front or rear axles to spin at different speeds as needed.
IF you are doing this on the proper surfaces, you probably need the front outer U-Joints replaced in the front axles behind the knuckle. I had both my fronts replaced when I did the hub-bearings a few years ago.
If you are doing this on clean blacktop or concrete, you are damaging your Jeep.
4 Wheel drive is for LOOSE driving conditions. Trails, Snow, Gravel and Sand only.
You are binding up your driveline as the front wheels need to turn FASTER during a turn than the rear wheels. When they are all locked together in 4 wheel mode there is no way they can alter the speeds and it makes the wheels "HOP" around. Very VERY VERY BAD on your XJ.
UNLESS you have a 242 Transfer Case. This has a 4 wheel drive "FULL TIME" mode that CAN be driven all the time in 4x4 mode as the transfer case allows the front or rear axles to spin at different speeds as needed.
IF you are doing this on the proper surfaces, you probably need the front outer U-Joints replaced in the front axles behind the knuckle. I had both my fronts replaced when I did the hub-bearings a few years ago.
11-28-2016, 07:22 AM
#6
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Hmmm
11-28-2016, 12:54 PM
#7
Former Sponsor
Join Date: Sep 2016
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
It would depend on where you are testing it as the other guy said. You need to be in some loose stuff for it to operate smoothly in 4WD. 4 lo will be even worse. Also not sure what diffs you are running. Limited slip will cause chirping and a bucking type feel when turning. If you are locked then expect it to be even worse.
Take a look at your drive shafts and front axle shafts. If they are badly worn you will be loading and unloading them while moving forward and turning.
Take a look at your drive shafts and front axle shafts. If they are badly worn you will be loading and unloading them while moving forward and turning.
