4.0l Oil Pan Gasket Question
Thread Starter
Member
Joined: Feb 2021
Posts: 192
Likes: 8
From: S.E. KY
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0l
4.0l Oil Pan Gasket Question
I'm getting ready to drop the oil pan on my 90xj. My research so far has turned up differing opinions on where to use RTV when installing said gasket. I'll be installing a FEL-PRO OS 34308 gasket. Some I've seen don't use any RTV, others quite a bit. My question is how much and where, or not at all? Thanks
Senior Member
Joined: May 2021
Posts: 560
Likes: 112
From: Western Washington
Year: 1988
Model: Cherokee (XJ)
Engine: 4.0L
Factory service manual instructions from Cruisers website, page 1201:
Technical Manuals | cruiser54
The FelPro gasket is superior to and different from the stock gasket. It comes with it's own instructions. I used it when replacing the rear main seal. I used a bead of Locktite 518 in the 4 "corners".
Technical Manuals | cruiser54
The FelPro gasket is superior to and different from the stock gasket. It comes with it's own instructions. I used it when replacing the rear main seal. I used a bead of Locktite 518 in the 4 "corners".
Senior Member
Joined: Mar 2018
Posts: 660
Likes: 300
From: Under the Jeep
Year: 1993
Model: Cherokee (XJ)
Engine: 2.9 Stroker 4cyl
Factory service manual instructions from Cruisers website, page 1201:
Technical Manuals | cruiser54
The FelPro gasket is superior to and different from the stock gasket. It comes with it's own instructions. I used it when replacing the rear main seal. I used a bead of Locktite 518 in the 4 "corners".
Technical Manuals | cruiser54
The FelPro gasket is superior to and different from the stock gasket. It comes with it's own instructions. I used it when replacing the rear main seal. I used a bead of Locktite 518 in the 4 "corners".
This engine is a 4Cyl. but same same for the 6Cyl.

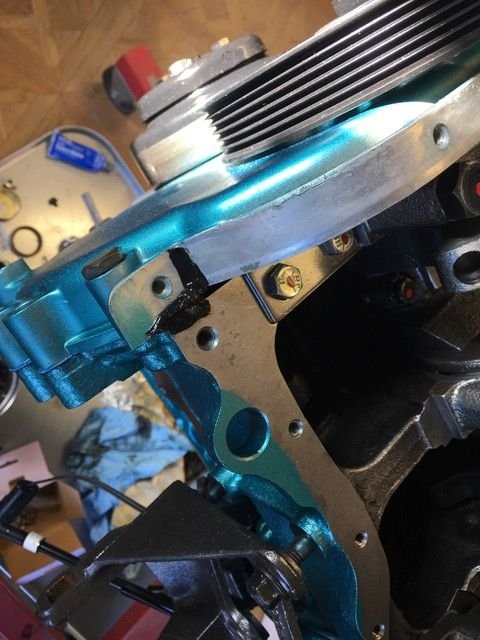

Front of engine

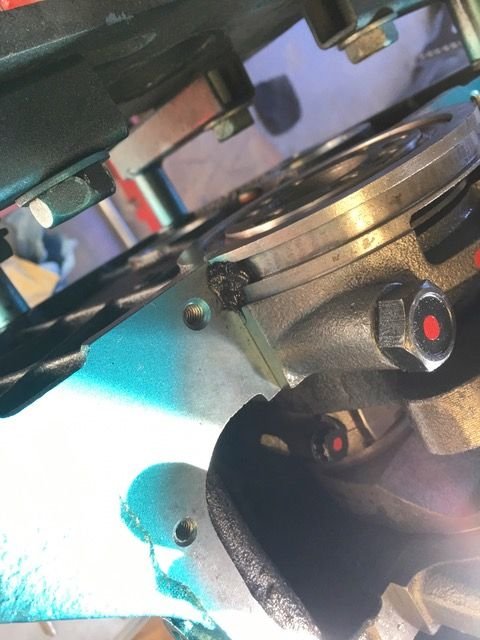

Back
CF Veteran
Joined: Oct 2015
Posts: 7,517
Likes: 1,626
Year: 2000
Model: Cherokee (XJ)
When I put in a new water pump and thermostat housing in my '00 I used FelPro gaskets instead of the supplied paper ones.
I researched this and FelPro was against using gunk on those best I could tell.
Some where in my poking around about this I found something that said if any kind of gunk was needed it would be supplied with the gasket so....
I researched this and FelPro was against using gunk on those best I could tell.
Some where in my poking around about this I found something that said if any kind of gunk was needed it would be supplied with the gasket so....
