Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

4.0 ohms at TPS sensor

Thread Tools

Search this Thread

Old Nov 22, 2014 | 09:26 PM
  #16
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by LSxaaron8800
could old gas be causing this? when i bought it the jeep had been sitting for about a year or longer.. i have only put about two half tanks thru it. i dont let it get too empty because the gauge doesn't work right
Maybe. But, don't ignore stuff already posted up here.
Reply
Old Nov 23, 2014 | 07:10 AM
  #17
LSxaaron8800's Avatar
Thread Starter
Junior Member

Joined: Nov 2014
Posts: 34
Likes: 0
From: so. IN
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Originally Posted by cruiser54
Maybe. But, don't ignore stuff already posted up here.
I haven't checked the coil yet, that will be today
Reply
Old Nov 23, 2014 | 09:50 AM
  #18
LSxaaron8800's Avatar
Thread Starter
Junior Member

Joined: Nov 2014
Posts: 34
Likes: 0
From: so. IN
Year: 1989
Model: Cherokee
Engine: 4.0
Default

well i didn't realize there were two coolant temp sensors. i pulled the one out of the bottom of the engine block and i am not getting any resistance..
Reply
Old Nov 23, 2014 | 01:06 PM
  #19
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by LSxaaron8800
well i didn't realize there were two coolant temp sensors. i pulled the one out of the bottom of the engine block and i am not getting any resistance..

There's only one Coolant Temp Sensor, in the block.

The Coolant Temp SENDER is in the head.

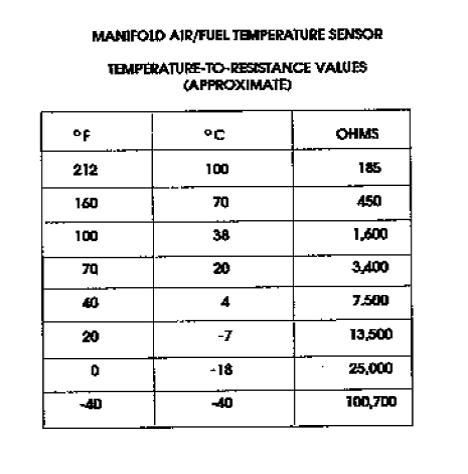

Here are the values for your CTS:
Attached Images
Reply
Old Mar 4, 2015 | 08:36 PM
  #20
LSxaaron8800's Avatar
Thread Starter
Junior Member

Joined: Nov 2014
Posts: 34
Likes: 0
From: so. IN
Year: 1989
Model: Cherokee
Engine: 4.0
Default

just want to give an update. it ended up being the EGR valve.
Reply
Old Mar 4, 2015 | 09:32 PM
  #21
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by LSxaaron8800
just want to give an update. it ended up being the EGR valve.
Thanks for the update. What was the problem with it?
Reply
Old Mar 4, 2015 | 09:43 PM
  #22
LSxaaron8800's Avatar
Thread Starter
Junior Member

Joined: Nov 2014
Posts: 34
Likes: 0
From: so. IN
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Originally Posted by cruiser54
Thanks for the update. What was the problem with it?
every time it opened it was making the engine stumble. when you blip the throttle i could see the egr open up.

while the engine was at idle i put a remote vacuum line on it and sucked. the engine would fumble around and then die. i unhooked the vacuum line from it and all seems good.

I have never owned a vehicle with an egr so i not quite sure how they work.

i did over heat the engine the other day when i go stuck in a ditch. it took me about 30 mins of revvin to the moon to get it out and i didnt have an eye on the temp gauge. the temp was pegged past 260. seems the thermostat was stuck.

drove it another 15 miles to work and it shut off. tried to start it and it sounded like the engine was seized up. I let it cool down and it started back up. today i replaced the thermostat and topped off the coolant. looks like its going to be ok.

Last edited by LSxaaron8800; Mar 4, 2015 at 09:46 PM.
Reply
Old Mar 4, 2015 | 09:45 PM
  #23
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by LSxaaron8800
every time it opened it was making the engine stumble. when you blip the throttle i could see the egr open up.

while the engine was at idle i put a remote vacuum line on it and sucked. the engine would fumble around and then die. i unhooked the vacuum line from it and all seems good.

I have never owned a vehicle with an egr so i not quite sure how they work.

i did over heat the engine the other day when i go stuck in a ditch. it took me about 30 mins of revvin to the moon to get it out and i didnt have an eye on the temp gauge. the temp was pegged past 260. seems the thermostat was getting stuck.
It shouldn't have opened at those times. I wonder if the EGR solenoid was at fault.
Reply
