3" and SYE?
#1
Member
Thread Starter
Join Date: Sep 2010
Location: ABQ
Posts: 225
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0
3" and SYE?
Since getting a small lift I have been having drive line vibes like mad. When you let your foot off the gas it feels and sounds like the drive shaft is about to pop out of the x-fer case. Guys at RC told me that one is not needed, but the local shops said that they would really consider one as it is sitting out quite far. Suspension has sagged about 3/4" over the past week, but really has not improved. It has an inch x-fer case drop on it right now, but don't really want to start dropping it further by stacking up washers.
Please advise.
Please advise.
#2
Senior Member
I have a 5 " lift and a 1" t-case drop and no vibes whatsoever, so i would look into having your driveshaft balanced or possibly your tires (if you put new ones on after the lift which i suspect you probably did)
#4
Member
Thread Starter
Join Date: Sep 2010
Location: ABQ
Posts: 225
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0
That is good to note you can get a larger lift and not need a SYE. The vibration existed with both the 235 and 31 that are on there now. So thankfully I can eliminate that from possible causes. End lift was about 6" taller than it was so we are a little out of the original spec for the 3" lift.
#5
CF Veteran
Join Date: Jul 2010
Location: Albuquerque
Posts: 1,208
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0
That is good to note you can get a larger lift and not need a SYE. The vibration existed with both the 235 and 31 that are on there now. So thankfully I can eliminate that from possible causes. End lift was about 6" taller than it was so we are a little out of the original spec for the 3" lift.
#6
Seasoned Member
Join Date: Oct 2010
Location: Muskegon, MI
Posts: 310
Likes: 0
Received 0 Likes
on
0 Posts
Year: I've had a few...
Model: Cherokee
Engine: A secret
what year is your xfer case and jeep? what rear axle do you have?
I had bad vibes at 3 inchs with a 1 inch as well. a SYE isn't a bad decision if you want to get bigger in the future. you can always try leaf shims too, because you're jeep should hold a 3 inch no problem
I had bad vibes at 3 inchs with a 1 inch as well. a SYE isn't a bad decision if you want to get bigger in the future. you can always try leaf shims too, because you're jeep should hold a 3 inch no problem
#7
Junior Member
Join Date: Oct 2010
Location: SW Portland OR
Posts: 51
Likes: 0
Received 0 Likes
on
0 Posts
Year: 01
Model: Cherokee
Engine: 4.0L
Since getting a small lift I have been having drive line vibes like mad. When you let your foot off the gas it feels and sounds like the drive shaft is about to pop out of the x-fer case. Guys at RC told me that one is not needed, but the local shops said that they would really consider one as it is sitting out quite far. Suspension has sagged about 3/4" over the past week, but really has not improved. It has an inch x-fer case drop on it right now, but don't really want to start dropping it further by stacking up washers.
Please advise.
Please advise.
Trending Topics
#10
Junior Member
Join Date: Oct 2010
Location: Ohio
Posts: 42
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Since getting a small lift I have been having drive line vibes like mad. When you let your foot off the gas it feels and sounds like the drive shaft is about to pop out of the x-fer case. Guys at RC told me that one is not needed, but the local shops said that they would really consider one as it is sitting out quite far. Suspension has sagged about 3/4" over the past week, but really has not improved. It has an inch x-fer case drop on it right now, but don't really want to start dropping it further by stacking up washers.
Please advise.
Please advise.
#11
Member
Thread Starter
Join Date: Sep 2010
Location: ABQ
Posts: 225
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0
I have that same exact problem, im running 3.5", 31's, and i also have a 1in transfer case drop......Whenever I let off the gas its almost like a bad grinding and when i put my foot back on it feels like something is almost re-engaging again... Its weird, i almost think it may be slop because my slip yoke does not seem all too bad....Im having a jeep specialty shop look at it in two weeks

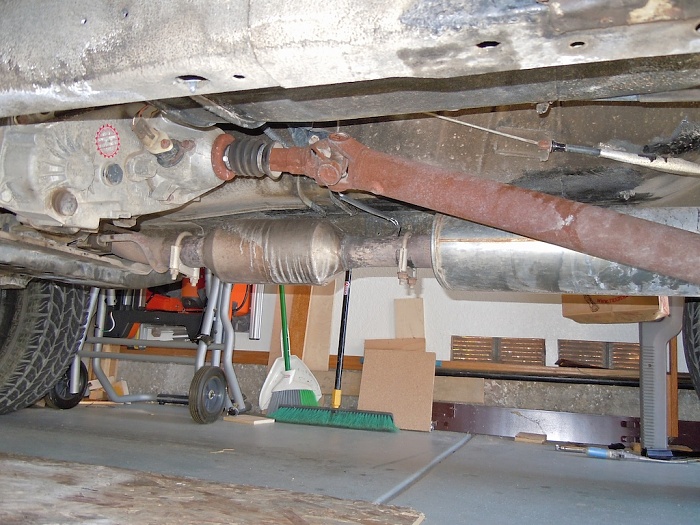

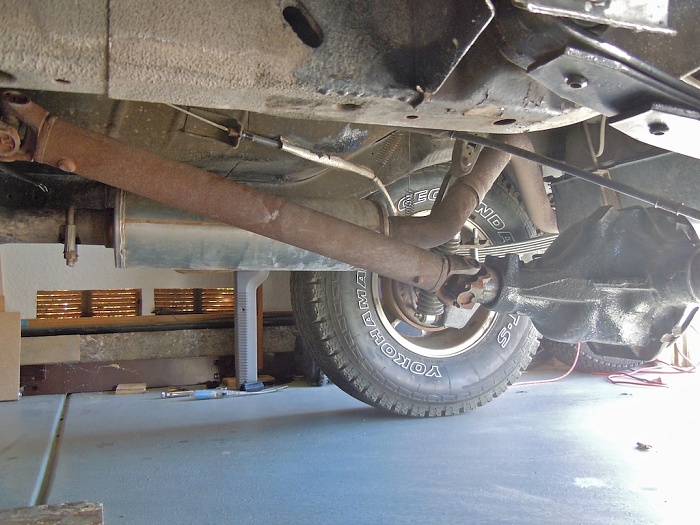

Regardless. I just got back from work and snapped a few photos. As for the driveshaft angle it is sitting at 17.5 degrees off horizontal using ground as my reference point. Used an old Hilger & Watts M.C. Clinometer measuring the angle so it is accurate. Not sure how to accurately read the yoke coming out of the transfer case or diff. The base of the clinometer is fairly large getting in tight spaces.
#12
Newbie
Join Date: May 2010
Location: Kauai
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L
a screw loose???
Since getting a small lift I have been having drive line vibes like mad. When you let your foot off the gas it feels and sounds like the drive shaft is about to pop out of the x-fer case. Guys at RC told me that one is not needed, but the local shops said that they would really consider one as it is sitting out quite far. Suspension has sagged about 3/4" over the past week, but really has not improved. It has an inch x-fer case drop on it right now, but don't really want to start dropping it further by stacking up washers.
Please advise.
Please advise.
#14
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Since getting a small lift I have been having drive line vibes like mad. When you let your foot off the gas it feels and sounds like the drive shaft is about to pop out of the x-fer case. Guys at RC told me that one is not needed, but the local shops said that they would really consider one as it is sitting out quite far. Suspension has sagged about 3/4" over the past week, but really has not improved. It has an inch x-fer case drop on it right now, but don't really want to start dropping it further by stacking up washers.
Please advise.
Please advise.
#15
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Hey have you been driving my Jeep? Sound way to familiar...
Regardless. I just got back from work and snapped a few photos. As for the driveshaft angle it is sitting at 17.5 degrees off horizontal using ground as my reference point. Used an old Hilger & Watts M.C. Clinometer measuring the angle so it is accurate. Not sure how to accurately read the yoke coming out of the transfer case or diff. The base of the clinometer is fairly large getting in tight spaces.
Regardless. I just got back from work and snapped a few photos. As for the driveshaft angle it is sitting at 17.5 degrees off horizontal using ground as my reference point. Used an old Hilger & Watts M.C. Clinometer measuring the angle so it is accurate. Not sure how to accurately read the yoke coming out of the transfer case or diff. The base of the clinometer is fairly large getting in tight spaces.
