Default 2000 cherokee rear diff
Hi, new here and I have a 2000 cherokee sport with a 4.0 engine, I'm trying to figure out what rearend I have, I found some numbers on the diff and they are 9549. I have tried searching for them with know luck, any and all help would be appreciated. I'm thinking it is a 8.25.

Thanks Wahoo
wahoo is offline
Reply Like
Old 09-30-2010, 12:39 PM
  #2
Seasoned Member

Slugger's Avatar

Join Date: Feb 2010
Location: PA
Posts: 315
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Default
8.25

Slugger is offline
Reply Like
Old 09-30-2010, 12:40 PM
  #3
Honorary Moderator

96_xj's Avatar

Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Likes: 0
Received 13 Likes on 11 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Default
8.25 has a flat lipped bottom, and a rubber fill plug,

d35 has around bottom and a screw in style fill plug
96_xj is offline
Reply Like
Old 09-30-2010, 12:59 PM
  #4
CF Veteran

RoyalXJ's Avatar

Join Date: Jul 2009
Location: West Deptford, NJ
Posts: 1,839
Likes: 0
Received 7 Likes on 7 Posts
Year: 97
Model: Cherokee
Engine: 4.0
Default
ive seen 35s with rubber plugs. just look for the lip on the bottom. if it doesnt have it then its a 35
RoyalXJ is offline
Reply Like
Old 09-30-2010, 02:21 PM
  #5
Registered Users

rich's Avatar

Join Date: Sep 2009
Location: morrisonville ny
Posts: 1,371
Likes: 0
Received 2 Likes on 1 Post
Year: 2000 @ 1994 givin away
Model: Cherokee
Engine: 4.0
Default

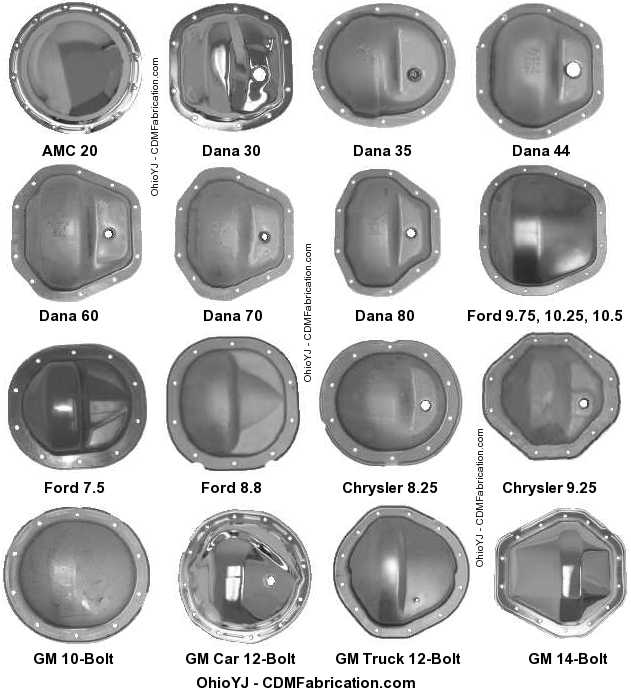

Name: axlechart.jpg Views: 460 Size: 45.9 KB see if it here.(it's 8.25 if you dont have abs if you have abs its a d35)
Last edited by rich; 09-30-2010 at 02:24 PM.
rich is offline
Reply Like
Old 09-30-2010, 03:56 PM
  #6
Member
Thread Starter

wahoo's Avatar

Join Date: Sep 2010
Location: Grove City, Ohio
Posts: 213
Likes: 0
Received 1 Like on 1 Post
Year: 2000
Model: Cherokee
Engine: 4.0
Default rear diff
Thanks for all the replies, it is a 8.25.

Wahoo
wahoo is offline
Reply Like
Old 09-30-2010, 05:18 PM
  #7
CF Veteran

djb383's Avatar

Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes on 14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

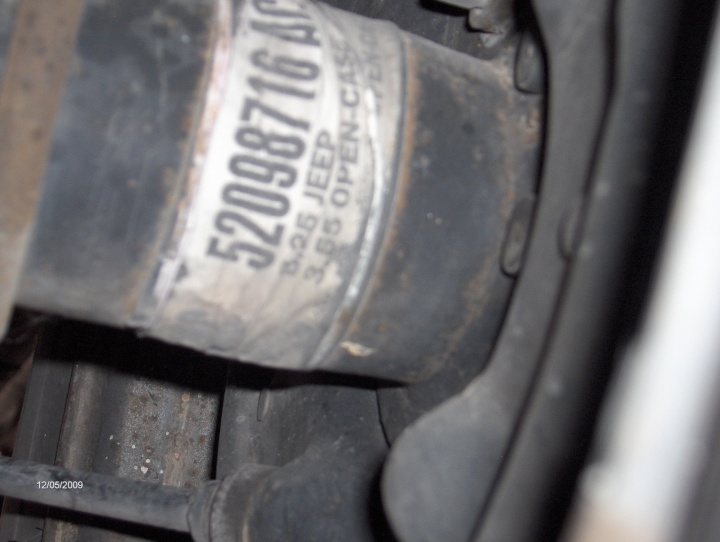

Anybody still have the factory sticker on the axle tube?
Attached Thumbnails 2000 cherokee rear diff-006.jpg
djb383 is offline
Reply Like

Trending Topics

Old 09-30-2010, 05:33 PM
  #8
Senior Member

2Evil4U's Avatar

Join Date: Jun 2010
Location: Slaughter, LA
Posts: 849
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
Default
Originally Posted by djb383
Anybody still have the factory sticker on the axle tube?
Rust-free showoff....

2Evil4U is offline
Reply Like
Old 09-30-2010, 05:33 PM
  #9
Newbie

scoob's Avatar

Join Date: Nov 2008
Posts: 23
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Default
haha i live in the rust belt and i have 7 cherokees not one has a sticker on it i'm lucky if they still have a tag that didn't rot off
