1997 5.2L engine gasket identification

Thread Tools

Search this Thread

Old 04-06-2016, 02:57 PM
  #1
Newbie
Thread Starter

dlwharleyman's Avatar

Join Date: Aug 2015
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default 1997 5.2L engine gasket identification

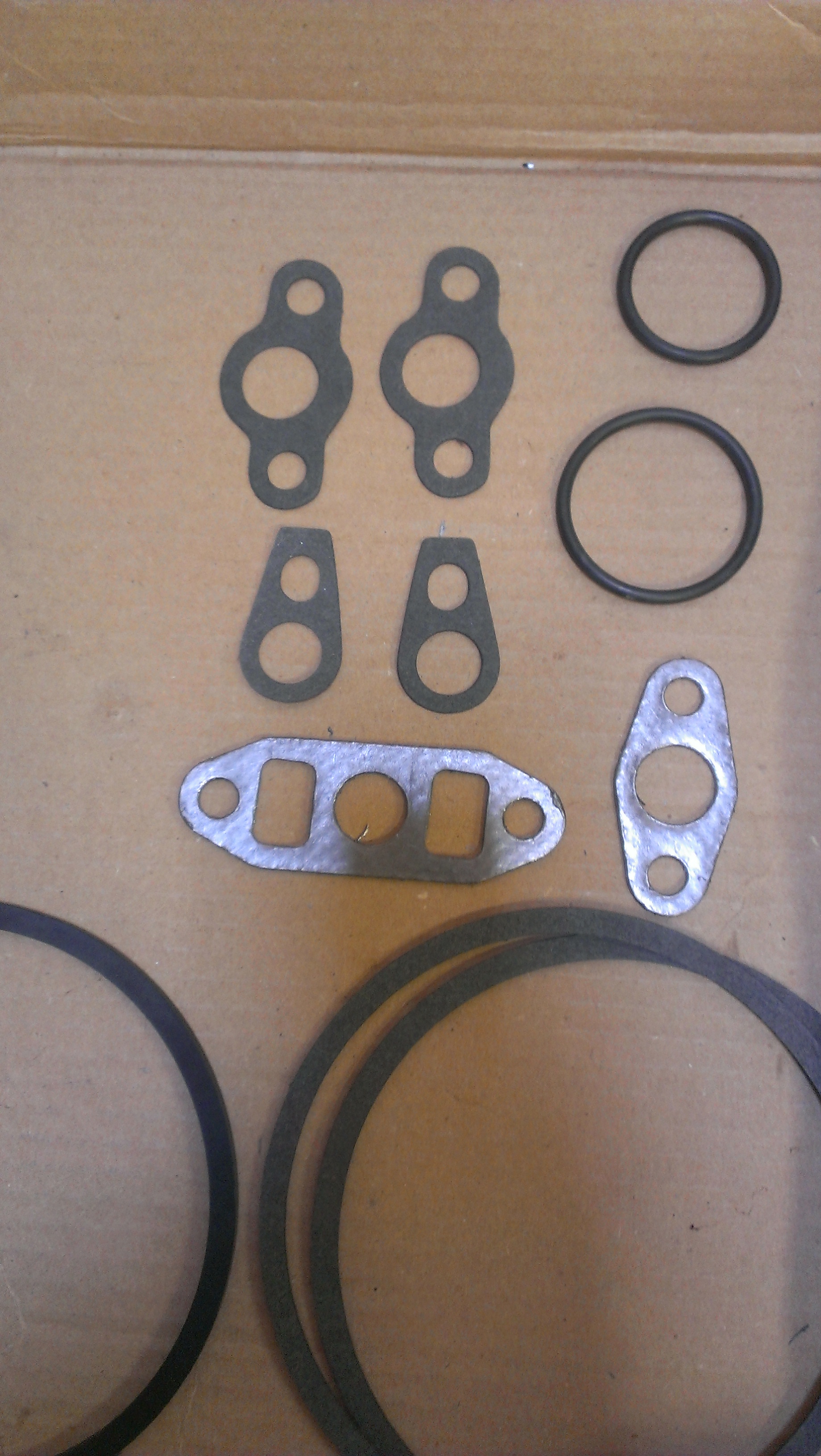

I am overhauling a 1997 Jeep 5.2L V8. I purchased an Eristic full gasket set, which included two packages, EH25021 and ED25020V. There was no gasket listing in the box. I have attached, or am trying to attach, a picture of the ones I can't identify. I believe the large round gaskets are for the throttle body intake, where the air tube connects. But there is one that is rubber and two that are fiber. Don't know why there are two different types. Also in the box, not shown on the picture, were to different sets of end gaskets for the intake manifold, which fit between the block and the bottom edge of the manifold. One for the front of the engine and one for the back. One set is a combination rubber/metal and the other is cork. Again, don't know why there are two different types. The rest in the picture I cannot identify. Your help would be appreciated.
Attached Thumbnails 1997 5.2L engine gasket identification-gaskets.jpg
