1990 Cherokee Neutral Safety Switch help!
#1
1990 Cherokee Neutral Safety Switch help!
So long story short I limped my switch along for a few years tapping ,and moving from park to neutral and it finally quit. Living in Ohio didn't help much when trying to get the original off needless to say it's broke now I need a replacement. I have ordered two different switches both came with the wrong plug. I even went to the extent to try to splice my old plug and the new switch with colors to the best of my ability with no avail. Does anyone know of a direct fit for a 1990? Or have something in mind? I use it to drive on the road so I don't want to bypass. Thanks!

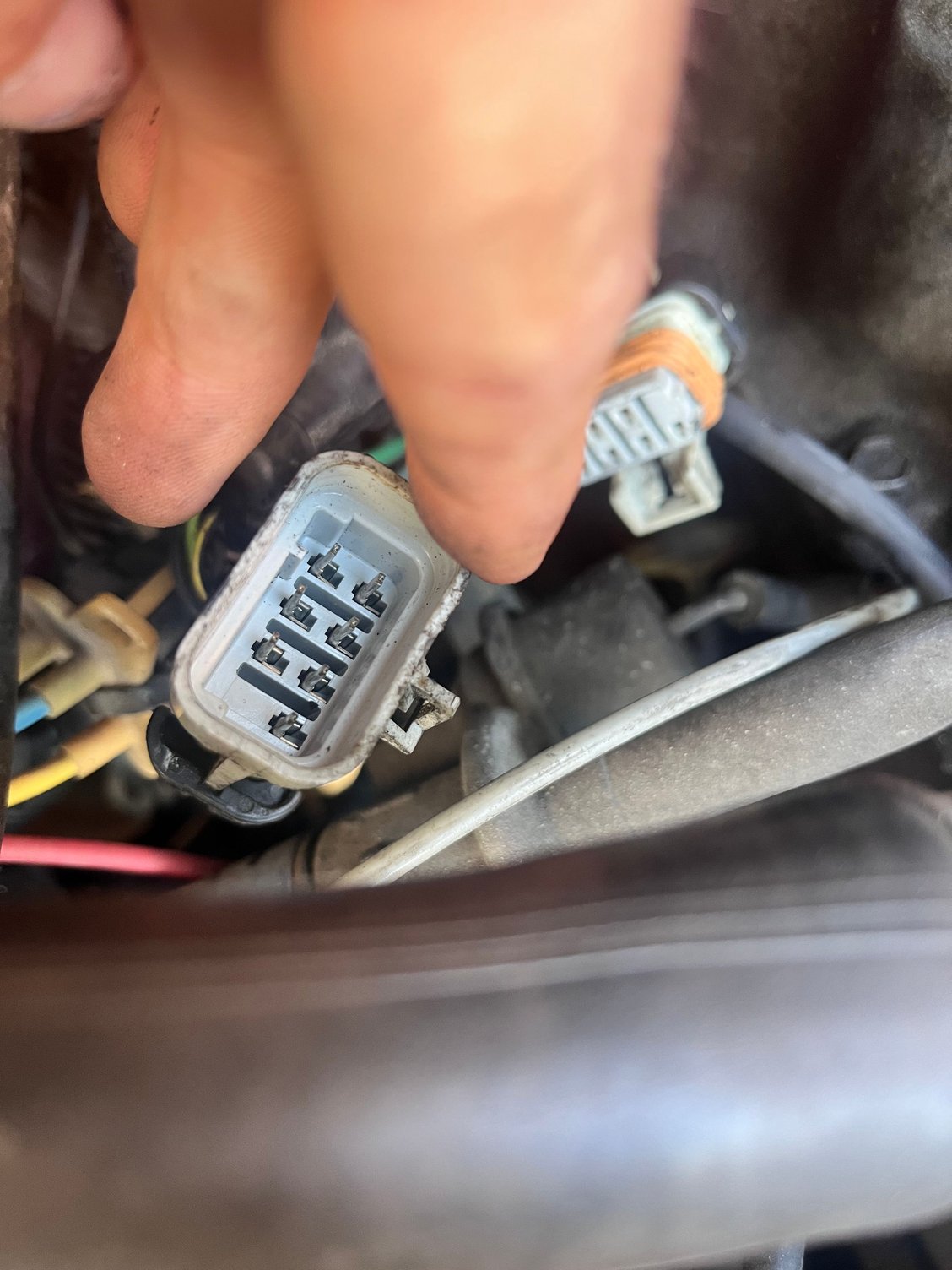

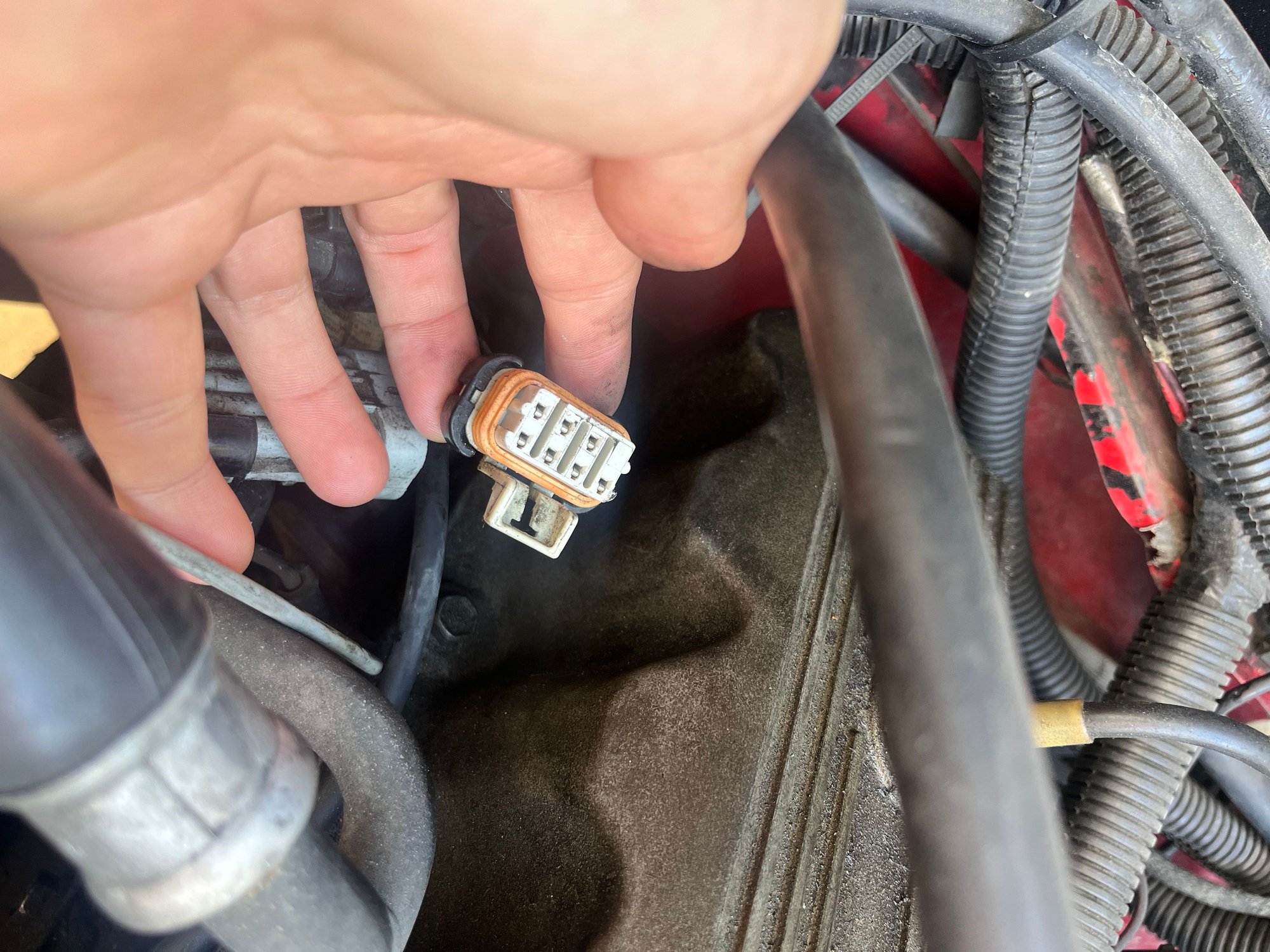

Oem plug on my 1990 cherokee
Oem plug on my 1990 cherokee
#2
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,549 Likes
on
1,256 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
They were the same for many years. I don't understand why you're having an issue finding one.
#3

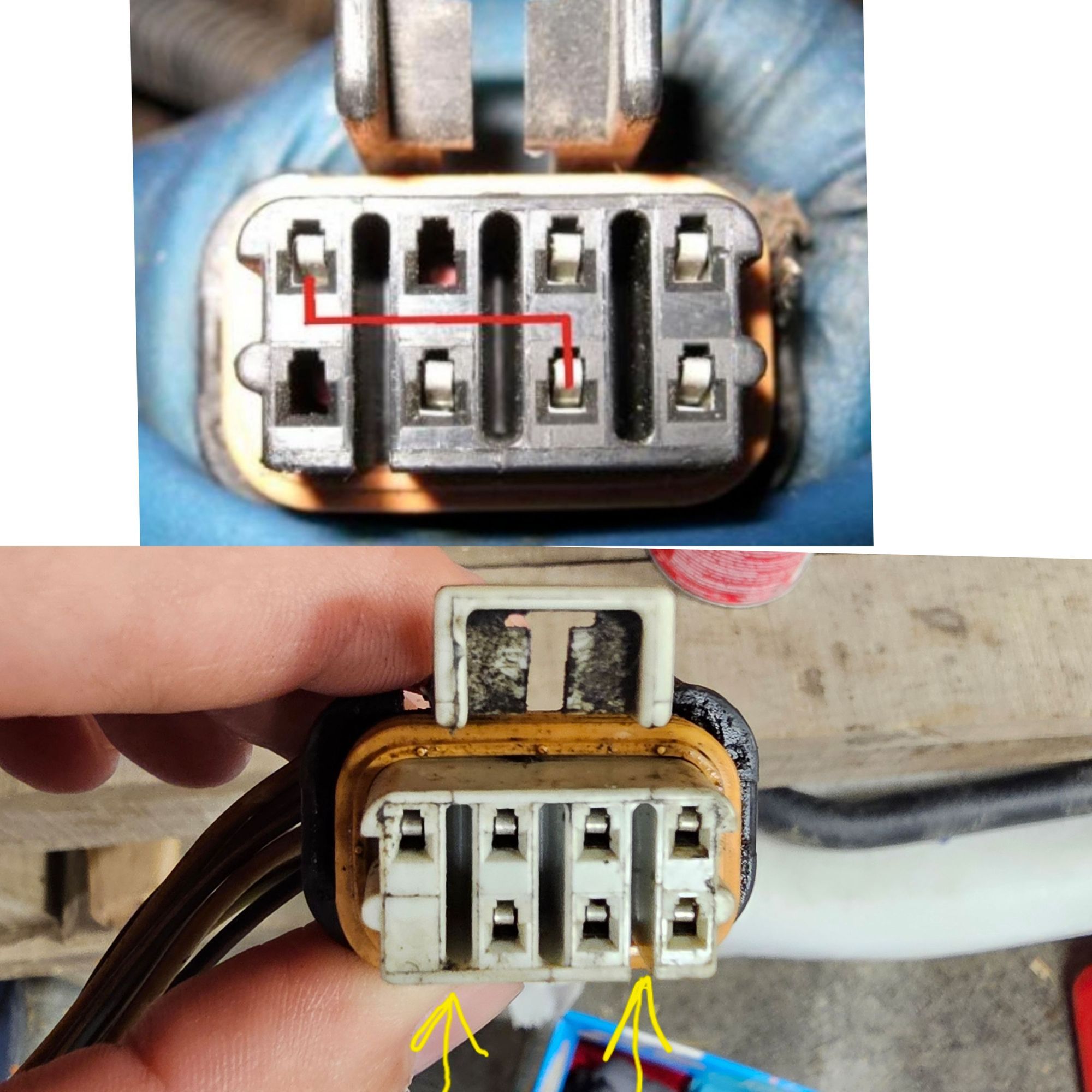

Top picture is just like what the replacements have (6 pins also). Bottom picture is my oem(7 pins). Look at where the arrows are pointing. The plug will not go in.I also dont know if the 6 vs 7 pins makes a difference. I also took a dremmel and made them both have the opening at the bottom to make the plug work. But based off of the colors of the wires i think its the wrong configuration.
#4
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,549 Likes
on
1,256 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
I'm guessing, but I bet you have purchased a later model NSS.
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,549 Likes
on
1,256 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

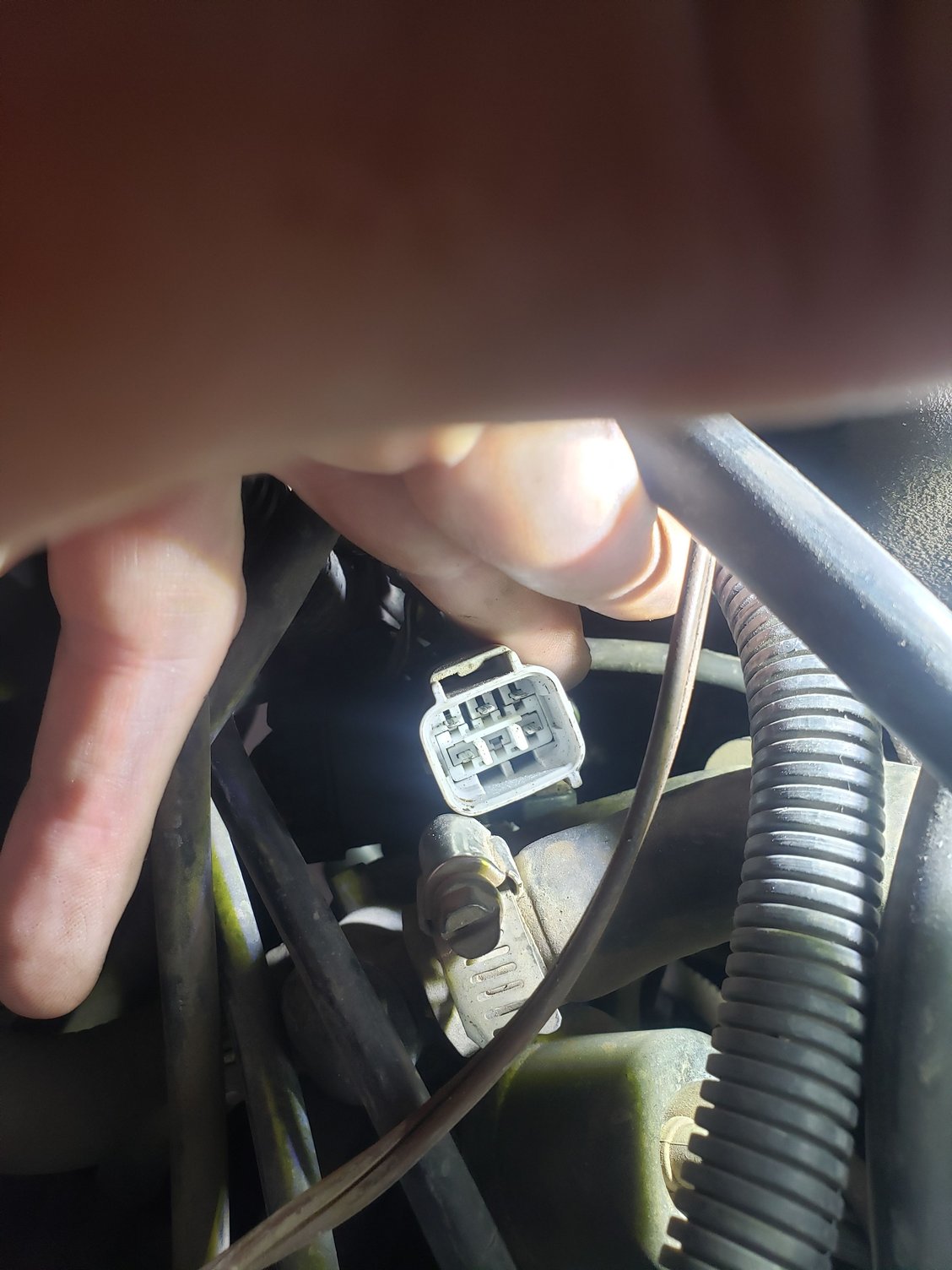

I just went out to my parts shed and checked one of my new NSSs. It is wired like the one that came off your Jeep originally.
#6
Its wierd though because i was refered to this site by another jeep guy same thing 87-96 but the cut out is on the wrong side and still only 6 pins. I appreciate the help. If you have a new one that lines up with my oem ill 1000% buy it i just want to get it going
#7
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,549 Likes
on
1,256 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
You coulda got a mis-boxed part.
Trending Topics
#8
CF Veteran
Join Date: Aug 2020
Location: SoCal
Posts: 1,540
Received 422 Likes
on
341 Posts
Year: 1988
Model: Cherokee (XJ)
Engine: 4.0L
Hasn't the NSS has been the same for '87-'96 and changed to a more square plug in '97+?

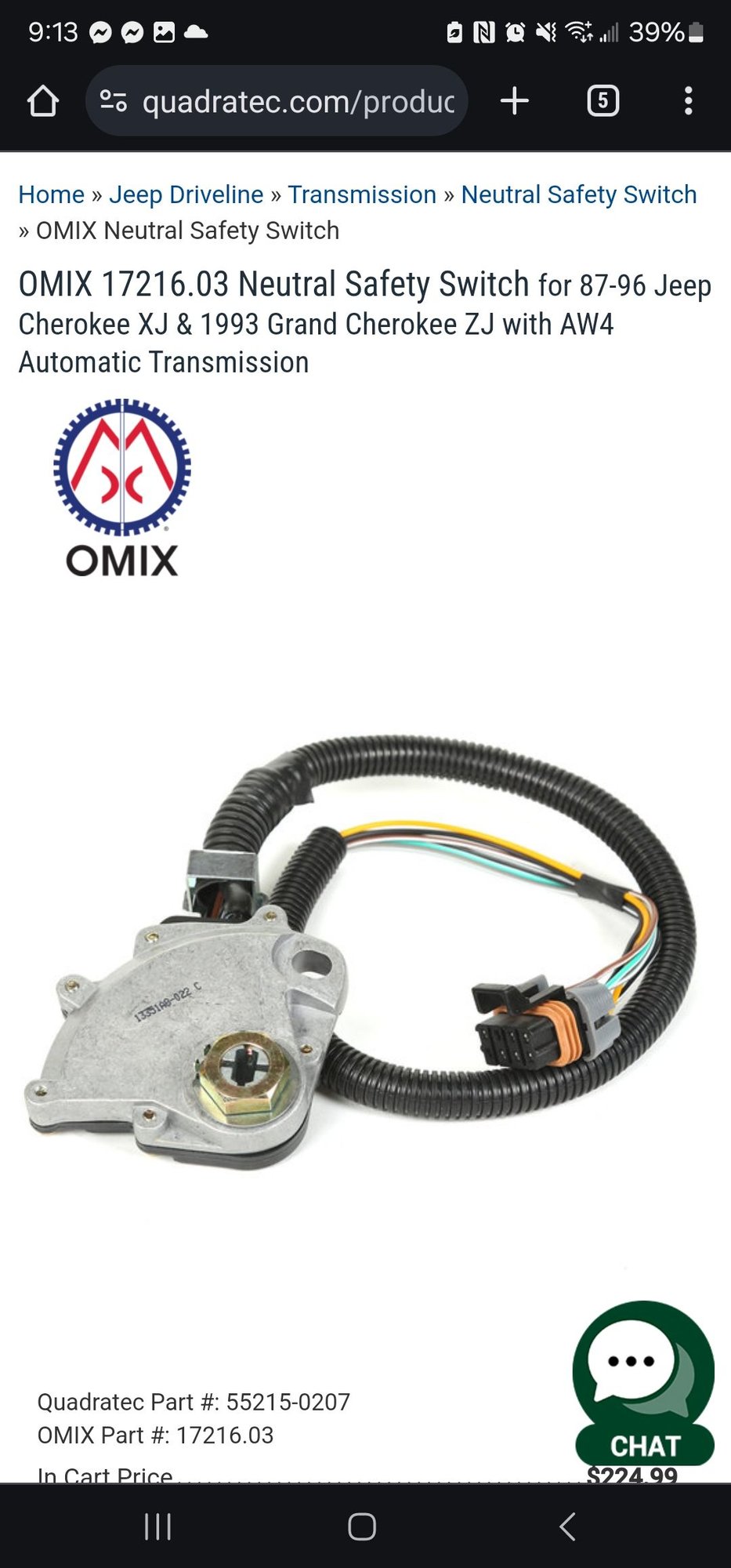

I checked a used "spare" I bought years ago of ebay (like 2007) and it's the same connector as the OMIX.
I checked a used "spare" I bought years ago of ebay (like 2007) and it's the same connector as the OMIX.
Last edited by Saudade; 04-30-2024 at 10:10 AM.
