WTB[MidAtl]: XJ Speedo Wiring Run from TC to Harness
#1
Newbie
Thread Starter
Join Date: Apr 2015
Location: Lake Norman, NC
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0L
XJ Speedo Wiring Run from TC to Harness

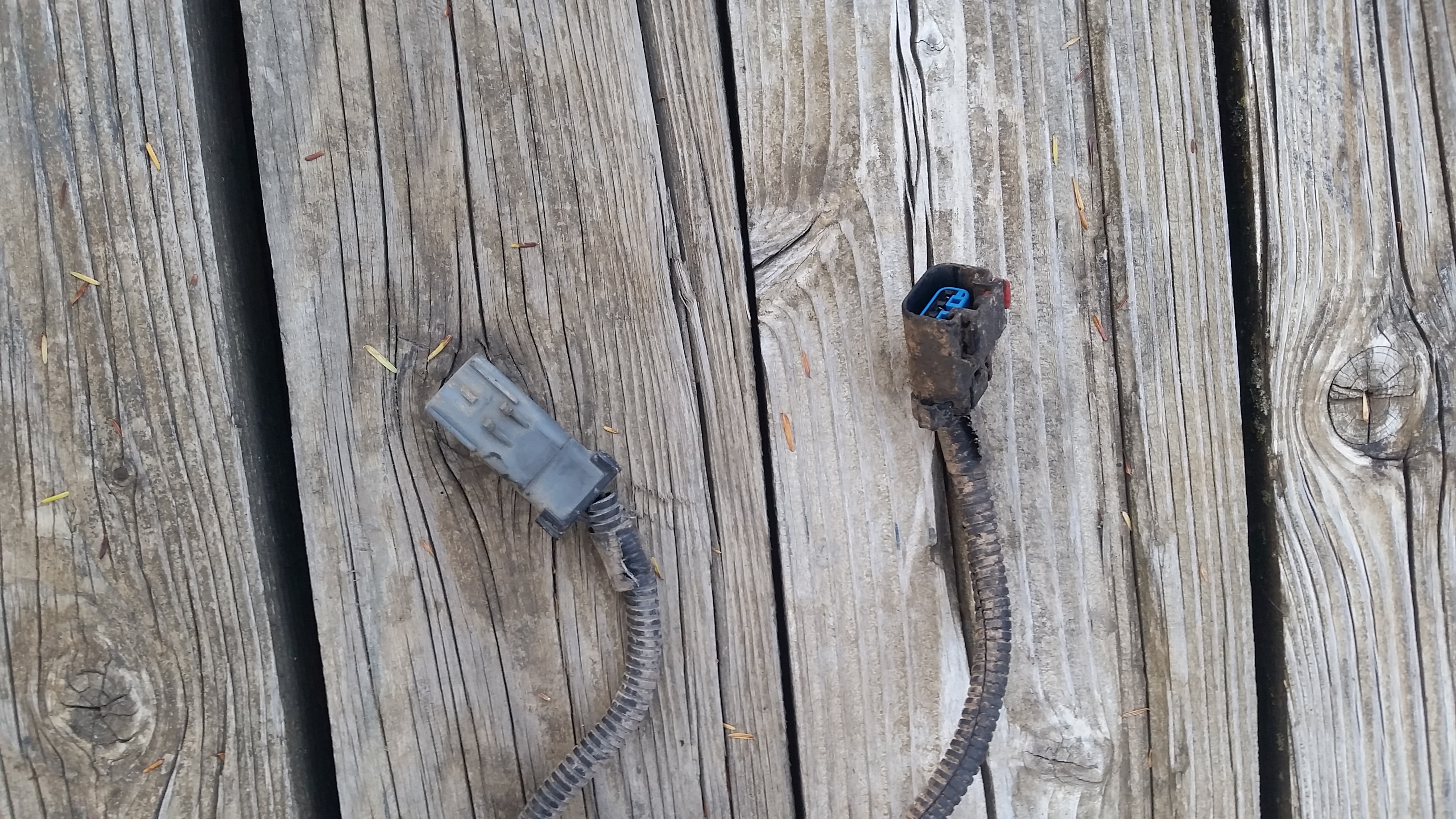

Like the title says, I'm looking for the two-wire wiring run from the speedo sensor on the transfer case (plugs into the top of the speedo pickup) to the main harness located on the passenger side of the engine bay.
On the T-case side of the run:
Seal around the plug is yellow, one wire is black/blue and the other is white/pink.
Mine got damaged and I tried to splice in a similar looking connector but I don't think I'm getting continuity. Would like to replace the whole run. It's a separate sheathed wiring run so you should be able to unplug from both ends and pull the whole thing right out.
Thanks!
On the T-case side of the run:
Seal around the plug is yellow, one wire is black/blue and the other is white/pink.
Mine got damaged and I tried to splice in a similar looking connector but I don't think I'm getting continuity. Would like to replace the whole run. It's a separate sheathed wiring run so you should be able to unplug from both ends and pull the whole thing right out.
Thanks!
#3
Newbie
Thread Starter
Join Date: Apr 2015
Location: Lake Norman, NC
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0L
From what I've seen the plug on the top of the speedo sensor will work regardless, right? In other words, I can take a speedo sensor from a 242 and bolt it right up to a 231 - which is what I did.
For more info, my 242 had 2x 2-wire plugs. One was on top of the speedo pickup and the other right below it for the dash lights. I have a SYE installed so the only space for a plug that I have is the top of the speedo pickup.
When I was doing the swap from 242 to 231, the plug on top of my speedo pickup ripped the prongs out, which is why I'm looking for another.
