Leaf spring advice.
I lifted my jeep a while back with an s10 bastard pack. It rides really rough so I am looking into removing the leaf packs and made and swapping in brand new lift leaf springs with extended shackles.
The rear of my jeep sits about 8inches from the top of the wheel to the body sheet metal. I do not have flares and I did not trim the metal underneath yet either.
My jeep sits a little bit higher in the back and needs to drop down about an inch. I need somebody with 7 inches from the top of their tire to the body metal to tell me their leaf/shackle setup so I get an idea of what to buy.

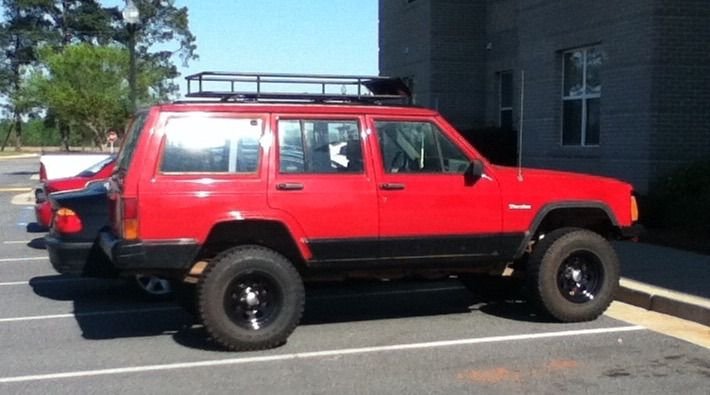

The picture shows how my jeep sits right now. Thanks
The rear of my jeep sits about 8inches from the top of the wheel to the body sheet metal. I do not have flares and I did not trim the metal underneath yet either.
My jeep sits a little bit higher in the back and needs to drop down about an inch. I need somebody with 7 inches from the top of their tire to the body metal to tell me their leaf/shackle setup so I get an idea of what to buy.
The picture shows how my jeep sits right now. Thanks
Last edited by MonacaYankee; 11-26-2015 at 08:17 PM.
#3
CF Veteran
Join Date: Jul 2012
Location: Hudson, FL
Posts: 3,683
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L Inline 6
I have a friend that did the S10 bastard pack swap. You gain about 3-3.5 inches of lift. So I hope that answers your question without me having to measure anything.
If for any reason it's shorter than you expect, you can always extend your shackles. Very easy.
If for any reason it's shorter than you expect, you can always extend your shackles. Very easy.
Last edited by thatXJguy; 11-26-2015 at 11:34 PM.
#4
CF Veteran
Thread Starter
Join Date: Mar 2010
Location: Georgia
Posts: 1,438
Likes: 0
Received 7 Likes
on
7 Posts
Year: 99 94
Model: Cherokee (XJ)
Engine: I6
You misunderstood. I want to get rid of the s10 leafs for brand new ones with shackles and end up with 3-3.5 inches of lift. I don't want to end up buying 3inch leafs and end up with 4 inches and not be able to add shackles.
#5
CF Veteran
Join Date: Jul 2012
Location: Hudson, FL
Posts: 3,683
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L Inline 6
You just have to go to a manufacturer and go buy a set now that you know how much lift you need. Now that you know a bastard pack adds about 3-3.5 inches, you can just do a little math in your head, and figure that you need whatever leaf springs will give you that with an extended shackle. Most extended shackles are 1-2 inches of lift. And some advice I can give you are that OEM Durango shackles add 1 inch of lift, so you might look for a 3 inch spring, since they will settle.
Last edited by thatXJguy; 11-27-2015 at 05:46 PM.
#6
Senior Member
Join Date: Jan 2011
Location: northside chicago
Posts: 586
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
#7
CF Veteran
Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Use a Rustys 3" full leaf/coil package includes shocks and all new hardware $438 all made in NA also. I used this base kit for my 4 1/2" lift with 1 1/2" Boomerang Shackles in rear for it and ACOS for coils.
