Rear windshield wiper wiring help

Thread Tools

Search this Thread

Old 10-02-2012, 11:34 AM
  #1
Newbie
Thread Starter

cash1234's Avatar

Join Date: Aug 2012
Location: Baltimore
Posts: 19
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Default Rear windshield wiper wiring help
I broke the stock rear wiper switch so I decided to instal an on/off/on switch instead where up would be wiper only and down would be wiper/wash. I can't figure out the wiring schematic. Any help would be appreciated.
cash1234 is offline
Reply Like
Old 10-02-2012, 11:40 AM
  #2
Junior Member

Lowrange2's Avatar

Join Date: May 2008
Location: +34° 25' 35.67", -81° 21' 12.04"
Posts: 15,016
Received 9 Likes on 7 Posts
Year: 1993
Engine: 4.0
Default
Can you post the schematic? I don't have it here.
Lowrange2 is offline
Reply Like
Old 10-03-2012, 08:02 PM
  #3
Newbie
Thread Starter

cash1234's Avatar

Join Date: Aug 2012
Location: Baltimore
Posts: 19
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Default
Originally Posted by lowrange2
Can you post the schematic? I don't have it here.

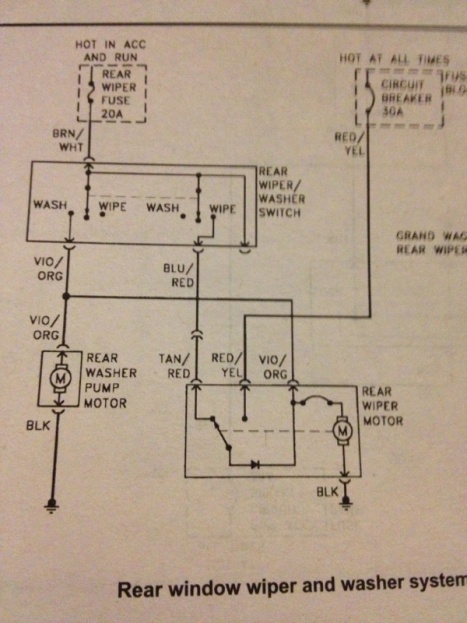

It's one of these two. I have a 2001 Cherokee but one schematic says '91 Cherokee, and the other is Grand Wagoneer. I've also posted the stock connection so you can see what wires I gave to work with. Again, I want to re-wire this to a on/off/on switch where up is wipers and down is wiper/fluid.
