Hello Jeepers!

I am planning to put a new radio in my jeep XJ and want to know where the wires go. I have done some research and have found out what most of the wires connect to but i am unsure on 3 of them

Jeep Cherokee 2000 Sport

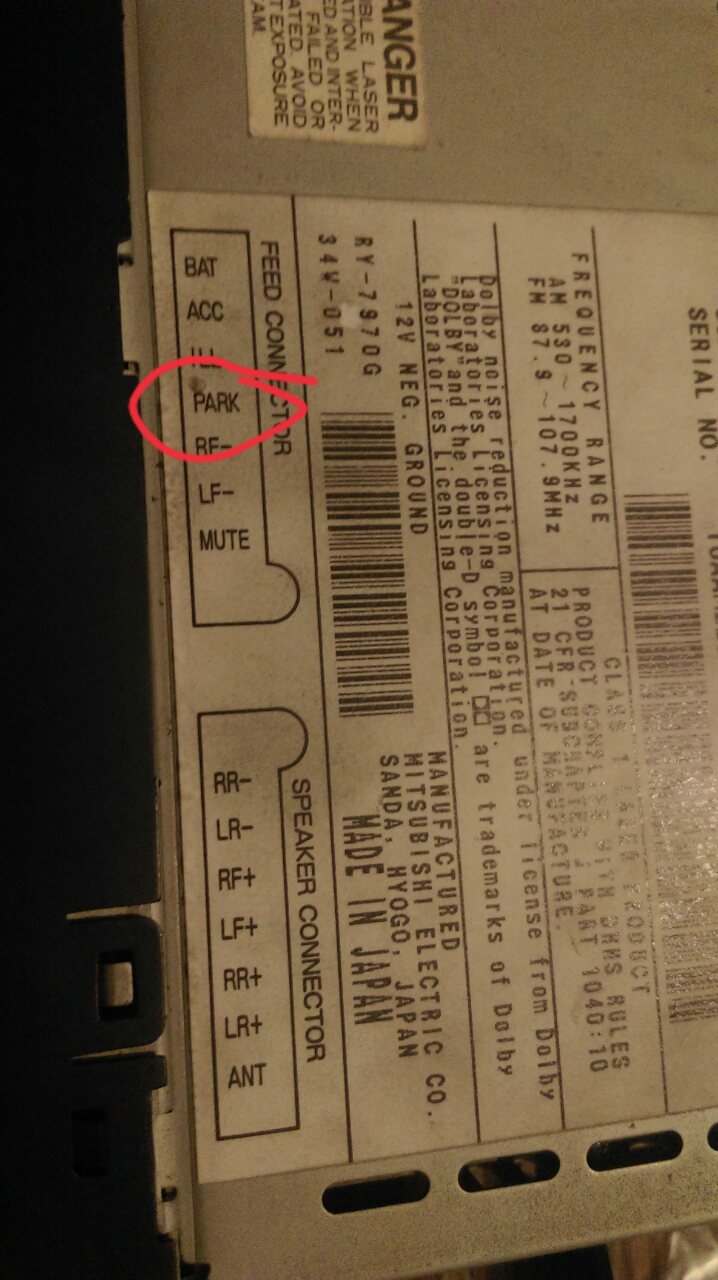

This is my wire set up:



I think i got a fair idea on the black connector and half of the grey one. I used the following link to help me..
http://www.installdr.com/installdocs...PDF/533001.asp

I am confused on the 3 farthest right wires on the grey connector



Thanks for reading! Any input will be appreciated



http://www.the12volt.com/installbay/...tail/1214.html



The link doesn't match up with the wires on my stock stereo. I did some further research and am almost ready to start linking the wires together for a aftermarket Kenwood Stereo. I don't know what the PARK wire means is this the DIMMER?



Confirm build date on drivers door sticker....then look here.....http://www.the12volt.com/installbay/...eard/Jeep.html



Are wires same color on other side of electric tape ?



Found this...MrJohnnyChambless 10 months ago
The green with red stripe and black with yellow are wires used for jeeps that have the (stock) "infinity" sound system package. They split and run to each front door and end with a connector piece that would attach to the infinity speakers connector. If your jeep doesn't have the infinity system then they are useless (unless you want to install a tweeter or equivalent)....



https://www.google.com/search?q=xj+c...cphBtw9kncM%3A
