H4 headlight upgrade

Old 12-18-2016, 01:49 PM
  #1
Newbie
Thread Starter

Join Date: Dec 2016
Posts: 1
Model: Cherokee
Default H4 headlight upgrade

I bought some aftermarket headlights they use 9003 bulbs so i removed old headlights plugged the new ones in but the new ones are so dim the turn signal lighys are brighter anyone have this problem i have a 97 cherokee sport. Need help.
Scott B is offline
Old 12-18-2016, 02:32 PM
  #2
CF Veteran

Jeepin'_Aint_EZ's Avatar

Join Date: Jan 2012
Location: Ocean County, NJ
Posts: 2,208
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

upgrade your headlight harness. And Which headlights did you get?

https://www.amazon.com/Putco-230004H.../dp/B001P29X4G
Jeepin'_Aint_EZ is offline
Old 12-19-2016, 06:57 AM
  #3
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,741
Year: 1990
Model: Comanche
Engine: 4.0
Default

cruiser54 is offline
Old 12-19-2016, 08:31 AM
  #4
CF Veteran

Fred/N0AZZ's Avatar

Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Not to repeat what has been said but a new harness like a Putco will even improve your stock headlights. The stock one was marginal to say the least when it was new.
Fred/N0AZZ is offline
Old 12-19-2016, 10:32 AM
  #5
Seasoned Member

XJGunny's Avatar

Join Date: Nov 2012
Location: NC
Posts: 401
Year: 2001
Model: Cherokee
Engine: 4.slow
Default

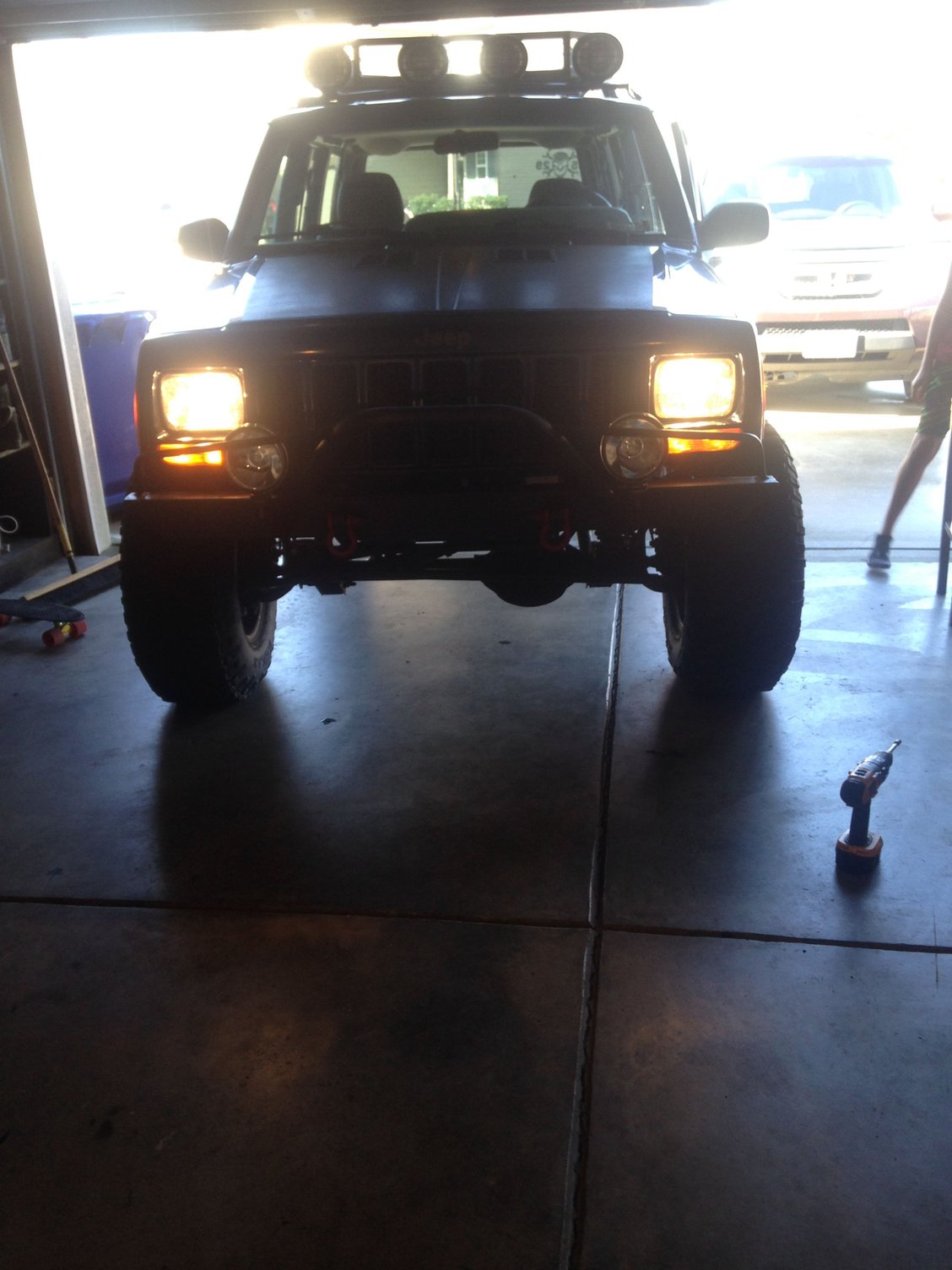

Before putco wire harness



After. Same sealed beam headlights.
XJGunny is offline
Old 12-20-2016, 09:30 AM
  #6
CF Veteran

Fred/N0AZZ's Avatar

Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Well a picture is worth a thousand words!


Thanks for posting that.
Fred/N0AZZ is offline
Old 12-20-2016, 02:58 PM
  #7
Senior Member

shooptube's Avatar

Join Date: Feb 2014
Location: Southgate, Michigan
Posts: 790
Year: 1997
Model: Cherokee
Engine: 4.6 I6
Default

Originally Posted by Fred/N0AZZ View Post
Well a picture is worth a thousand words!

Thanks for posting that.
That should be a go to picture of people asking why our Jeeps need a harness.
shooptube is offline
Old 12-21-2016, 09:35 AM
  #8
CF Veteran

Fred/N0AZZ's Avatar

Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Agreed!
Fred/N0AZZ is offline
Old 12-21-2016, 06:27 PM
  #9
Seasoned Member

XJGunny's Avatar

Join Date: Nov 2012
Location: NC
Posts: 401
Year: 2001
Model: Cherokee
Engine: 4.slow
Default

Used the putco wiring harness upgrade how to here on the forum. Glad I installed it. Light output is so much better. H4 housing/bulbs will come soon enough. Glad the pics will help too.
XJGunny is offline
Old 12-22-2016, 06:30 AM
  #10
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,741
Year: 1990
Model: Comanche
Engine: 4.0
Default

FWIW, years ago a guy on one of the Jeep forums measured the light output before and after the harness install with a lumen meter. Easy 35% improvement.
cruiser54 is offline
Old 12-22-2016, 09:51 AM
  #11
CF Veteran

Fred/N0AZZ's Avatar

Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by cruiser54 View Post
FWIW, years ago a guy on one of the Jeep forums measured the light output before and after the harness install with a lumen meter. Easy 35% improvement.



That information and above photo should be in a sticky as many times as it comes up, but I guess that only would help those who bother to look for it.
Fred/N0AZZ is offline
Old 12-22-2016, 03:32 PM
  #12
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,741
Year: 1990
Model: Comanche
Engine: 4.0
Default

Originally Posted by Fred/N0AZZ View Post
That information and above photo should be in a sticky as many times as it comes up, but I guess that only would help those who bother to look for it.
Like this?
Attached Thumbnails H4 headlight upgrade-putco-upgrade-comparison-1-.jpg
cruiser54 is offline
Old 12-29-2016, 09:14 AM
  #13
CF Veteran

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,296
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

Do you want this on Low beams? Get Follow the above links and get yourself a relay harness, Rampage housings and good 55/60w H4 Bulbs! Just do it man!:
WyoCherokee is offline
Old 01-14-2017, 09:26 AM
  #14
Member

KaMoore's Avatar

Join Date: Feb 2016
Location: Tucson, AZ
Posts: 205
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Does the Putco harness include the wires to the light switch on the steering column or just from the light relays to the bulbs?
KaMoore is offline
Old 01-14-2017, 09:29 AM
  #15
Seasoned Member

XJGunny's Avatar

Join Date: Nov 2012
Location: NC
Posts: 401
Year: 2001
Model: Cherokee
Engine: 4.slow
Default

Originally Posted by KaMoore View Post
Does the Putco harness include the wires to the light switch on the steering column or just from the light relays to the bulbs?
It's just the wiring and relays to replace the light harness up front. Nothing to replace on steering column.
XJGunny is offline
